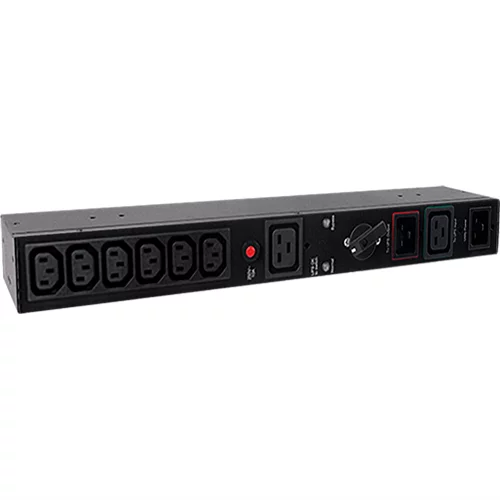

Ion 16AMP Maintenance Bypass Switch. Optl Cable for 10AMP UPS C1MA500

Overview:

Ion Maintenance Bypass Switch F-MBP16. Features:

• 3-year advanced replacement warranty*
• Compact 1U Rackmount design
• LED status indicator
• Metal housing
• Cable retaining clip
• Multiple mounting options
• Rack ears included
• Compatible with UPS up to 3kVA.

Specifications:

Output

Outlet Type: IEC C19 x 1, IEC C13 x 6
Typical Transfer Time: < 4ms
Cascading: Yes, IEC 16A Output Socket

Input

Input Voltage Range: 200 ~ 240 Vac
Rated Input Current: 16A
MBP Socket to Utility Power: IEC C20
MBP Socket to UPS Power Input: IEC C19
MBP Socket to UPS Outlet IEC: C20

Management

Normal Status: (Green Color),
Bypass Status: (Red Color) LED Indicators
Management Cable:
2 x IEC C20/C19 (1.8m) Power Cord
1 x IEC C20/C13 (1.8m) Power Cord
1 x IEC C14/C19 (1.8m) Power Cord

Physical

Form Factor: >1U Rackmount
Enclosure Construction: Metal
Colour: Black
Installation: Multi-Position Mountings, Vertical Rackmount, Horizontal Rackmount
Building Attached to Rack/Tower UPSs: Yes
Retaining Clips: Retaining Clips on the IEC Input and Output Sockets
Rackmount Ears: Yes

Physical Size

Dimensions (WxHxD) 433 x 51 x 76mm
Weight 1,3kg

Shipping Dimensions

Dimensions: (WxHxD) 245 x 66 x 500mm
Weight: 3,5kg

Environmental

Operating Temperature: 0 ~ 40 °C
Operating Relative Humidity: (Non-condensing) 0 ~ 90%
Operating Elevation: 0-10,000 feet (0-3,000 meters)
Storage Temperature: -15 ~ 45 °C
Storage Relative Humidity (Non-condensing): 0 ~ 95%
Storage Elevation: 0-50,000 feet (0-15,000 meters)

Certifications

Certifications: CE
Warranty: 3-year advanced replacement warranty*
