Overview :

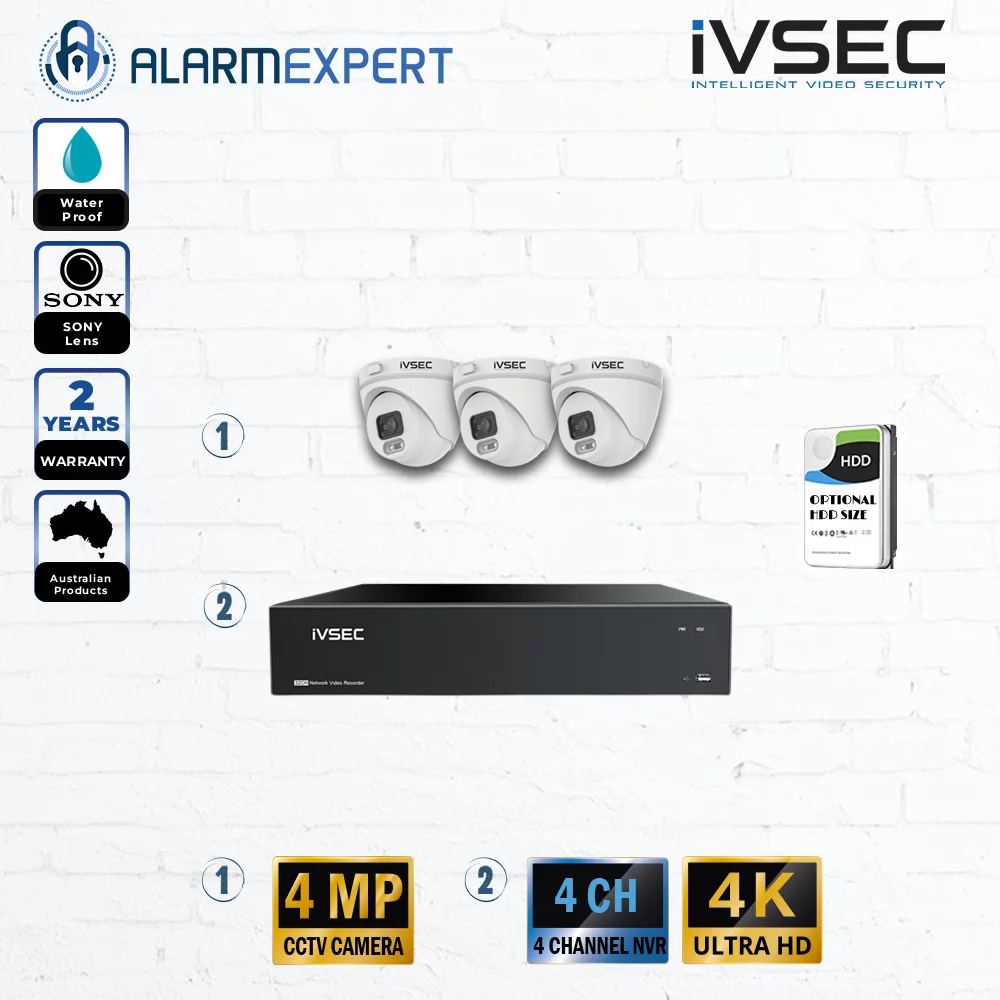

Camera : 3 x IVNC000XA
NVR :1 x IVNR004XA
Specification :
Camera :
| Camera Type | Turret |
| Image Sensor | 1/2.7” Progressive CMOS |
| Maximum Video Resolution (Megapixels) | 4 |
| Maximum Video Resolution | 2560 x 1440 |
| Lens | 2.8 mm (H.FOV: 88°) |
| Lens Type | Fixed |
| Maximum Night IR Distance (M) | 20 |
| Video Compression | H.265, H.264, MJPEG |
| ONVIF depends on firmware version | ONVIF( Profile S/G/T) 21.12 or greater, Http API |
| IP Rating | IP66 |
| Operating Environment | -10ºC to 55ºC (14ºF-131ºF) Humidity: 20%-80% RH |
| Dimensions | 100x100 mm |
| Weight (Net) | 0.22 |
| Accessories | IV2422X, IV2477X, IV2433X, IV2444X, IV2455X, IV2457X |
| Power Supply | Power over Ethernet IEEE 802.3af, DC12V |
| Power Consumption | <4W |
| Connectors | RJ-45 , DC Power Input |
| Outdoor Use | Yes |
| IP Rating | IP66 |
| Vandal Resistant | No |
| Frame Rate at Resolution | 25 |
| Day/Night Mode | Auto |
| Image Enhancement | Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Mirror, Angle Flip, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction |
| Edge Recording microSD/SDHC Card | Micro SD/SDHC Card |
| Multiple Streams (encode format) | 2 Streams |
| Audio Streaming | Yes (microphone included) |
| Protocols | TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SNMP, P2P (QR code) |
| Intelligent Video (IVS) | Smart Motion Detection, Perimeter Intrusion Detection, Line Crossing Detection, Sound Detection |
| Software | Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app (QR code) |
| Power Over Ethernet | Yes |
| Ethernet | Ethernet (10/100 Base-T) |
| In The Box | Printed quick user guide, installation template, mounting screws and plugs |
| Warranty | 12 Months Parts Warranty |
NVR :
| Maximum Channels | 4 |
| Maximum Video Resolution (Megapixels) | 8MP |
| Examples of Channels at a resolution with FPS | 50 Mbps |
| Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Video Output Resolution | 4K, HD-1080p, HD-720p, 1.3 MP, D1, VGA |
| Image Display | 1, 4 |
| Intelligent Video (Dependant On Camera) | Motion Detection, IVS -Perimeter Intrusion Detection, Face Recognition, Human & Vehicle Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection, Rare Sound Detection, Video Tampering |
| Search Method | Continuous, Scheduling, Event Triggered By IVS filtering. Snapshot Searching, Tagging footage, Time Lapse, Slice (Multiple Snapshot Thumbnail Search Per Hour), General (Indicated Timeline Seach). |
| Total Storage Potential (TB) | 10 |
| HDD Bays, Size | Bays x 1, Up to 10TB per HDD |
| Software | Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app |
| Protocols | TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SMTP, P2P (QR code) |
| Language | English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russia, Hebrew, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish, Etc. |
| Audio Streaming | Out |
| Power Over Ethernet Switch Ports | 4 up to 802.3at(30w) |
| Power Over Ethernet | Yes |
| Power Supply | DC48V/1.2A |
| Power Consumption | 5W (Without HDD) |
| Connectors | HDD: 3.5" SATA HDD Slot x 1, USB2 Female x 2, Ethernet: RJ-45 Port x 1 and 4 x PoE+ ports, HDMI, Audio out, Power Jack input, On off switch |
| Operating Environment | 10ºC to 50ºC (14ºF-122ºF) Humidity:Less than 90% RH |
| In The Box | Printed quick installation guide, Mouse, Remote control, HDD screws, Power supply. |
| Warranty | 24 months parts |
| Dimensions | 300 x 227 x 53 mm |
| Weight (kg) | 1 kg |
GLOBAL WARRANTY
- 2 Years
Cameras
- 4 MP
- 2.8 mm
- FIXED
- Up to 20m
- 3 CAMERAS
- H.265, H.264, MJPEG
- RJ-45 , DC Power Input
- 12 VDC/PoE (802.3af)
- <4W
- 0.22 kg (Net)
- Outdoor
CCTV CAMERA
- TURRET
- IP CAMERA
- ACTIVE DETERRENCE
- IP66
NVR
- HDD not Included
- up to 10 TB capacity for each disk
- Bays x 1, Up to 10TB per HDD
- Up to 8 MP
- 50 Mbps
BRAND
- IVSEC
DEVICE TYPE
- Kits
GLOBAL
- 100×100 mm
CCTV NVR
- DC 48V/1.2A
- 5W (Without HDD)
- 300 x 227 x 53 mm
- 1 kg
