Overview:

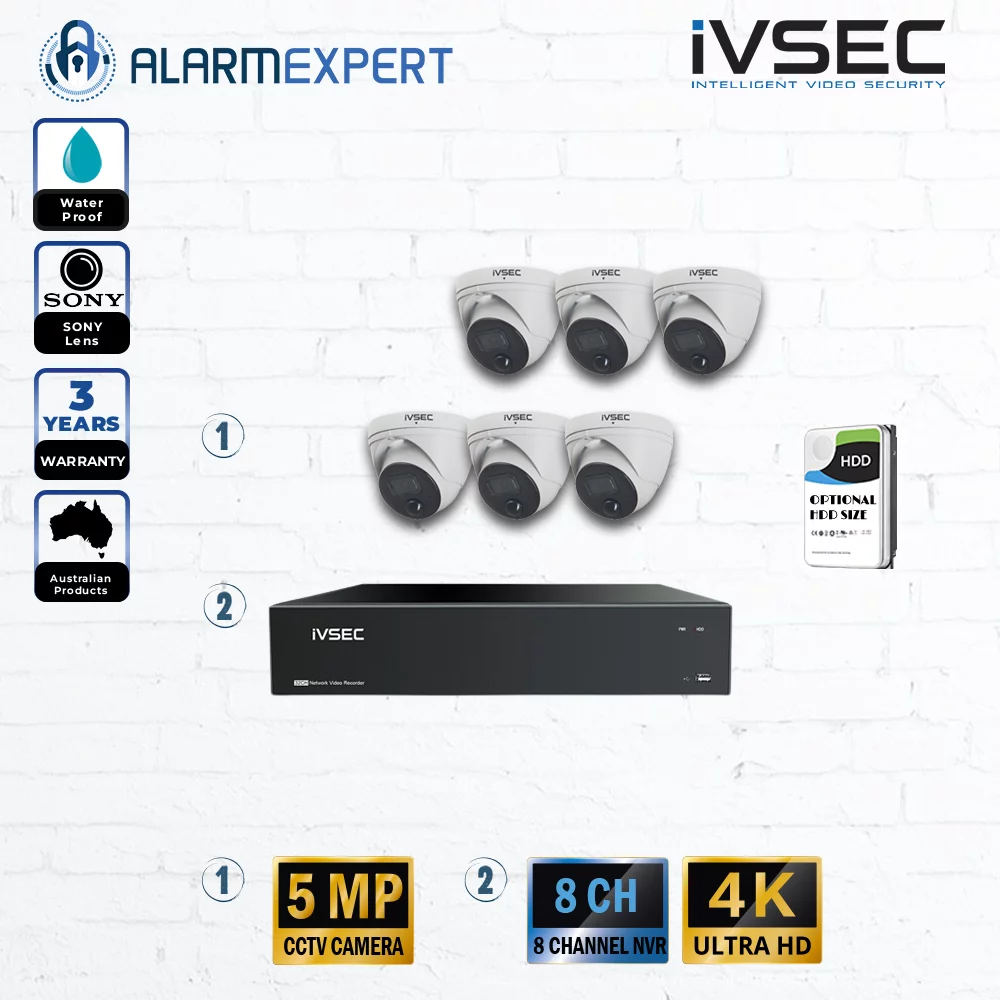

This Kit Includes:
Specification:
| Camera |
| Camera Type | Dome |
| Image Sensor | 1/2.7” Progressive CMOS |
| Maximum Video Resolution (Megapixels) | 5 |
| Maximum Video Resolution | 2592 x 1944 |
| Lens | 2.8 mm (H.FOV: 99°) |
| Lens Type | Fixed |
| Maximum Night IR Distance (M) | 30 |
| Image clarity | 3.5 |
| Connectors | RJ-45 |
| Video Compression | H.265, H.264 |
| ONVIF (depends on firmware version) | ONVIF( Profile S/G/T) |
| Operating Environment | -30 to +55°C/less than ≤ 95% RH |
| Dimensions | 100×100 mm |
| Weight (Net) | 0.4 |
| Accessories | IV2422X, IV2433X, IV2444X, IV2455X |
| Power Supply | Power over Ethernet IEEE 802.3af, DC12V |
| Power Consumption | <7W |
| Connectors (web) | RJ-45, DC Power Input |
| Outdoor Use | Yes |
| IP Rating | IP66 |
| Vandal Resistant | Yes |
| Frame Rate at Resolution | 20 |
| Day/Night Mode | Auto |
| Image Enhancement | Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue |
| Edge Recording slot microSD/SDHC Card | Yes |
| Video Compression | H.265, H.264 (3 streams) |
| Protocols | TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SNMP, P2P (QR code) |
| Software | Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app |
| Power Over Ethernet | Yes |
| Ethernet | Ethernet (10/100 Base-T) |
| UPNP | Yes |
| In The Box | Free Software available from FAQ, Printed quick user guide, installation template, mounting screws and plugs |
| Warranty | 3 Year Parts & Labour Warranty |
| Weight (Packaged) | 0.55 |
| NVR |
| Maximum Channels | 8 |
| Maximum Video Resolution (Megapixels) | 12MP |
| Examples of Channels at a resolution with FPS | 128 Mbps |
| Video Compression | H.264, H.265 |
| Video Output Resolution | 4K, HD-1080p, HD-720p, 1.3 MP, D1, VGA |
| Image Display | 1, 4, 6, 8, 9 |
| Search Method | Continuous, Scheduling, Event-Triggered ( PIR, IVS, Motion, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Face Detection, Cross Counting) |
| Total Storage Potential (TB) | 16 |
| HDD Bays, Size | Bays x 1, Up to 16TB per HDD |
| Software | Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app |
| Protocols | TCP, HTTP, HTTPS, DHCP, DDNS, NTP, SMTP, PPPOE, RTSP, UPnP, ONVIF, P2P, QR Code |
| Language | English, French, Dutch, German, Italian, Polish, Portuguese, Spanish, Thai, Turkish, Hungar Ian, Simplified Chinese, Etc. |
| Audio Streaming | Out |
| Power Over Ethernet Switch Ports | 8 up to 802.3at(30w) |
| Power Over Ethernet | Yes |
| Power Supply | DC48V/2A |
| Power Consumption | 8W (Without HDD) |
| Connectors | HDD: 3.5” SATA HDD Slot x 1, USB2 Female x 2, USB3 Female x 1, Gigabit Ethernet: RJ-45 Port x 1 and 8 x PoE+ ports, HDMI and VGA, Alarm ports 8 in and one out, Audio out, Power Jack input, On-off switch |
| Operating Environment | 5ºC to 45ºC (41ºF-113ºF) Humidity: 20%-80% RH |
| In The Box | Printed quick installation guide, Mouse, Remote control, HDD screws, Power supply. |
| Warranty | 24 months parts |
| Dimensions | 300 x 227 x 53 mm |
| Weight (kg) | 1 kg |
