Overview:

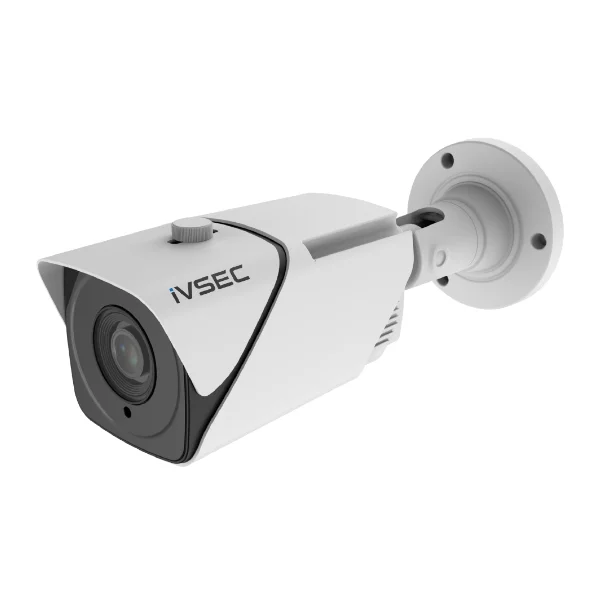

NC528XD Security Camera
PTZ (Pan, Tilt and Zoom) camera with motorised 2.8-12mm lens enabling more control via the mobile app or set it on a pre-set patrol. Full colour at night. Improvements made to the image sensor -1/1.8 enlarged image sensor enables more light to be gathered. Together with built-in warm-light LEDS, this creates an excellent full-colour image. Experience technological leaps in AI analytics/intelligent video implemented in this camera, such as face and licence plate recognition.
Features:
CRYSTAL CLEAR CLARITY
The high resolution ensures every detail is captured precisely for the ultimate surveillance experience.
CAPTURE THE MOMENT
Incredible speed, providing you with smooth and seamless footage. You can take advantage of every moment.
CATER TO YOUR SURVEILLANCE NEEDS
The device configuration tool enables seamless maintenance and allows searching the network for IVSEC devices.

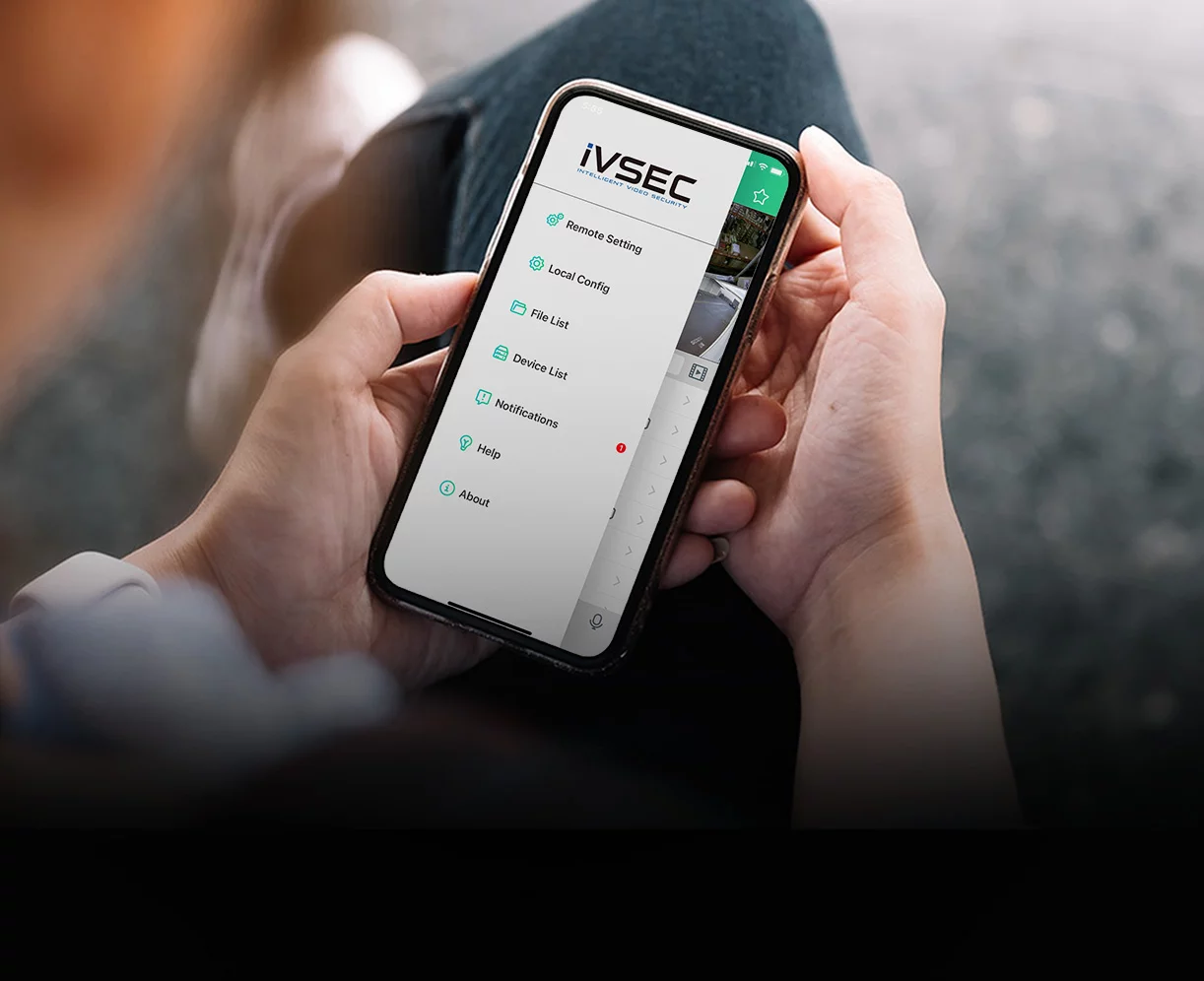

MONITOR & UPDATE REMOTELY
View live camera footage, receive alerts on the go, schedule alarms and more with the iVSEC App.
FULL VIVID COLOUR
Advanced Features with Vibrant Color and High-Quality Imaging at Night.
DETER, DETECT, AND DEFEND
Built protection Siren, Flashing Lights, and Scheduling Assistant for Enhanced Security. Advanced Deterrent.
VALUE AI
Could you complete protection with accurate and targeted alerts to potential threats & reduce false alarms?
TWO-WAY AUDIO
Allows for remote communication between the camera and a connected device.
SENSOR & SCHEDULE LIGHT
Motion-triggered bright night vision provides colour even in dark conditions.

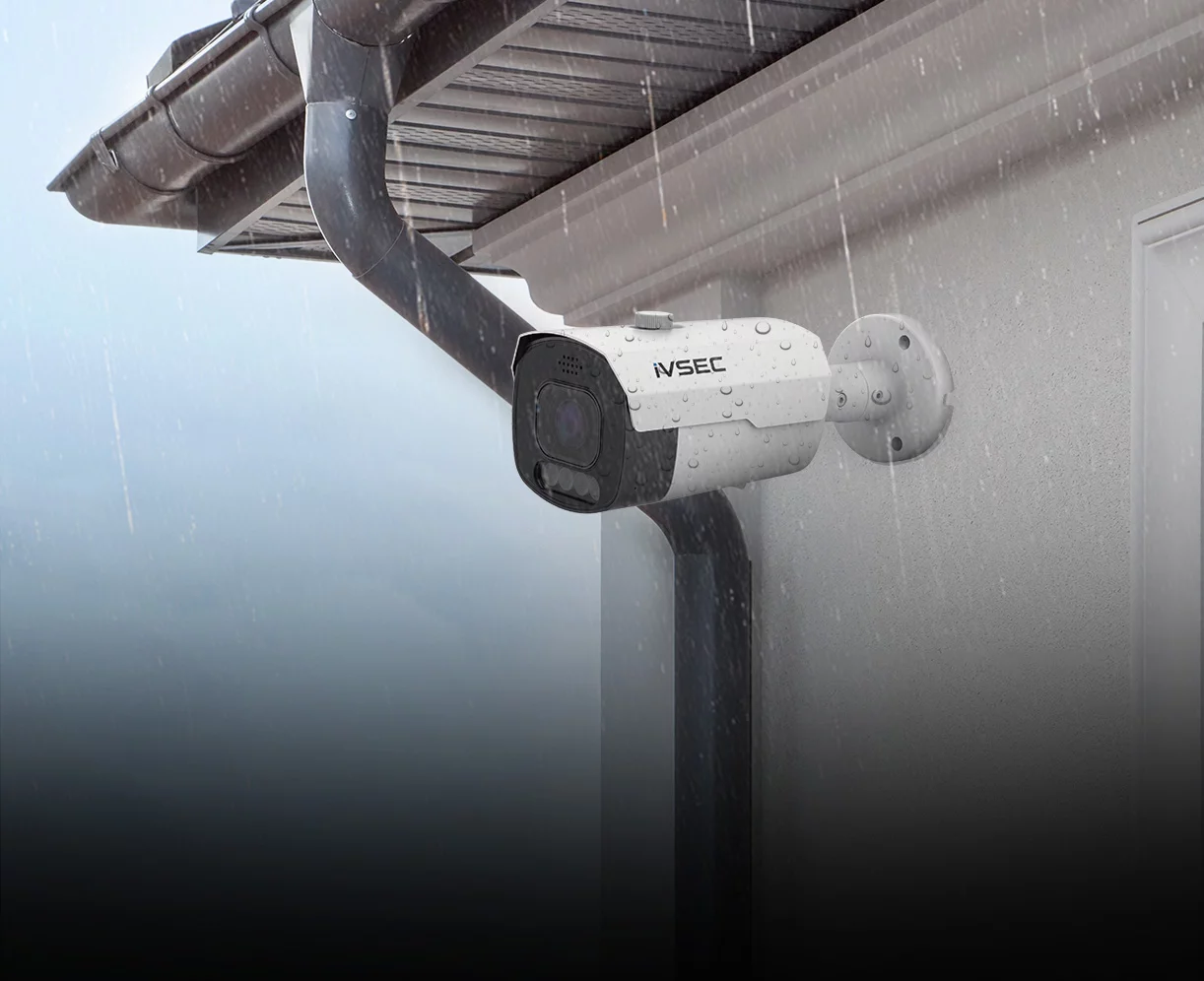

MADE TO WITHSTAND THE ELEMENTS
With a metal casing, IP66 provides weatherproof monitoring & incredible durability.
VIDEO MANAGEMENT SOFTWARE
Aggregate NVR/IP cameras easily. Pool viewable camera channels & feeds at numerous locations.

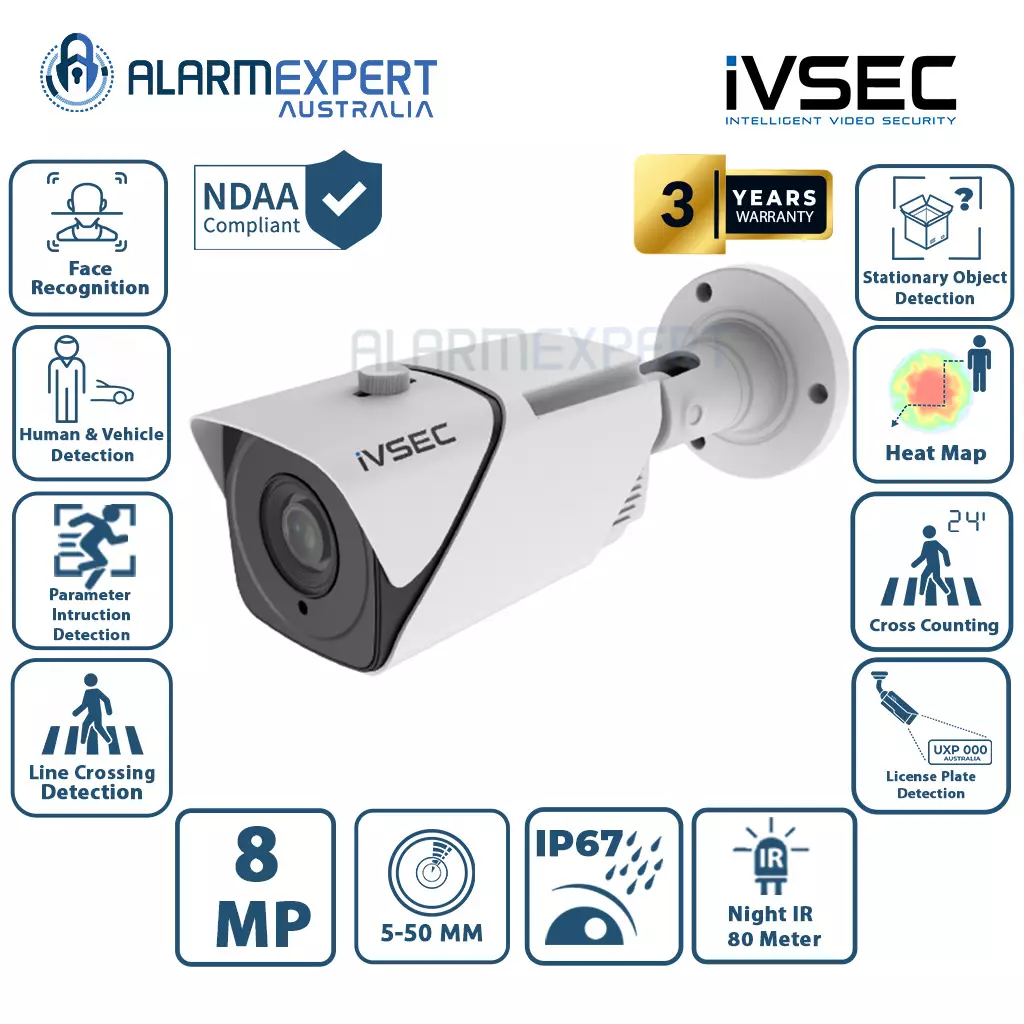

Specifications |
| Camera Type | Bullet |
| Image Sensor | SONY 1/2.8″ Progressive CMOS |
| Maximum Video Resolution (Megapixels) | 8 |
| Maximum Video Resolution | 3840 x 2160 |
| Lens | 5-50 mm (H.FOV: 7 to 49°) |
| Lens Type | Motorised Zoom |
| Maximum Night IR Distance (M) | 80 |
| Video Compression | H.265+, H.265, H.264+, H.264, MJPEG |
| ONVIF depends on firmware version | ONVIF( Profile S/G/T) 21.12 or more significant, Http API |
| IP Rating | IP67 |
| Operating Environment | -35ºC to 60ºC (31ºF-140ºF) Humidity: 20%-95% RH |
| Dimensions | Ø242 X 87.4mm |
| Weight (Net) | 1.427 |
| Accessories | IV2422X, IV2490X |
| Power Supply | Power over Ethernet IEEE 802.3af, DC12V |
| Power Consumption | <10W |
| Connectors | RJ-45 , DC Power Input, Analog Video Output, Audio In, Audio Out, Alarm in or out *4, Reset Button |
| Outdoor Use | Yes |
| Vandal Resistant | Yes |
| Frame Rate at Resolution | 25 |
| Day/Night Mode | Auto |
| LED Types | IR |
| Image Enhancement | SMART IR, Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Mirror, Angle Flip, Corridor Mode, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction |
| Edge Recording microSD/SDHC Card | Micro SD/SDHC Card |
| Multiple Streams (encode format) | 3 Streams |
| Audio Streaming | Yes – input connector for external mic |
| Protocols | TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SNMP, P2P (QR code) |
| Intelligent Video (IVS) | Face Recognition, Human&Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Cross Counting, Stationary Object Detection, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection, Rare Sound Detection |
| Cloud option (camera only) | Dropbox |
| Software | Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app (QR code) |
| Power Over Ethernet | Yes |
| Ethernet | Ethernet (10/100 Base-T) |
| In The Box | Free Software available (ivsecurity.com.au/support/software), Printed quick user guide, installation template, mounting screws and plugs |
| Warranty | 3 Year Warranty |
