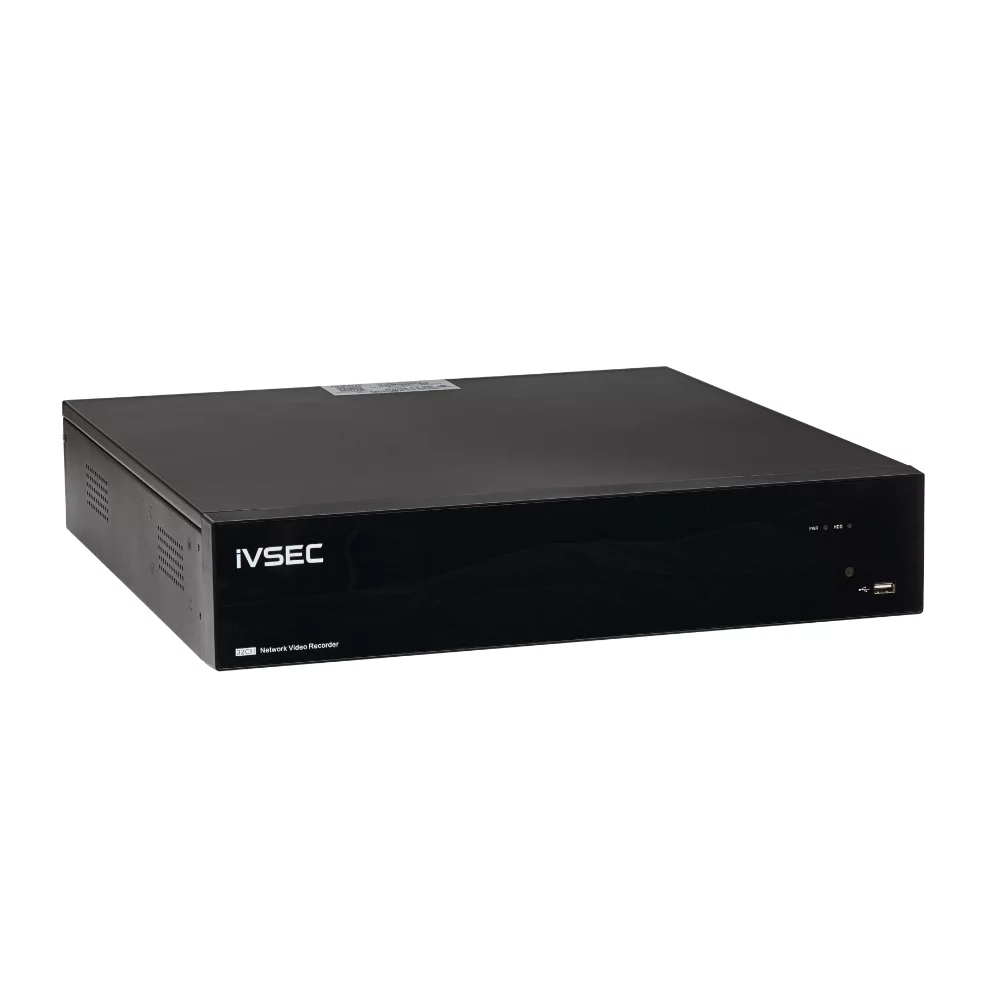

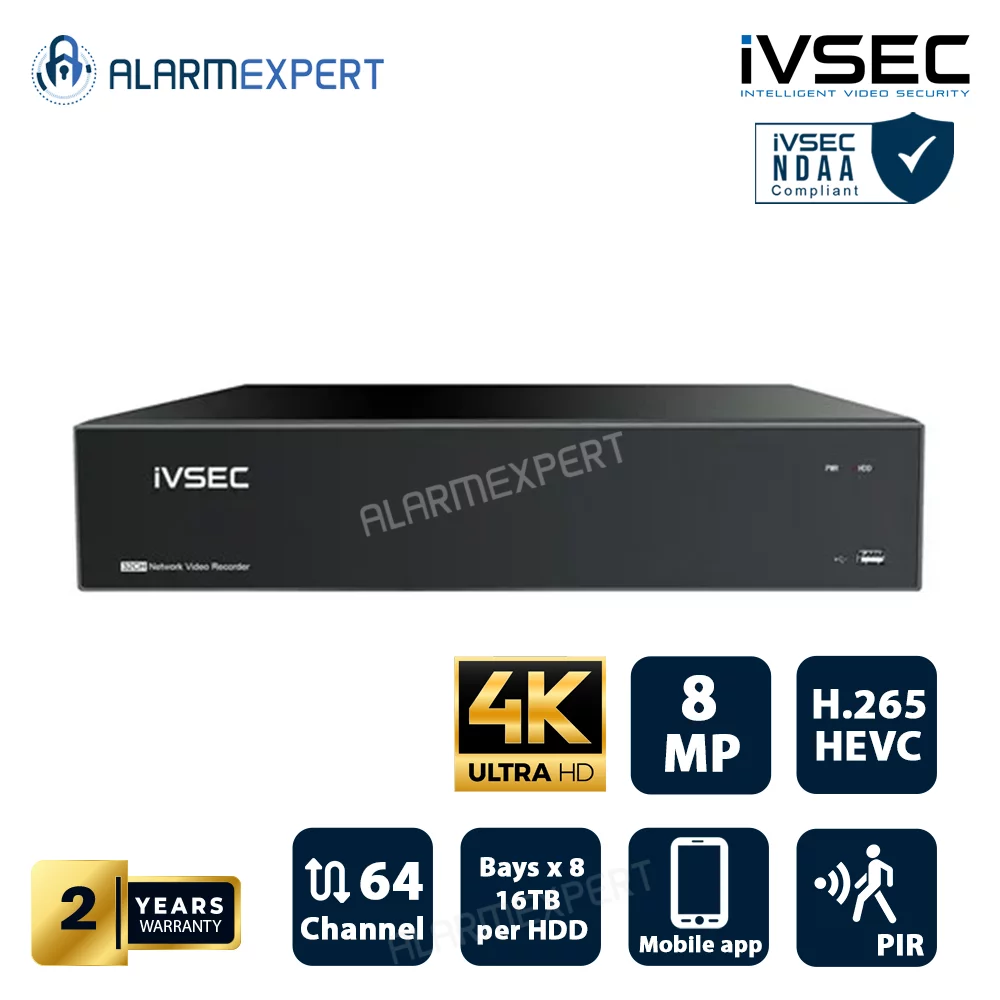

IVSEC IVNR564XA NVR 64 Channels, 32 POE+ Ports, 8 Bays, H265 , 4K HDMI
Out of stock
Exc. GST
$1,573.95
Inc. GST
$1,731.35
Eligible Coupon
- IVNR564XA
- CCTV, BRANDS
- Click Here
Overview:
Features:
- Plug and Play
- ONVIF Profile S/G/T
- Powerful H.264, H.265 Compression
- Easy-to-use Search Methods
- Remote Control.
Specification |
| Maximum Channels | 64 |
| Maximum Video Resolution (Megapixels) | 8MP |
| Examples of Channels at a resolution with FPS | 640 Mbps |
| Video Compression | H.264, H.265 |
| Video Output Resolution | 4K, HD-1080p, HD-720p, 1.3 MP, D1, VGA |
| Image Display | 1/4/6/8/9/10/13/14/16/17/19/22/25/32/36/64 |
| Search Method | Continuous, Scheduling, Event-Triggered ( PIR, IVS, Motion, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Face Detection, Cross Counting) |
| Total Storage Potential (TB) | 128 (minimum 4 HDD) |
| HDD Bays, Size | Bays x 8, Up to 16TB per HDD |
| Software | Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app |
| Protocols | TCP, HTTP, HTTPS, DHCP, DDNS, NTP, SMTP, PPPOE, RTSP, UPnP, ONVIF, P2P, QR Code |
| Language | English, French, Dutch, German, Italian, Polish, Portuguese, Spanish, Thai, Turkish, Hungarian, Simplified Chinese, Etc. |
| Audio Streaming | Two Way |
| Power Over Ethernet Switch Ports | 32 up to 802.3at(30w) |
| Power Over Ethernet | Yes |
| Power Supply | Internal |
| Power Consumption | 17.5 W （Without HDD） |

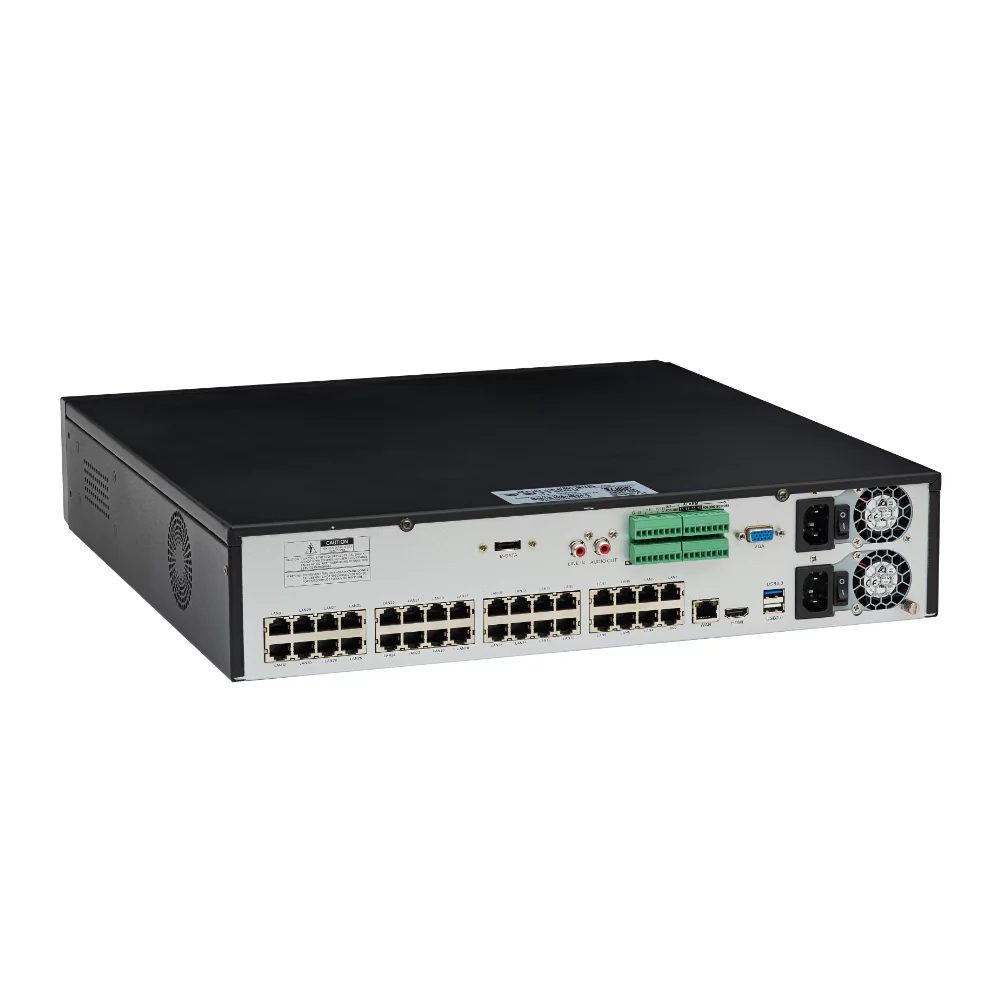

| Connectors | HDD: 3.5″ SATA HDD Slot x 8, USB3 Female x1, USB2 Female x 2, Gigabit Ethernet: RJ-45 Port x 1 and 32 x PoE+ ports, HDMI and VGA, e-Sata x1, Alarm ports 16 in and four out, RS485, Audio in and out, Power input x2, On-off switch |
| Operating Environment | 5ºC to 45ºC (41ºF-113ºF) Humidity: 20%-80% RH |
| In The Box | Printed quick installation guide, Mouse, Remote control, HDD screws, Power supply cable. |
| Warranty | 24 months parts |
| Dimensions | 440 x 460 x 89mm |
| Weight (kg) | 7.56kg |
