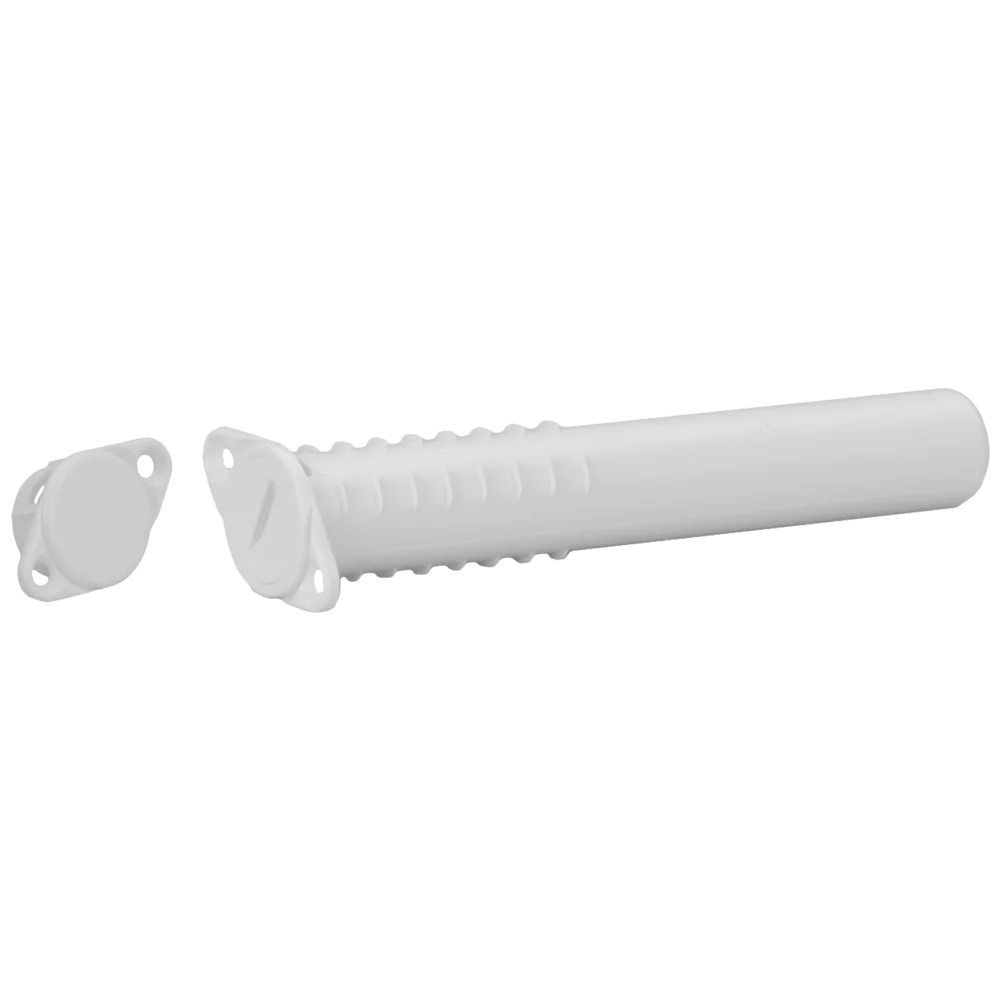

Bosch Radion Wireless Flush Mount Door/Window Contact Reed RFDW-RM
Overview:
Radion wireless from Bosch provides the range, scalability and exceptional battery life required to ensure reliable performance and superior quality. Advanced diagnostics and multiple device enrollment options make installation and maintenance simple and cost effective. With a complete line of peripherals, RADION provides the flexibility for virtually any application requirement.
Features:
- Self-contained transmitter with magnetic reed switch contact
- Concealed, recessed mounting indoors or windows for unobtrusive security
- Operational up to 5 years using a single user-replaceable AAA Lithium battery
- Supervised for low-battery and cover-tamper conditions
Specifications:
Properties
|
Transmitter dimensions |
15.4 mm x 104.7 mm (0.60 in x 4.2 in) |
|
Magnet dimensions |
22 mm x 28 mm x 15 mm (0.87 in x 1.10 in x 0.59 in) |
Power
|
Power/voltage |
1.5 VDC |
|
Battery type |
AAA Lithium |
|
Battery life |
Up to 5 years |
Environmental considerations
|
Temperature |
Functional range: -10ﾟC to +49ﾟ (+14ﾟF to +120ﾟF) UL only: 0ﾟC to +49ﾟC (+32ﾟF to +120ﾟF) EN 50130-5 Class II only: -10ﾟC to 40ﾟC (+14ﾟF to +104ﾟF |
|
Environment |
Complies with EN50130-5 Class II |
Compatibility:
- RF3212E Receiver
- Radion SD12 bus compatible receiver
- Solution Ultima 880
- Solution 16i
- Solution 16Plus
- Solution 64
- Solution 144
- Solution 6000
- Solution 3000
