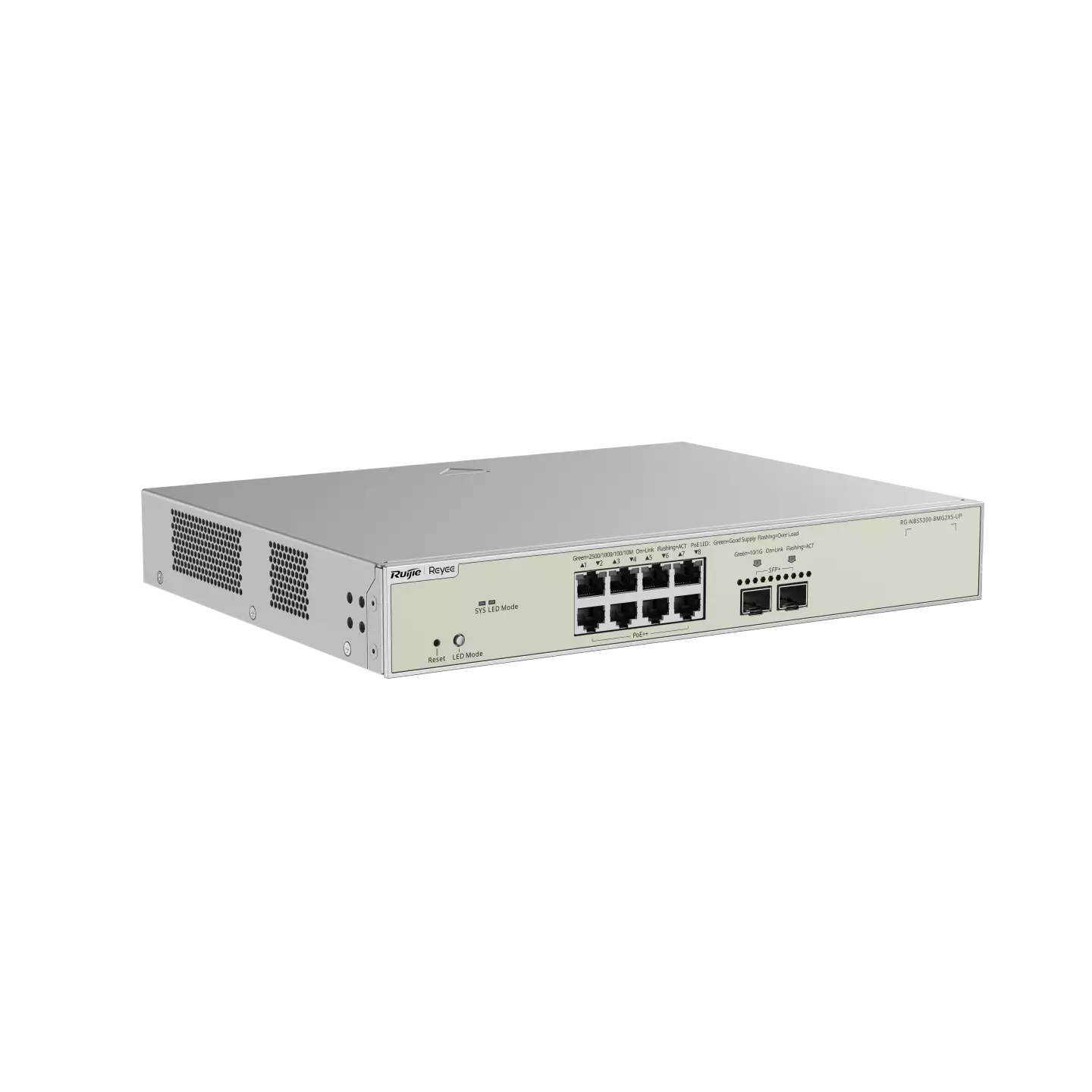

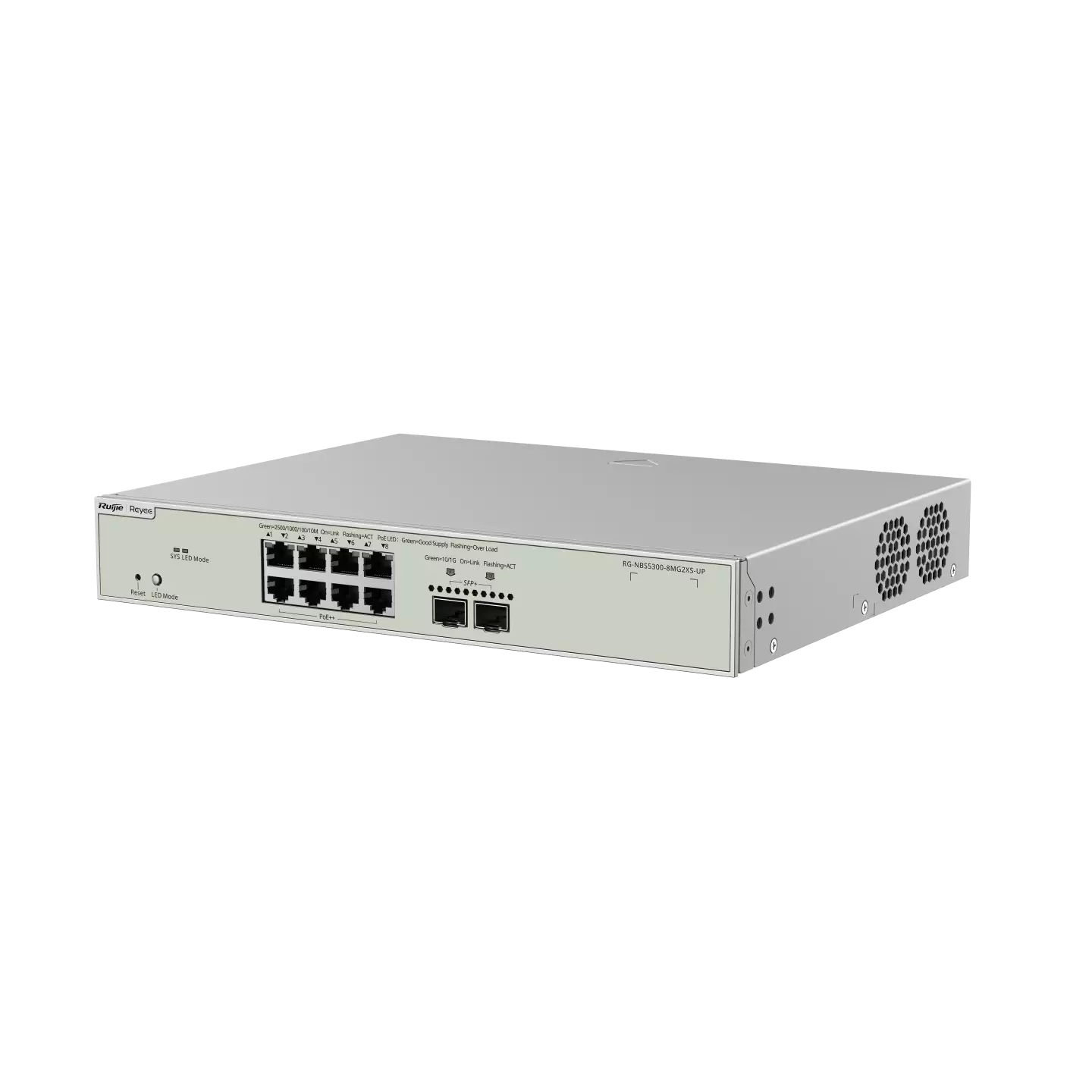

Ruijie 10 Ports Muti-Gigabit Layer 3 Managed Switch with 8 PoE++ Ports, 2 SFP+ Uplink Ports RG-NBS5300-8MG2XS-UP
Chat with us now to check the stock.
Exc. GST
$1,269.48
Inc. GST
$1,396.43
Eligible Coupon
- RG-NBS5300-8MG2XS-UP
- BRANDS, NETWORKING
Ruijie 10 Ports Muti-Gigabit Layer 3 Managed Switch with 8 PoE++ Ports, 2 SFP+ Uplink Ports - RG-NBS5300-8MG2XS-UP
Features:

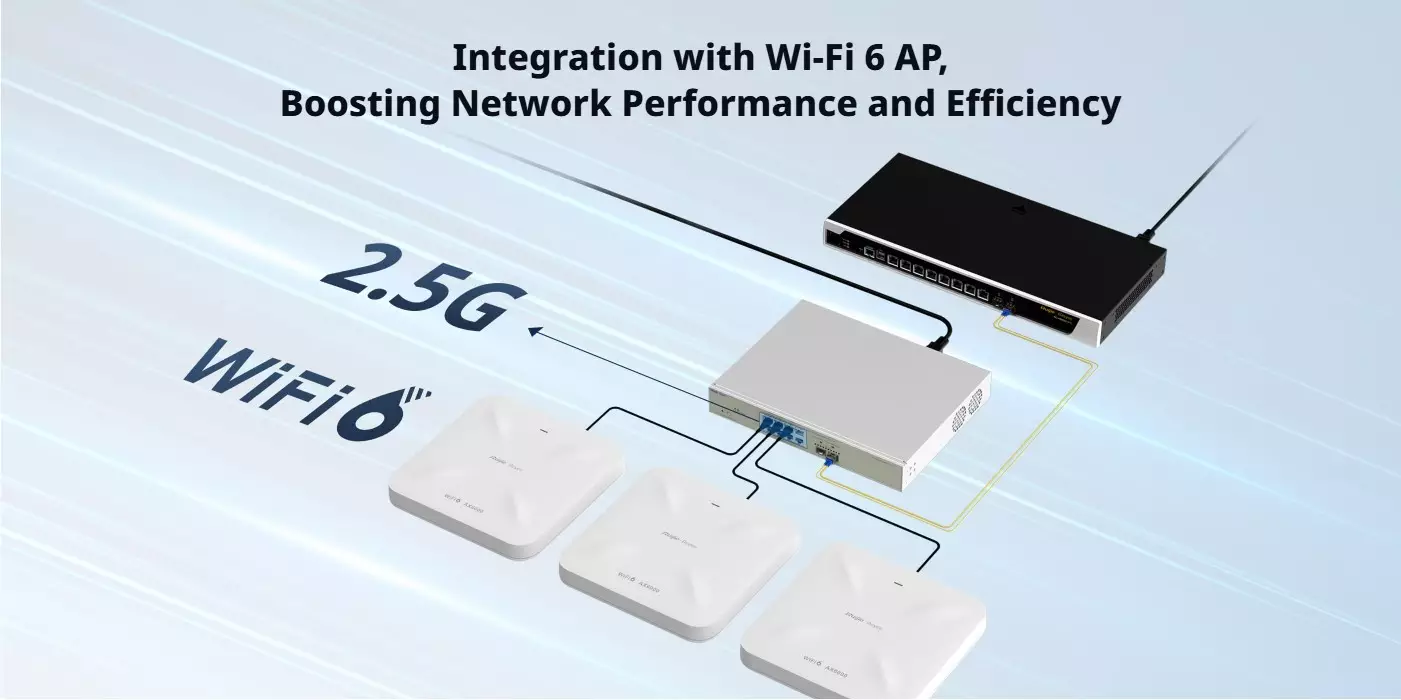

- 2.5 Gbps ports smash the gigabit barrier and unlock the full potential of WiFi 6 APs.
- 802.3bt/at/af-compliant PoE++ ports with a total power supply of 370W.
- IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication.
- Lifetime management on Ruijie Cloud at anytime anywhere.
Specifications:
| Model | RG-NBS5300-8MG2XS-UP | |
Hardware Specifications |
||

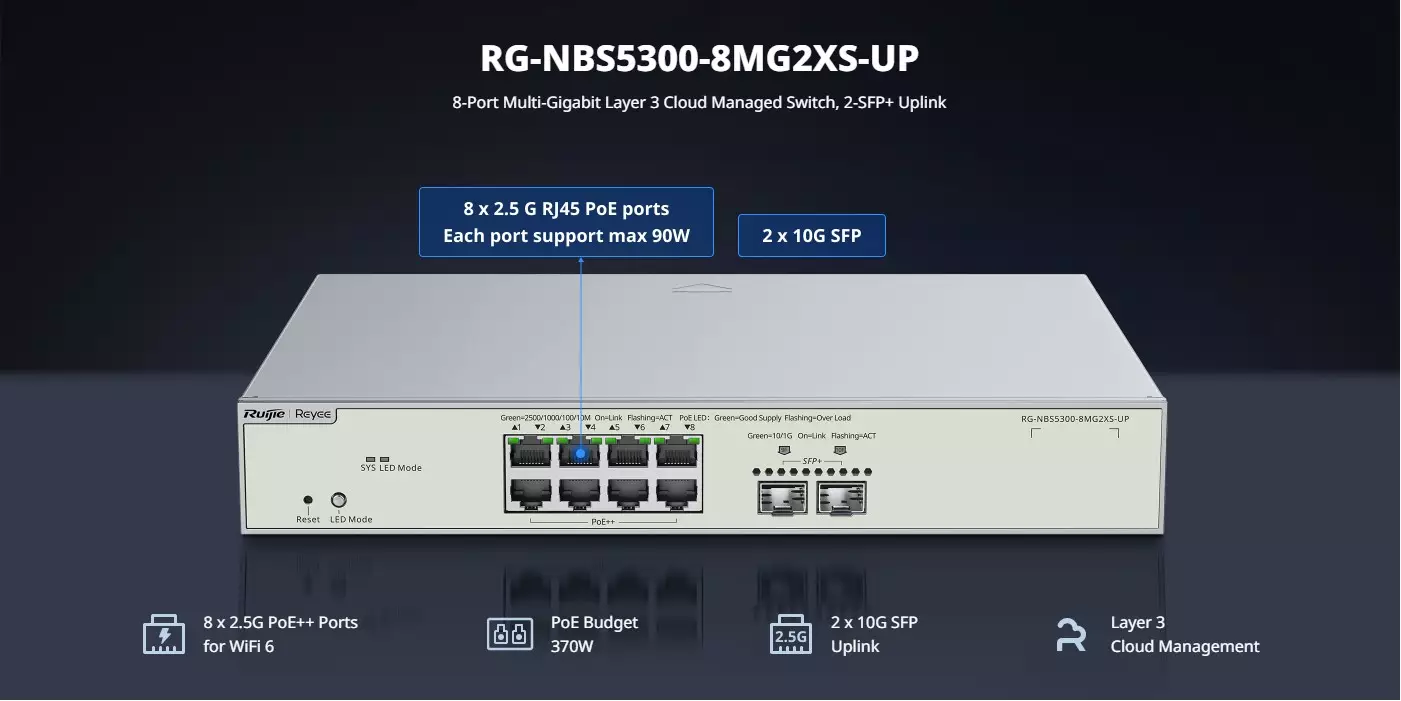

| Port | Total Number of RJ45 Ports | 8 |
| Total Number of Optical Ports | 2 | |
| Number of 10GE SFP+ ports | 2 | |
| Number of 2.5GE RJ45 ports | 8 | |
| POE | Number of PoE/PoE+ out ports | 8 |
| Number of PoE/PoE+/PoE++ out ports | 8 | |
| PoE budget | 370W | |
| PoE power pins | 1 2- 7 8-，3 6+ 4 5+ | |
| System Specifications | CPU | MAC chip with a built-in single-core CPU, 800MHz |
| RAM | 512MB | |
| Flash memory | 256MB | |
| Recommended camera limit | 200W H265:350 400W H265:170 |
|
| Forwarding rate | 58.72Mpps | |
| Switching capacity | 80Gbps | |
| Maximum number of VLANs | 4094 | |
| Maximum number of MAC address entries | 16000 | |
| Maximum number of ARP entries | 2000 | |
| Routing table capacity (main unit routing) | 6000 | |
| Maximum number of IPv4 static routes | 500 | |
| Routing table capacity (network routing) | 128 | |
| Maximum number of IPv6 static routes | 128 | |
| Maximum number of ACEs | In-1900 Out-0 |
|
| Number of VCS members | 2 | |
| Power | Power input | Rated voltage range: 100-240V~ Maximum voltage range: 90-264V~ Frequency: 50/60Hz Rated current: 6A |
| Maximum power consumption | 450W | |
| Power output | Vout=54V(7.6A),P=409W | |
| Input power supply | Single fixed power supply | |
| FAN | Fan | 2 |
| Fan speed adjustment | Hardware-based adjustment | |
| Heat dissipation | 1,539 BTU/hr(220V/50Hz) | |
| Acoustic noise | <40dB (when the device works normally) | |
| Button | Reset button | Yes |
| EMC | EMC | EN 55032:2015+AC:2016 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 55035:2017 ETSI EN 300 386 V2.1.1 (2016-07) |
| Safety Compliance | Safety compliance | IEC 62368-1 |
| Certification | CE, FCC | CE;FCC |
| Mounting | Mounting | Rack installation |
| Casing | Casing | Metal |
| Cable Hot- Swappable | Hot swapping of cables | Supported by all ports |
| Mean Time Between Failure (MTBF) | MTBF | >400KH |
| Warranty | Warranty Card | 5 |
| EEE | EEE | Yes |
| Environment and Reliability | Operating temperature | 0 to 50°C |
| Storage temperature | -40 to 70ºC | |
| Operating humidity | 10% to 90% RH(non-condensing) | |
| Storage humidity | 5% to 95% RH(non-condensing) | |
| Operating altitude | -500~5000M | |
| ESD protection | Air Discharge: 8kV Contact Discharge: 6kV | |
| Surge protection | Common Mode 6kV | |
| Surge protection | Common Mode 6kV Differential mode 6kV | |
| Package Contents | Dimensions (W x D x H) | 300mm x 233mm x 43.6mm |
| Weight | 2.5 kg | |
| Shipping weight | 3.25Kg | |
| Rack-mount bracket | 2 | |
| Screw | M3 Screw*8 | |
| User Manual | 1 | |
| Rubber pad | 4 | |
| Input power supply | Single fixed power supply | |
| Warranty Card | 1 | |
L2 |
||
| Jumbo Frame | Jumbo frame length (MTU) | 9216 Bytes(Per-port MTU) |
| Port | Port flow control | Yes |
| PoE watchdog | Yes | |
| Port isolation | Yes | |
| EEE | Yes | |
| Cable Test | Yes | |

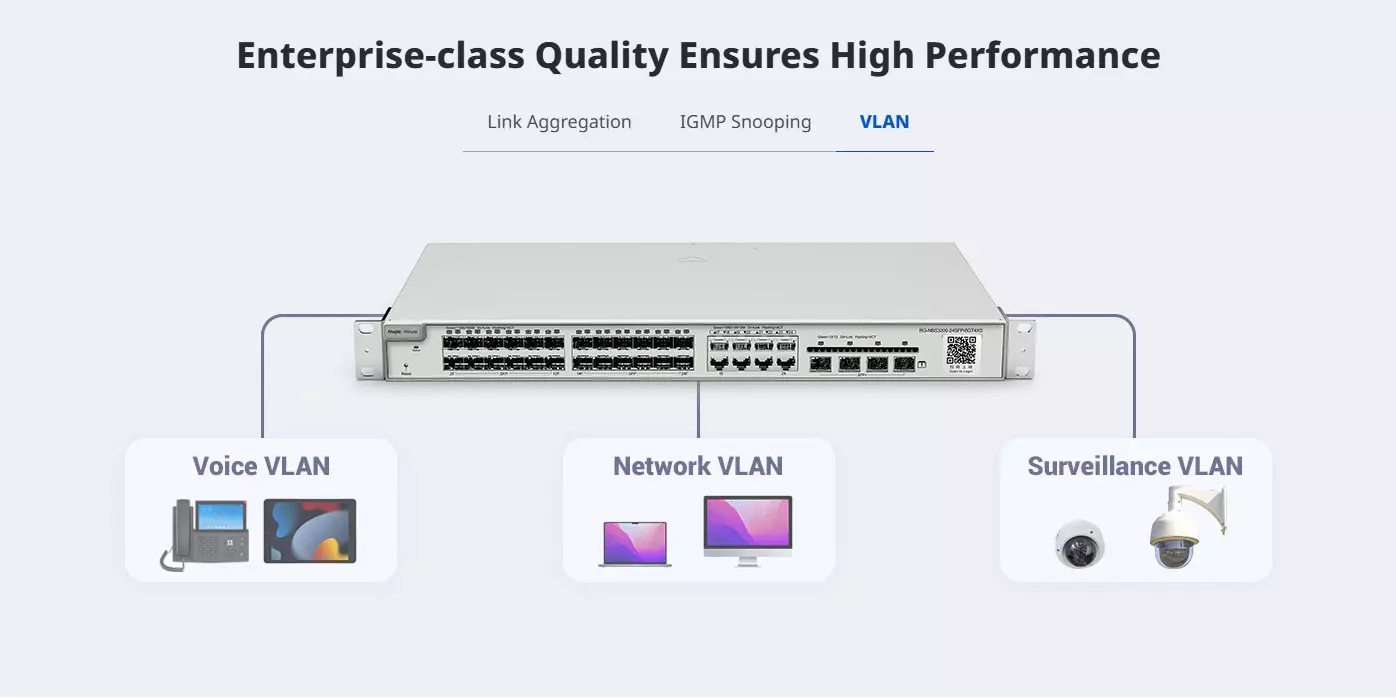

| VLAN | IEEE802.1Q VLAN | Yes |
| Port-based VLAN | Yes | |
| Voice VLAN | Yes | |
| STP | STP (IEEE 802.1d) | Yes |
| RSTP (IEEE 802.1w) | Yes | |
| MSTP (IEEE 802.1s) | Yes | |
| LLDP | LLDP | Yes |
| LLDP-MED | Yes | |
| SPAN | Port mirroring | Yes |
| Mirroring | Yes | |

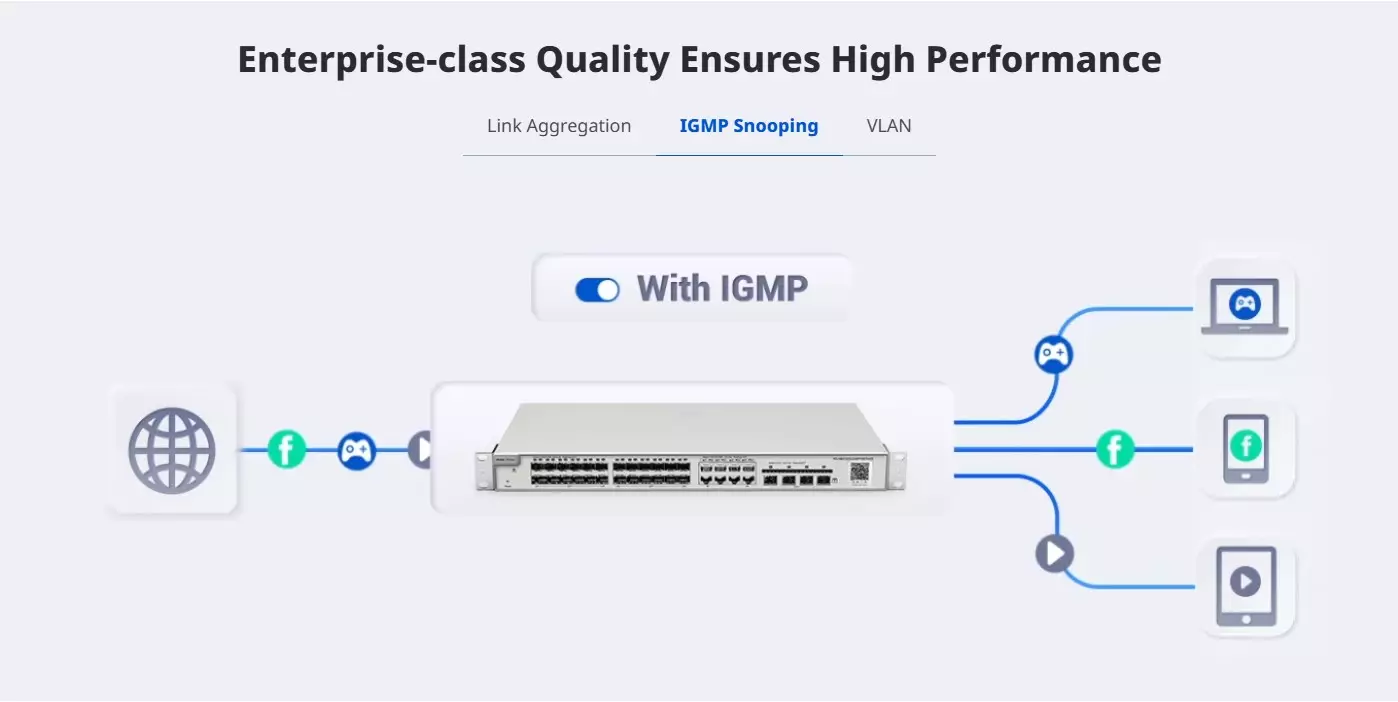

| IGMP | IGMPv1 snooping | Yes |
| IGMPv2 snooping | Yes | |
| Basic IGMPv3 snooping | Yes | |
| Full IGMPv3 snooping | Yes | |
| IGMP filtering | Yes | |
| Mac Address | Static MAC address | Yes |
| MAC address filtering | Yes | |

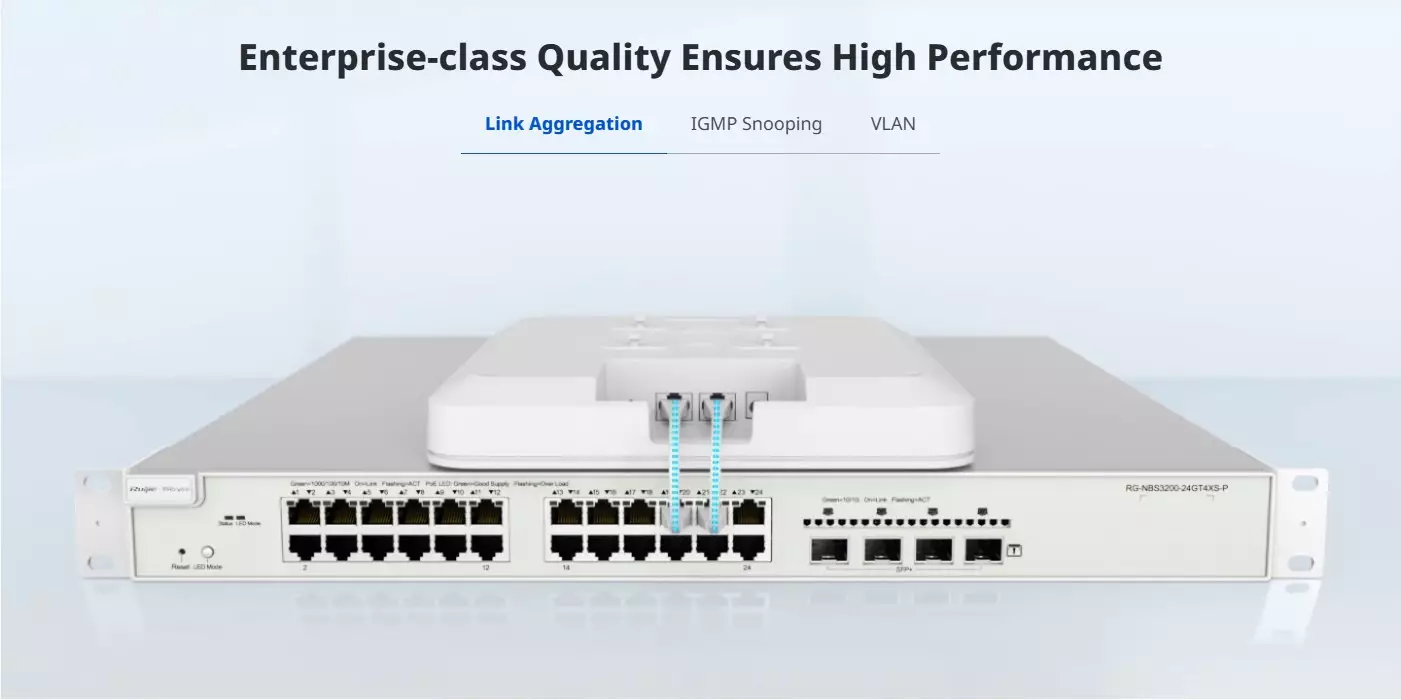

| Link Aggregation | Static aggregation | Yes |
| Load balancing | Yes | |
| LACP | Yes | |
| Storm Suppression | Broadcast storm control | Yes |
| Multicast storm control | Yes | |
| Unknown unicast storm control | Yes | |
L3 |
||
| ARP | ARP | Yes |
| IPv4 | IPv4 ping | Yes |
| IPv4 static route | Yes | |
| IPv4 traceroute | Yes | |
| IPv6 Configuration | IPv6 static route | Yes |
| ICMPv6 | Yes | |
| IPv6 ping | Yes | |
| IPv6 traceroute | Yes | |
| OSPF | OSPFv2 | Yes |
| OSPFv3 | Yes | |
| IGMP | IGMP V1, V2, V3 | Yes |
| DNS | DNS client | Yes |
| DNSv6 client | Yes | |
| DHCP | DHCP relay | Yes |
| DHCP snooping | Yes | |
| DHCP server | Yes | |
| DHCP client | Yes | |
| HTTP v6 | HTTP Access by IPv6 | Yes |
High Features |
||
| ACL | Standard ACL | Yes |
| Extended MAC ACL | Yes | |
| Extended IP ACL | Yes | |
| IPv6 ACL | Yes | |
| QoS | 802.1p traffic classification | Yes |
| DSCP-based traffic classification | Yes | |
| Egress queues based on 802.1p and DSCP | Yes | |
| SP | Yes | |
| WRR | Yes | |
| SP+WRR | Yes | |
| Global QoS | Yes | |
| Interface-based rate limiting (ingress/egress) | Yes | |
| Online Upgrade | Online Upgrade | Yes |
| RLOG | RLOG | Yes |
| Self-Organizing Network | SON | Yes |
| syslog | System log | Yes |
| Client Identification | Client discovery | Yes |
| ALARM | Camera detection | Yes |
| Loop alarm | Yes | |
| MAC address entries | Yes | |
| IP address pool conflicts | Yes | |
| Full ARP table | Yes | |
| PoE service failure | Yes | |
| PoE power overload | Yes | |
| Radius | RADIUS | Yes |
| 802.1X | 802.1X authentication | Yes |
| Port-based 802.1X authentication | Yes | |
| MAC-based 802.1X authentication | Yes | |
| Guest VLAN | Yes | |
| IP+MAC Port Binding | IP-MAC-port binding | Yes |
| Anti-ARP Spoofing | ARP anti-spoofing | Yes |
| IP Source Guard | IP source guard | Yes |
| CPU Protection Policy (CPP) | CPU Protection Policy | Yes |
Management Features |
||
| Web Management | eWeb | Yes |
| MACC | Ruijie Cloud | Yes |
| APP | Ruijie Reyee App | Yes |
| SNMP | SNMPv1, v2c, and v3 | Yes |
