Ruijie 24-port Gigabit Layer 3 Non-PoE Switch RG-NBS5200-24SFP/8GT4XS
Chat with us now to check the stock.
- RG-NBS5200-24SFP/8GT4XS
- BRANDS, NETWORKING
Ruijie 24-port Gigabit Layer 3 Non-PoE Switch RG-NBS5200-24SFP/8GT4XS
Features:

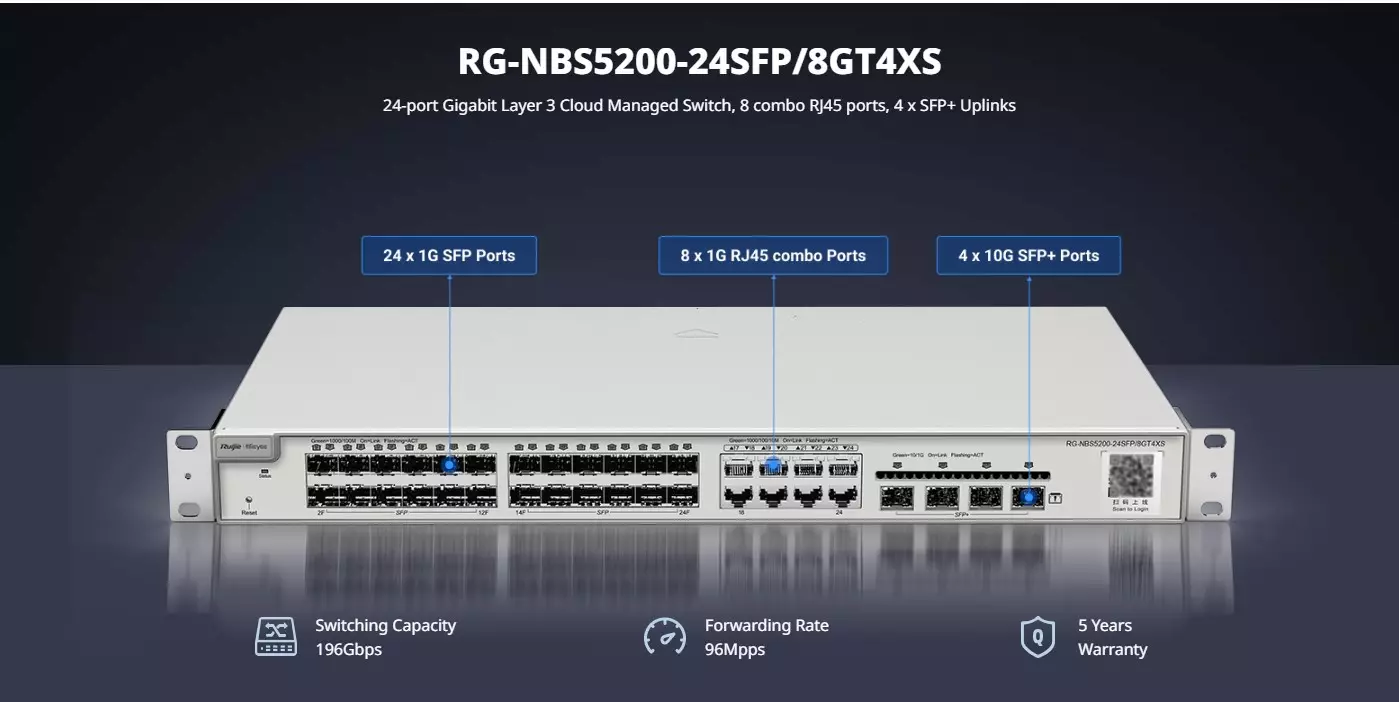

- 24-Port SFP Layer 3 non-PoE switch, 8 Combo ports with 4 SFP+ uplink
- Enterprise-class Quality Ensures High Performance
- 6KV surge protection reduces the possibility of port damage
- Multiple Security Policies Protect Your Network
- Lifetime management on Ruijie Cloud at anytime anywhere
Specifications:
| Model | RG-NBS5200-24SFP/8GT4XS | |||
| CPU | Built-in CPU, single-core processor, and 800 MHz | |||
| BOOTROM | N/A | |||
| Flash Memory | 256 MB | |||
| SDRAM | DDRIII 512 MB | |||
| Optical Module |
The copper cable is not supported. See Appendix B. ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
|||
| SFP Port | 100Base-FX 1000Base-X |
|||
| SFP+ Port | 10GBase-R 1000Base-X |
|||
| Power Supply |
Maximum voltage range: 90 V to 264 V Frequency: 50/60 Hz Rated current: 2 A |
|||
| Input Leakage Current |
≤ 3.5 mA | |||
| EEE | Supported | |||
| PoE | Not supported | |||
| Power Consumption |
42 W | |||
| Temperature | Operating temperature: 0°C to 50°C (32°F to +122°F) Storage temperature: -40°C to +70°C (-40°F to +158°F) |
|||
| Humidity | Operating humidity: 10% to 90% RH Storage humidity: 5% to 95% RH |
|||
| Fan | Adaptive speed adjustment | |||
| Temperature Alarm |
Not supported | |||
| Certification | CE | |||
| Dimensions (W x D x H) | 440 mm x 267.5 mm x 43.6 mm (with the front panel) | |||
| Weight | 3.35 kg | |||
The supported module type may change at any time. Consult Ruijie Networks for the latest information.
