Ruijie 28-Port Gigabit Layer 3 PoE Switch RG-NBS5100-24GT4SFP-P
product-additional-image
product-additional-image
product-additional-image
Ruijie 28-Port Gigabit Layer 3 PoE Switch RG-NBS5100-24GT4SFP-P
Ruijie 28-Port Gigabit Layer 3 PoE Switch RG-NBS5100-24GT4SFP-P
Ruijie 28-Port Gigabit Layer 3 PoE Switch RG-NBS5100-24GT4SFP-P
Ruijie 28-Port Gigabit Layer 3 PoE Switch RG-NBS5100-24GT4SFP-P

Ruijie 28-Port Gigabit Layer 3 PoE Switch RG-NBS5100-24GT4SFP-P

free-shipping Chat with us now to check the stock.
Exc. GST
$1,222.62
Inc. GST
$1,344.88
Eligible Coupon

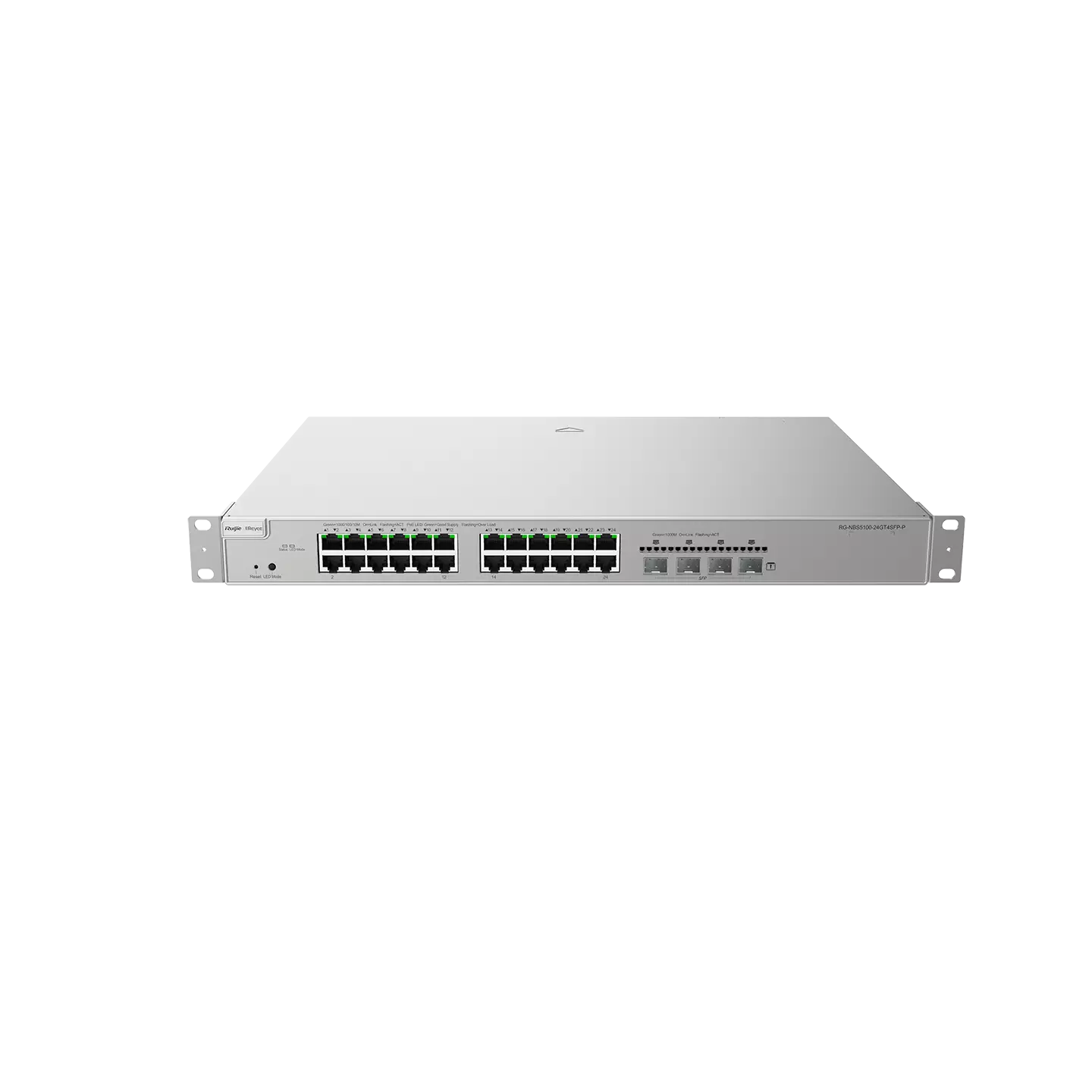

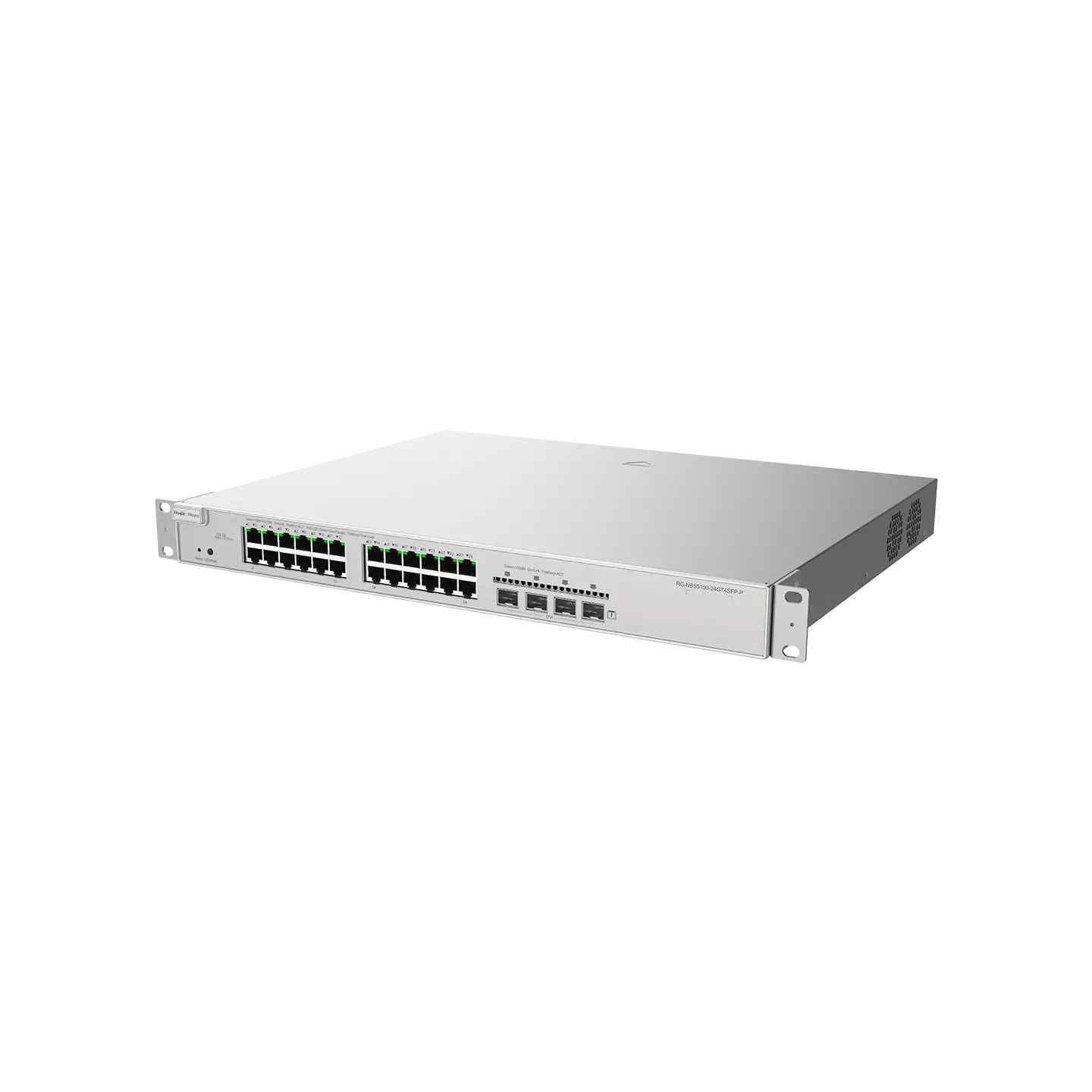

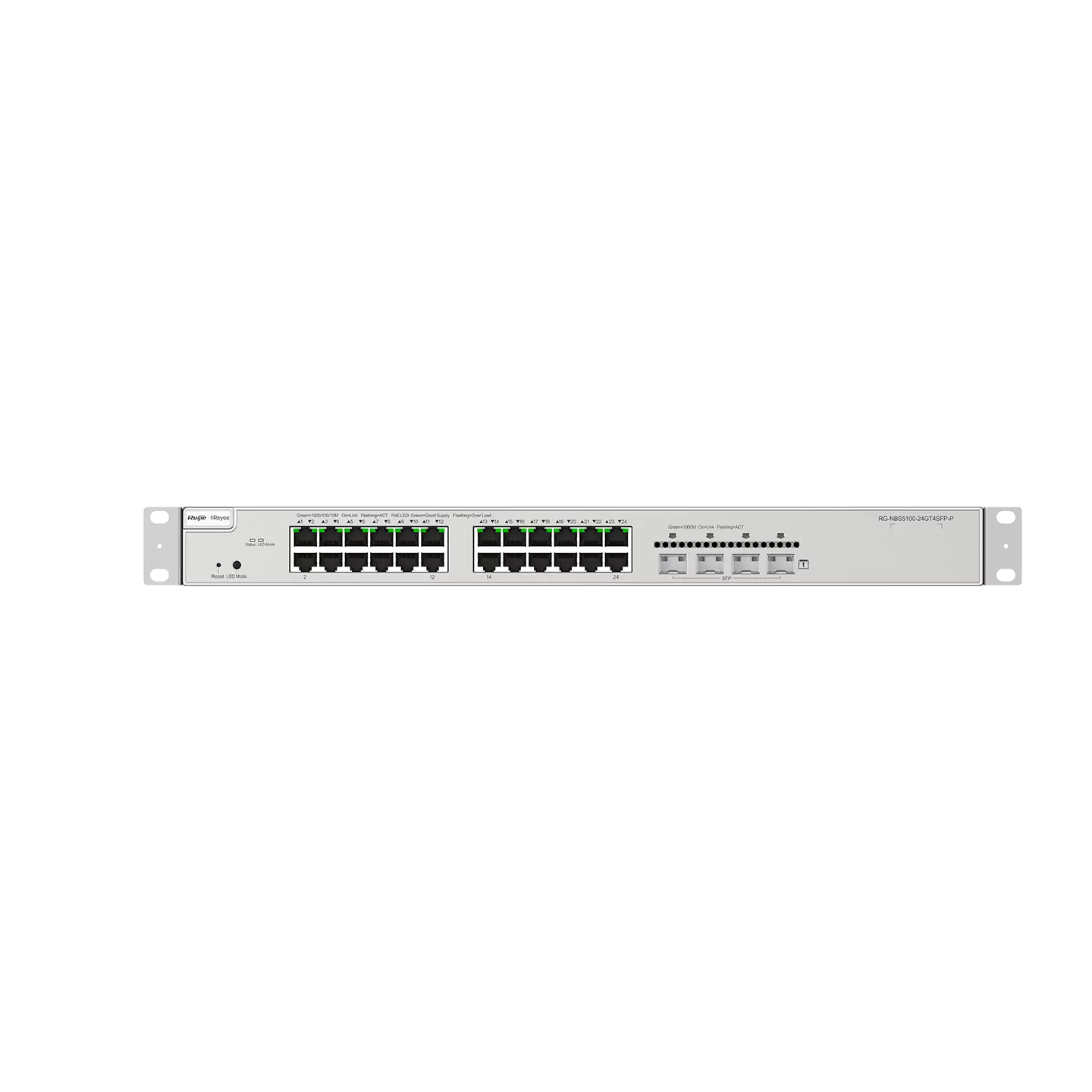

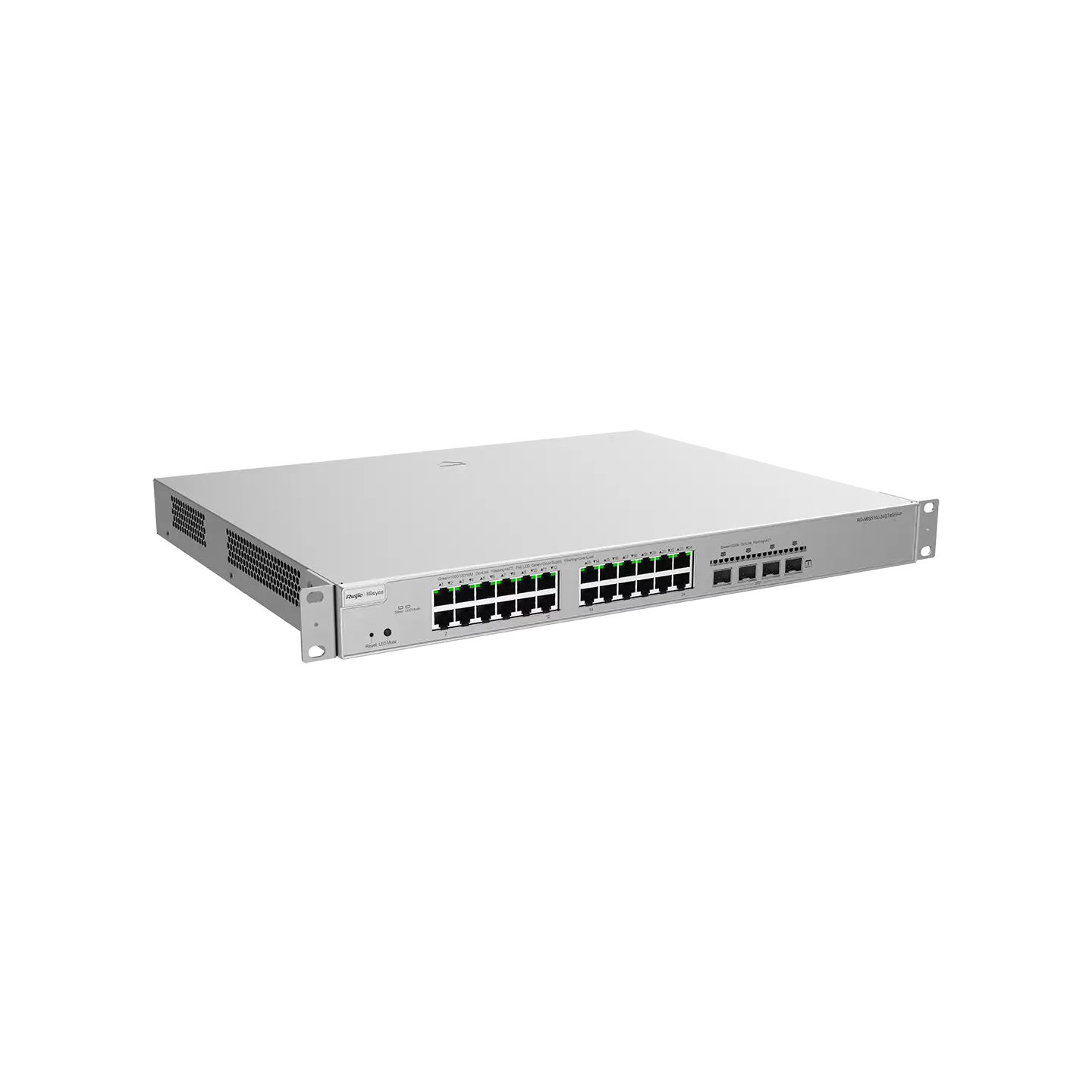

Ruijie 28-Port Gigabit Layer 3 PoE Switch RG-NBS5100-24GT4SFP-P

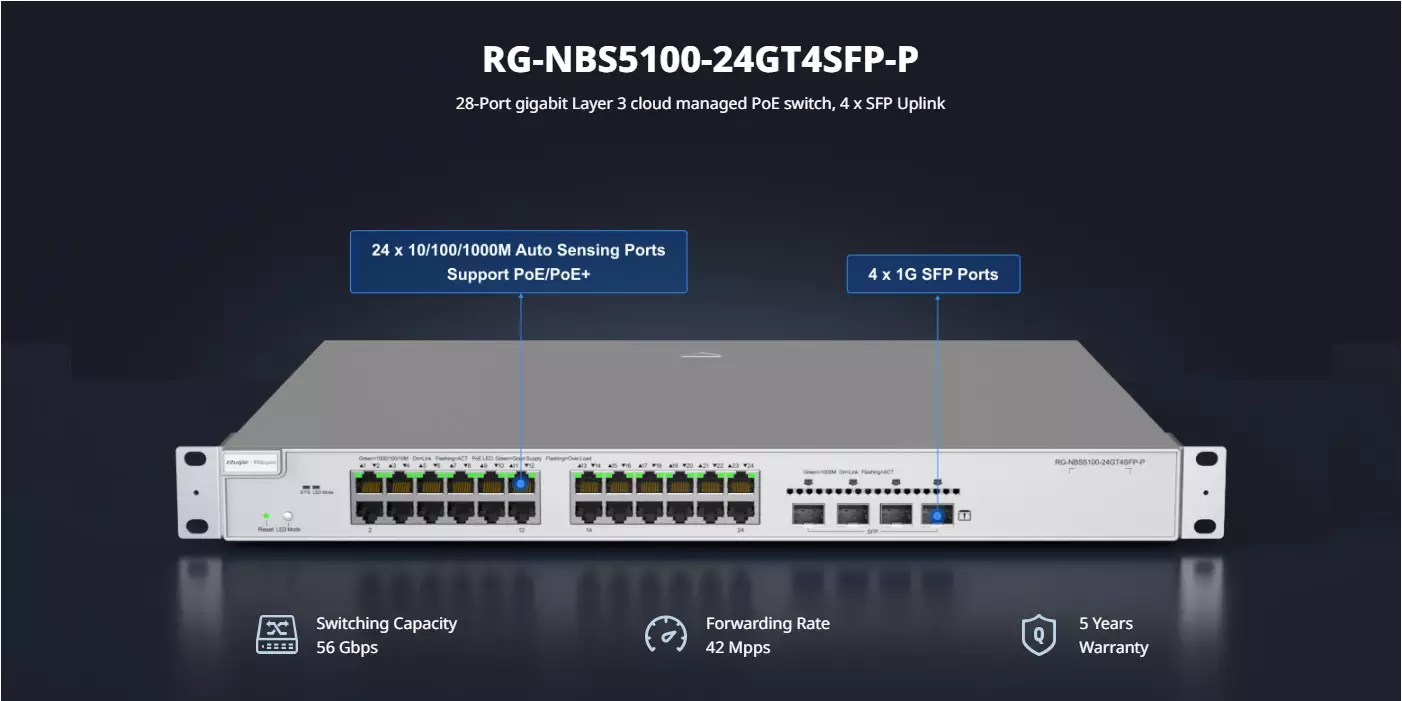

  • 28-Port gigabit Layer 3 managed PoE switch, 4 SFP uplink
  • Enterprise-class Quality Ensures High Performance
  • 6KV surge protection reduces the possibility of port damage
  • Multiple Security Policies Protect Your Network
  • Lifetime management on Ruijie Cloud at anytime anywhere



product-desc-imageproduct-desc-imageproduct-desc-imageproduct-desc-image

Specifications:

Model

RG-NBS5100-24GT4SFP-P

Hardware Specifications
Port Total Number of RJ45 Ports 24
Total Number of Optical Ports 4
Number of 1GE SFP ports 4
Number of 1GE RJ45 ports 24
POE Number of PoE/PoE+ out ports 24
PoE budget 370W
PoE power pins 1 2+ 3 6-
System Specifications CPU MAC chip with a built-in single-core CPU, 800MHz
RAM 512MB
Flash memory 256MB
Recommended camera limit 200W H265:350
400W H265:170
Forwarding rate 42Mpps
Switching capacity 56Gbps
Maximum number of VLANs 4094
Maximum number of MAC address entries 16000
Maximum number of ARP entries 2000
Routing table capacity (main unit routing) 6000
Maximum number of IPv4 static routes 500
Routing table capacity (network routing) 128
Maximum number of IPv6 static routes 128
Maximum number of ACEs In-1900
Out-0
Power Power input Rated voltage range: 100- 240V~
Maximum voltage range: 90-264V~
Frequency: 50/60Hz Rated current: 6A
Maximum power consumption No PoE load: 42.48W; Full PoE load: 431.86W
Power output 54V/6.9A,12V/3A,P=409W
Input power supply Single fixed power supply
FAN Fan 2
Fan speed adjustment Hardware-based adjustment
Heat dissipation No PoE load:  ≤145.2816 BTU/hr(220V/50Hz);
Full PoE load:  ≤1,476.9612 BTU/hr(220V/50Hz)
Acoustic noise <49dB (when the device works normally)
EMC EMC EN 55032:2015+AC:2016 EN 61000-3-2:2014
EN 61000-3-3:2013
EN 55035:2017
ETSI EN 300 386 V2.1.1
(2016-07)
Safety Compliance Safety compliance IEC 62368-1
Certification CE, FCC CE;FCC
Mounting Mounting Rack installation
Casing Casing Metal
Cable Hot- Swappable Hot swapping of cables Supported by all ports
Mean Time Between Failure (MTBF) MTBF 400000H
Warranty Warranty Card 5
EEE EEE Yes
Environment and Reliability Operating temperature 0 to 50°C
Storage temperature -40 to 70ºC
Operating humidity 10% to 90% RH(non- condensing)
Storage humidity 5% to 95% RH(non- condensing)
Operating altitude -500~5000M
ESD protection Air Discharge: 8kV Contact Discharge: 6kV
Surge protection Common Mode 6kV
Surge protection Common Mode 6kV Differential mode 6kV
Package Contents Dimensions (W x D x H) 440mm x 357.6mm x 43.6mm
Weight 4.75 kg
Shipping weight 6.51kg
Rack-mount bracket 2
Screw M4 Screw*8
User Manual 1
Rubber pad 4
Input power supply Single fixed power supply
Warranty Card 1

L2
Jumbo Frame Jumbo frame length (MTU) 9216 Bytes(Per-port MTU)
port Port flow control Yes
PoE watchdog Yes
Port isolation Yes
EEE Yes
Cable Test Yes
VLAN IEEE802.1Q VLAN Yes
Port-based VLAN Yes
Voice VLAN Yes
STP STP (IEEE 802.1d) Yes
RSTP (IEEE 802.1w) Yes
MSTP (IEEE 802.1s) Yes
G.8032 (ERPS) ERPS Yes
LLDP LLDP Yes
LLDP-MED Yes
SPAN Port mirroring Yes
Mirroring Yes
IGMP IGMPv1 snooping Yes
IGMPv2 snooping Yes
Basic IGMPv3 snooping Yes
Full IGMPv3 snooping Yes
IGMP filtering Yes
Mac Address Static MAC address Yes
MAC address filtering Yes
Link Aggregation Static aggregation Yes
Load balancing Yes
LACP Yes
Storm Suppression Broadcast storm control Yes
Multicast storm control Yes
Unknown unicast storm control Yes

L3
ARP ARP Yes
IPv4 IPv4 ping Yes
IPv4 static route Yes
IPv4 traceroute Yes
IPv6 Configuration IPv6 static route Yes
ICMPv6 Yes
IPv6 ping Yes
IPv6 traceroute Yes
OSPF OSPFv2 Yes
  OSPFv3 Yes
IGMP IGMP V1, V2, V3 Yes
DNS DNS client Yes
DNSv6 client Yes
DHCP DHCP relay Yes
DHCP snooping Yes
DHCP server Yes
DHCP client Yes
HTTP v6 HTTP Access by IPv6 Yes

High Features
ACL Standard ACL Yes
Extended MAC ACL Yes
Extended IP ACL Yes
IPv6 ACL Yes
QoS 802.1p traffic classification Yes
DSCP-based traffic classification Yes
Egress queues based on 802.1p and DSCP Yes
SP Yes
WRR Yes
SP+WRR Yes
Global QoS Yes
Interface-based rate limiting (ingress/egress) Yes
Online Upgrade Online Upgrade Yes
RLOG RLOG Yes
Self-Organizing Network SON Yes
syslog System log Yes
Client Identification Client discovery Yes
ALARM Camera detection Yes
  Loop alarm Yes
MAC address entries Yes
IP address pool conflicts Yes
Full ARP table Yes
PoE service failure Yes
PoE power overload Yes
Radius RADIUS Yes
802.1X 802.1X authentication Yes
Port-based 802.1X authentication Yes
MAC-based 802.1X authentication Yes
Guest VLAN Yes
IP+MAC Port Binding IP-MAC-port binding Yes
Anti-ARP Spoofing ARP anti-spoofing Yes
IP Source Guard IP source guard Yes
CPU Protection Policy (CPP) CPU Protection Policy Yes

Management Features
Web Management eWeb Yes
MACC Ruijie Cloud Yes
APP Ruijie Reyee App Yes
SNMP SNMPv1, v2c, and v3 Yes
