Ruijie 52-Port Gigabit Layer 2 Cloud Managed PoE Switch RG-NBS3100-48GT4SFP-P
Chat with us now to check the stock.
Exc. GST
$1,684.83
Inc. GST
$1,853.31
Eligible Coupon
- RG-NBS3100-48GT4SFP-P
- BRANDS, NETWORKING

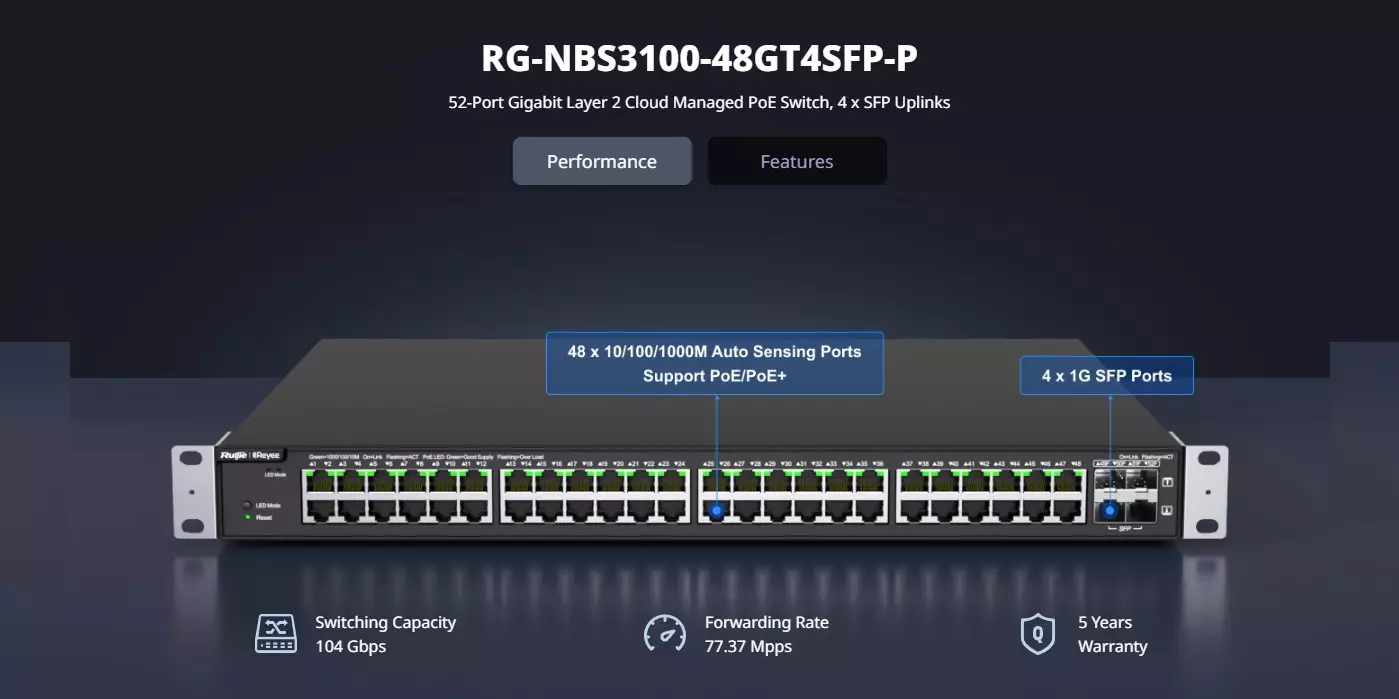

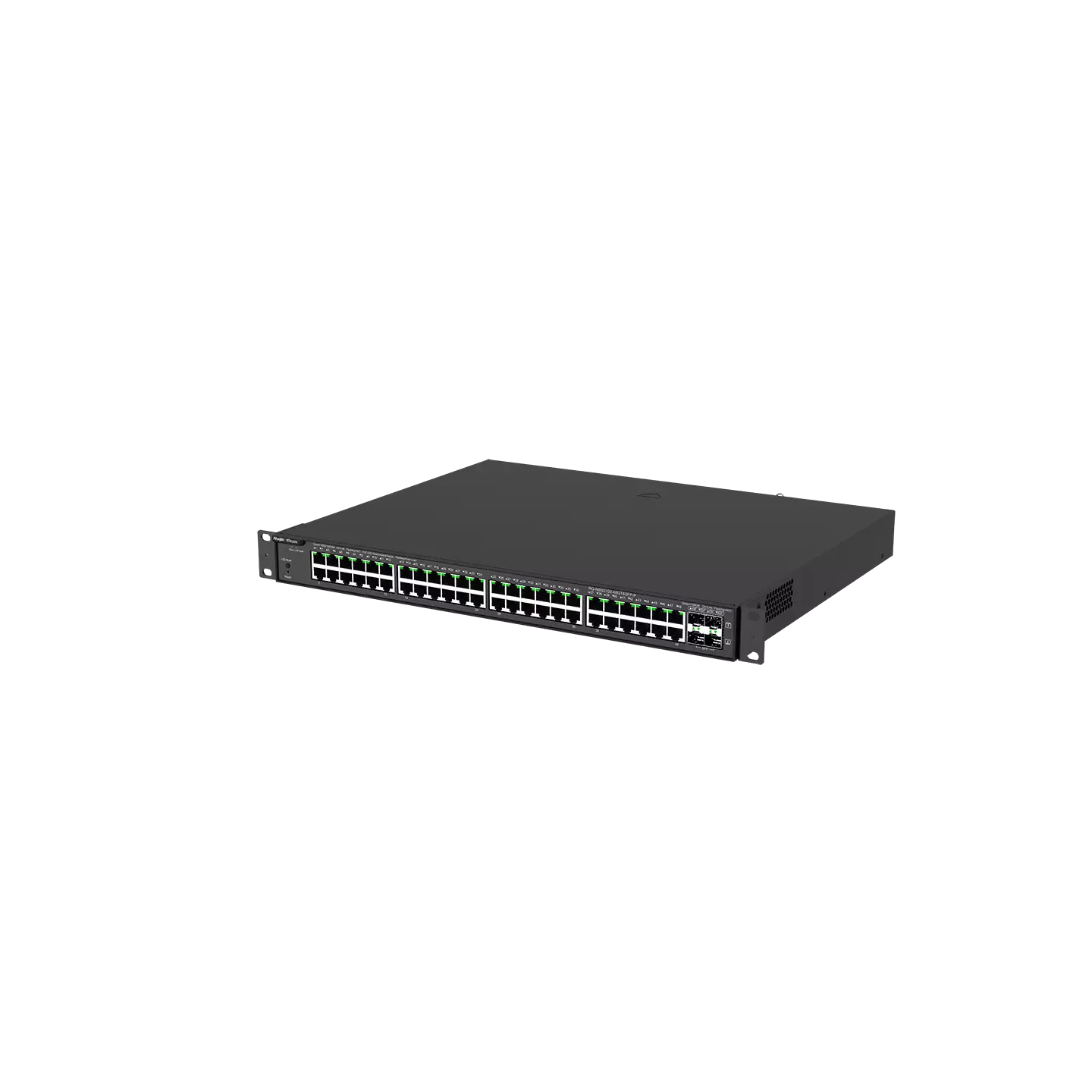

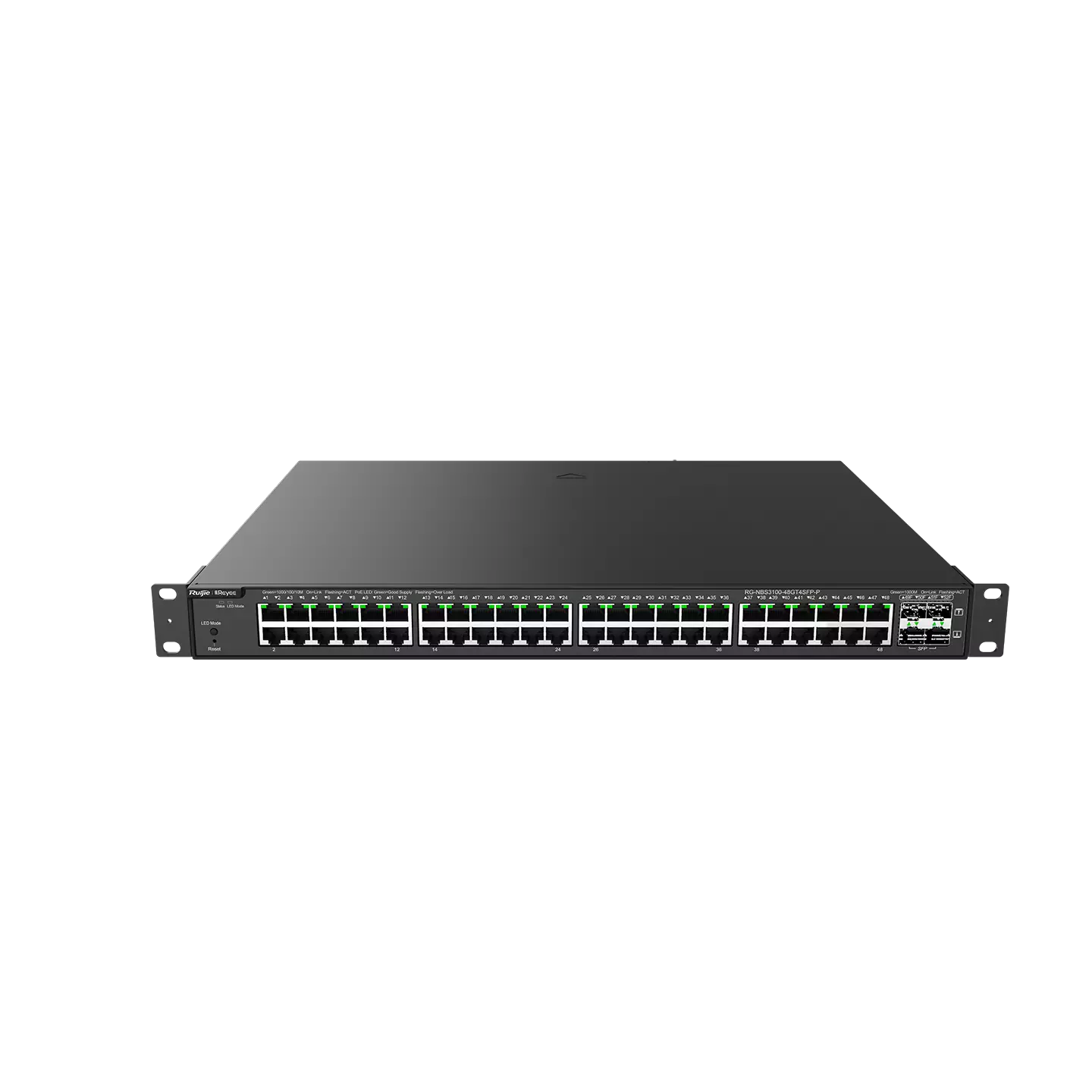

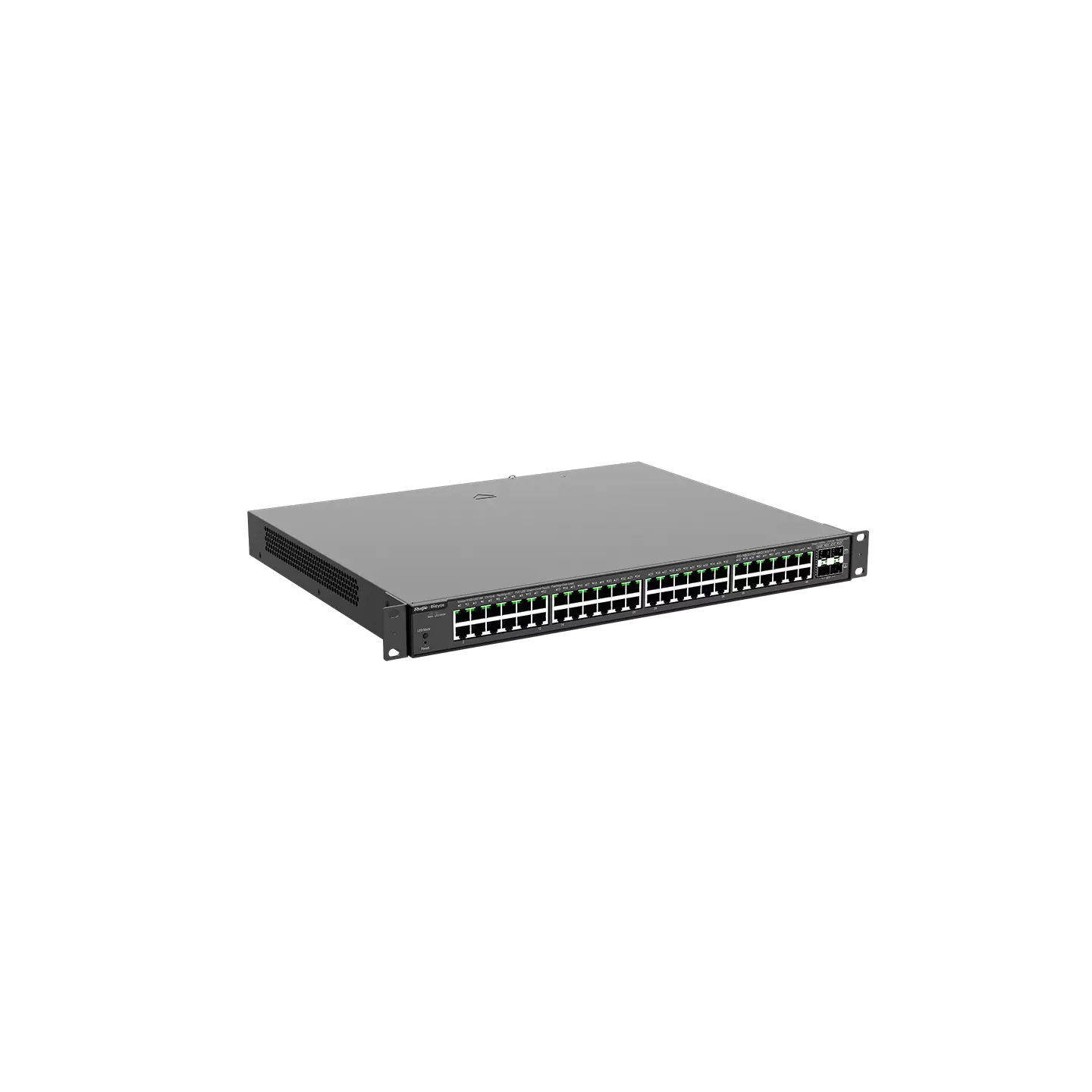

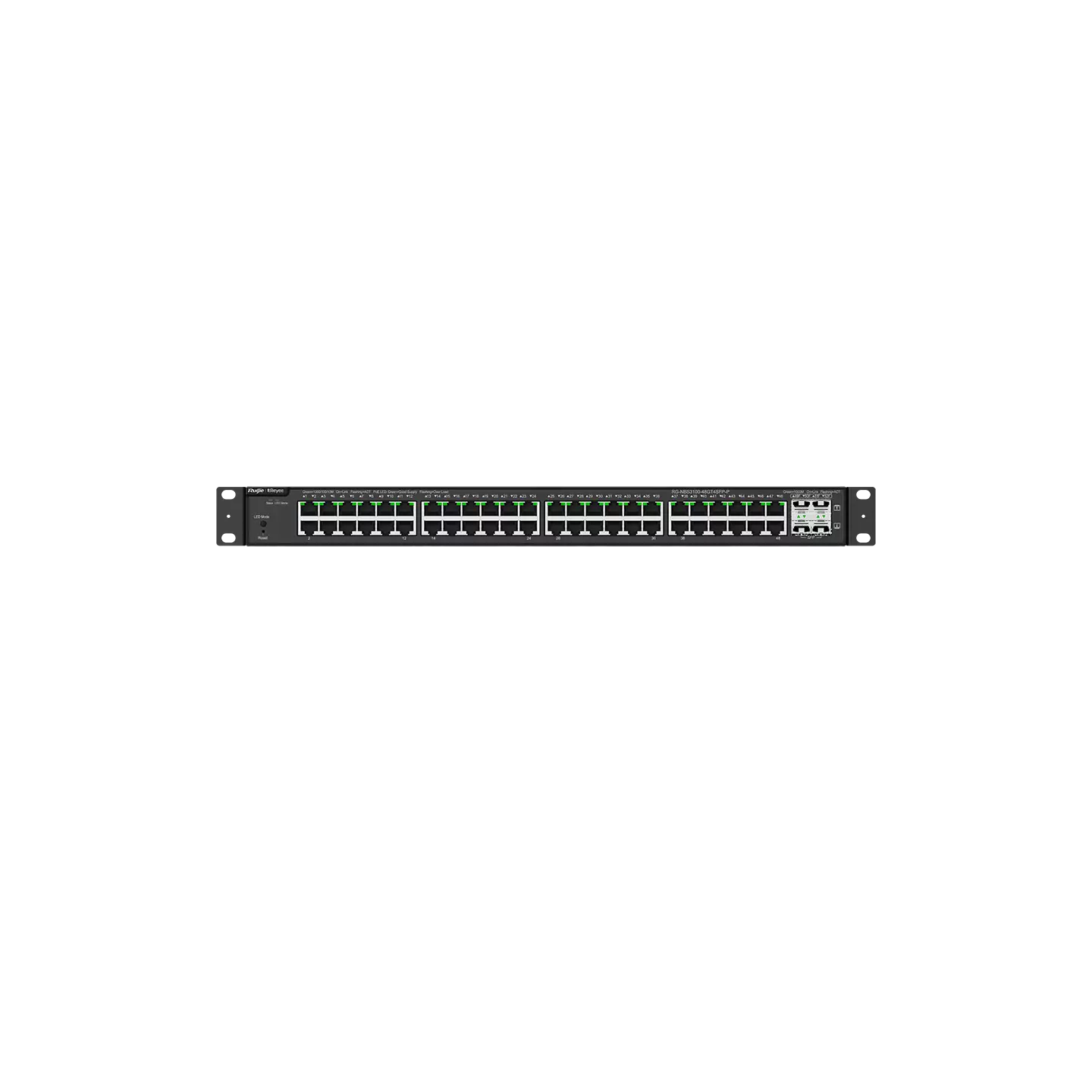

Ruijie 52-Port Gigabit Layer 2 Cloud Managed PoE Switch RG-NBS3100-48GT4SFP-P
Features:
- 52-Port gigabit Layer 2 managed PoE switch, 4 SFP uplink

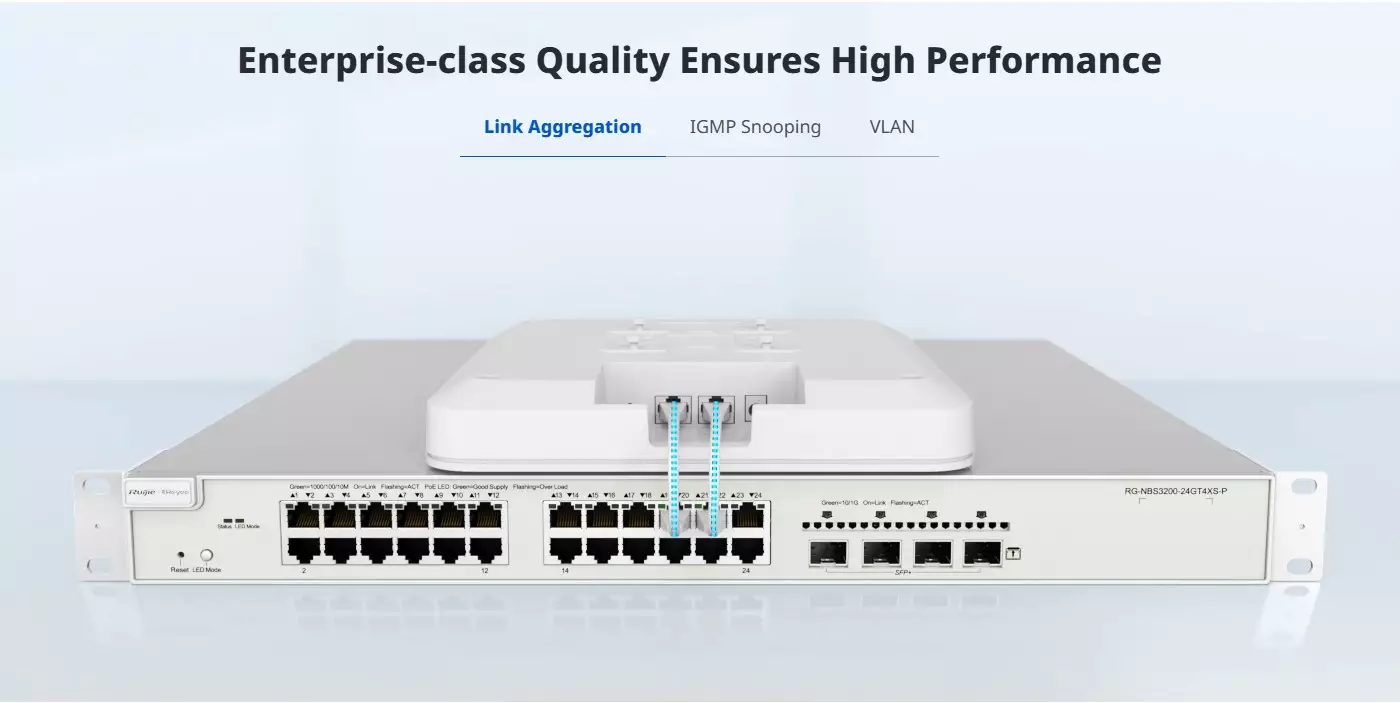

- Enterprise-class Quality Ensures High Performance
- IP Camera Recognition, Unique Value for CCTV Network
- Multiple Security Policies Protect Your Network
- Lifetime management on Ruijie Cloud at anytime anywhere
Specifications:
Model |
RG-NBS3100- 48GT4SFP-P |
|
Hardware Specifications |
||
| Port | Total Number of RJ45 Ports | 48 |
| Total Number of Optical Ports | 4 | |
| Number of 1GE SFP ports | 4 | |
| Number of 1GE RJ45 ports |
48 | |
| POE | Number of PoE/PoE+ out ports | 48 |

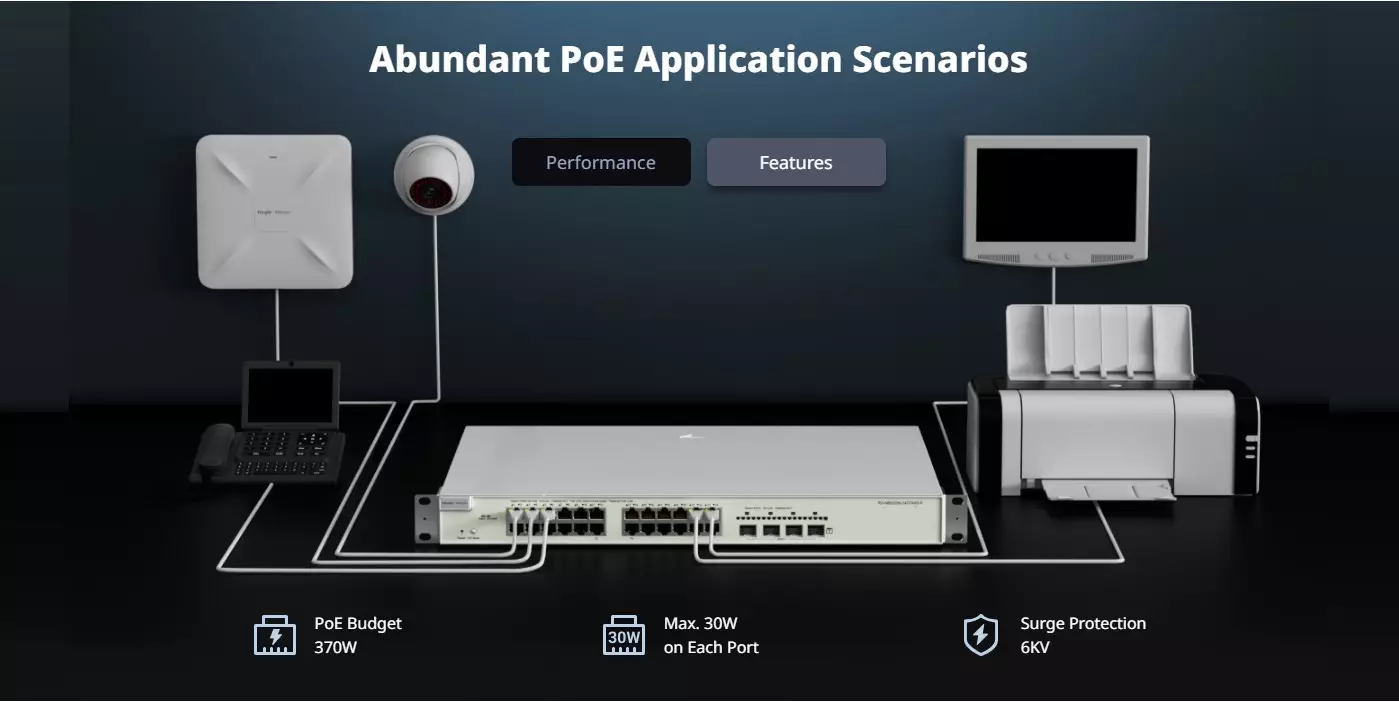

| PoE budget | 370W | |
| PoE power pins | 1 2+ 3 6- | |
| System Specifications | CPU | MAC chip with a built-in dual-core CPU, 1GHz |
| RAM | 512MB | |
| Flash memory | 256MB | |
| Recommende d camera limit | 200W H265:200 400W H265:100 |
|
| Forwarding rate | 78Mpps | |
| Switching capacity | 104Gbps | |
| Maximum number of VLANs | 4094 | |
| Maximum number of MAC address entries | 16000 | |
| Maximum number of ARP entries | 1000 | |
| Maximum number of ACEs | In-1900 Out-0 |
|
| Power | Power input | Maximum voltage range: 90-264V~ Frequency: 50/60Hz Rated current: 7A |
| Maximum power consumption | No PoE load: 61.57W; Full PoE load: 447.69W |
|
| Power output | 90- 264VAC,54.5V/8. 26A,P=450W |
|
| Input power supply | Single fixed power supply | |
| FAN | Fan | 2 |
| Heat dissipation | Left to back &Right to back | |
| Fan speed adjustment | Hardware-based adjustment | |
| Heat dissipation | No PoE load: ≤ 210.5694 BTU/hr(220V/50 Hz); Full PoE load: ≤ 1,531.0998 BTU/hr(220V/50 Hz) |
|
| Acoustic noise | <50dB (when the device works normally) | |
| Button | Reset button | Yes |
| DIP switch | LED MODE | |
| EMC | EMC | EN 55032:2015+AC:2 016 EN 61000-3- 2:2014 EN 61000-3- 3:2013 EN 55035:2017 ETSI EN 300 386 V2.1.1 (2016-07) |
| Safety Compliance | Safety compliance | IEC 62368-1 |
| Certification | CE, FCC | CE;FCC |
| Mounting | Mounting | Rack installation |
| Casing | Casing | Metal |
| Cable Hot- Swappable | Hot swapping of cables | Supported by all ports |
| Mean Time Between Failure (MTBF) | MTBF | 400000H |
| Warranty | Warranty Card | 5 |
| EEE | EEE | Yes |
| Environment and Reliability | Operating temperature | 0 to 50°C |
| Storage temperature | -40 to 70ºC | |
| Operating humidity | 10% to 90% RH(non- condensing) |
|
| Storage humidity | 5% to 95% RH(non- condensing) |
|
| Operating altitude | -500~5000M | |
| ESD protection |
Air Discharge: 8kV Contact Discharge: 6kV |
|
| Surge protection | Common Mode 6kV | |
| Surge protection | Common Mode 6kV Differential mode 6kV |
|
| Package Contents | Dimensions (W x D x H) | 440mm x 357.6mm x 43.6mm |
| Weight | 5.4 kg | |
| Shipping weight | 7.13kg | |
| Rack-mount bracket | 2 | |
| Screw | M4 Screw*8 | |
| User Manual | 1 | |
| Rubber pad | 4 | |
| Input power supply | Single fixed power supply | |
| Warranty Card | 1 | |
L2 |
||
| Jumbo Frame | Jumbo frame length (MTU) | 9216 Bytes(Per- port MTU) |
| Port | Port flow control | Yes |
| PoE watchdog | Yes | |
| Port isolation | Yes | |
| EEE | Yes | |
| Cable Test | Yes | |
| VLAN | IEEE802.1Q VLAN | Yes |
| Port-based VLAN | Yes | |
| Voice VLAN | Yes | |
| STP | STP (IEEE 802.1d) | Yes |
| RSTP (IEEE 802.1w) | Yes | |
| MSTP (IEEE 802.1s) | Yes | |
| G.8032 (ERPS) | ERPS | Yes |
| LLDP | LLDP | Yes |
| LLDP-MED | Yes | |
| SPAN | Port mirroring | Yes |
| Mirroring | Yes | |
| IGMP | IGMPv1 snooping |
Yes |
| IGMPv2 snooping |
Yes | |
| Basic IGMPv3 snooping | Yes | |
| IGMP filtering | Yes | |
| Mac Address | Static MAC address | Yes |
| MAC address filtering | Yes | |
| Link Aggregation | Static aggregation | Yes |
| Load balancing | Yes | |
| LACP | Yes | |
| Storm Suppression | Broadcast storm control | Yes |
| Multicast storm control | Yes | |
| Unknown unicast storm control | Yes | |
L3 |
||
| IPv4 | IPv4 ping | Yes |
| IPv4 traceroute |
Yes | |
| IPv6 Configuration | ICMPv6 | Yes |
| IPv6 ping | Yes | |
| IPv6 traceroute |
Yes | |
| DNS | DNS client | Yes |
| DNSv6 client | Yes | |
| DHCP | DHCP snooping |
Yes |
| DHCP client | Yes | |
| HTTP v6 | HTTP Access by IPv6 | Yes |
High Features |
||
| ACL | Standard ACL | Yes |
| ACL | Extended MAC ACL | Yes |
| ACL | Extended IP ACL | Yes |
| ACL | IPv6 ACL | Yes |
| QoS | 802.1p traffic classification | Yes |
| DSCP-based traffic classification | Yes | |
| Egress queues based on 802.1p and DSCP | Yes | |
| SP | Yes | |
| WRR | Yes | |
| SP+WRR | Yes | |
| Global QoS | Yes | |
| Interface- based rate limiting (ingress/egres s) | Yes | |
| Online Upgrade | Online Upgrade | Yes |
| RLOG | RLOG | Yes |
| Self- Organizing Network | SON | Yes |
| syslog | System log | Yes |
| Client Identification | Client discovery | Yes |
| ALARM | Camera detection | Yes |
| Loop alarm | Yes | |
| MAC address entries | Yes | |
| IP address pool conflicts | Yes | |
| PoE service failure | Yes | |
| PoE power overload | Yes | |
| Radius | RADIUS | Yes |
| 802.1X | 802.1X authenticatio n |
Yes |
| Port-based 802.1X authenticatio n |
Yes | |
| MAC-based 802.1X |
Yes | |
| authenticatio n | ||
| Guest VLAN | Yes | |
| IP+MAC Port Binding | IP-MAC-port binding | Yes |
| Anti-ARP Spoofing | ARP anti- spoofing | Yes |
| IP Source Guard | IP source guard | Yes |
| CPU Protection Policy (CPP) | CPU Protection Policy |
Yes |
Management Features |
||
| Web Management | eWeb | Yes |
| MACC | Ruijie Cloud | Yes |
| APP | Ruijie Reyee App | Yes |
| SNMP | SNMPv1, v2c, and v3 |
Yes |
