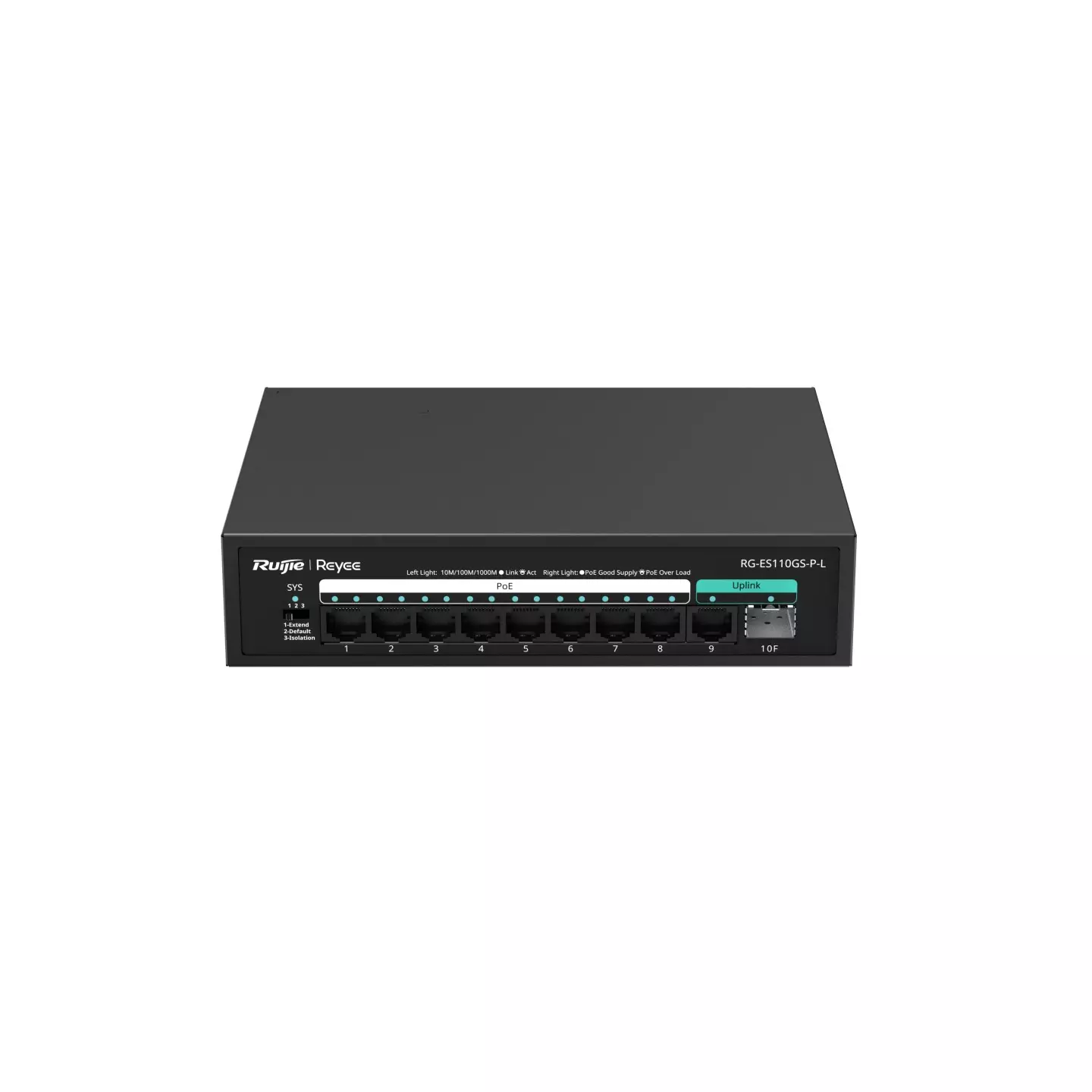

Ruijie 10-Port 1000Mbps Unmanaged Switch with 8 PoE+ Ports RG-ES110GS-P-L
Ruijie 10-Port 1000Mbps Unmanaged Switch with 8 PoE+ Ports RG-ES110GS-P-L

Ruijie 10-Port 1000Mbps Unmanaged Switch with 8 PoE+ Ports RG-ES110GS-P-L

Chat with us now to check the stock.
Exc. GST
$261.99
Inc. GST
$288.19
Eligible Coupon

Ruijie 8-Port 1000Mbps Unmanaged Switch with 8 PoE+ Ports RG-ES110GS-P-L



Features:

  • 10-port 10/100/1000 Mbps unmanaged PoE switch
  • Unmanaged switch, which is visible on Ruijie Cloud

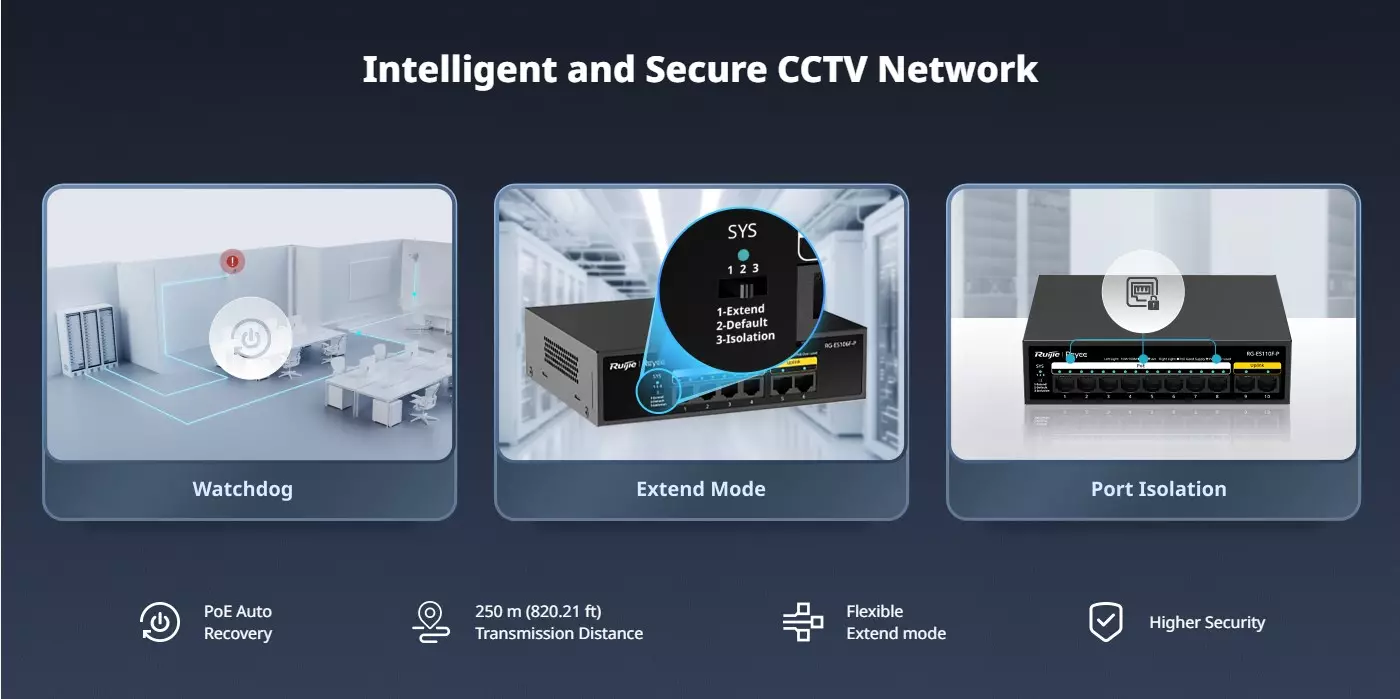

  • Intelligent and secure CCTV network
  • Intelligent PoE Management

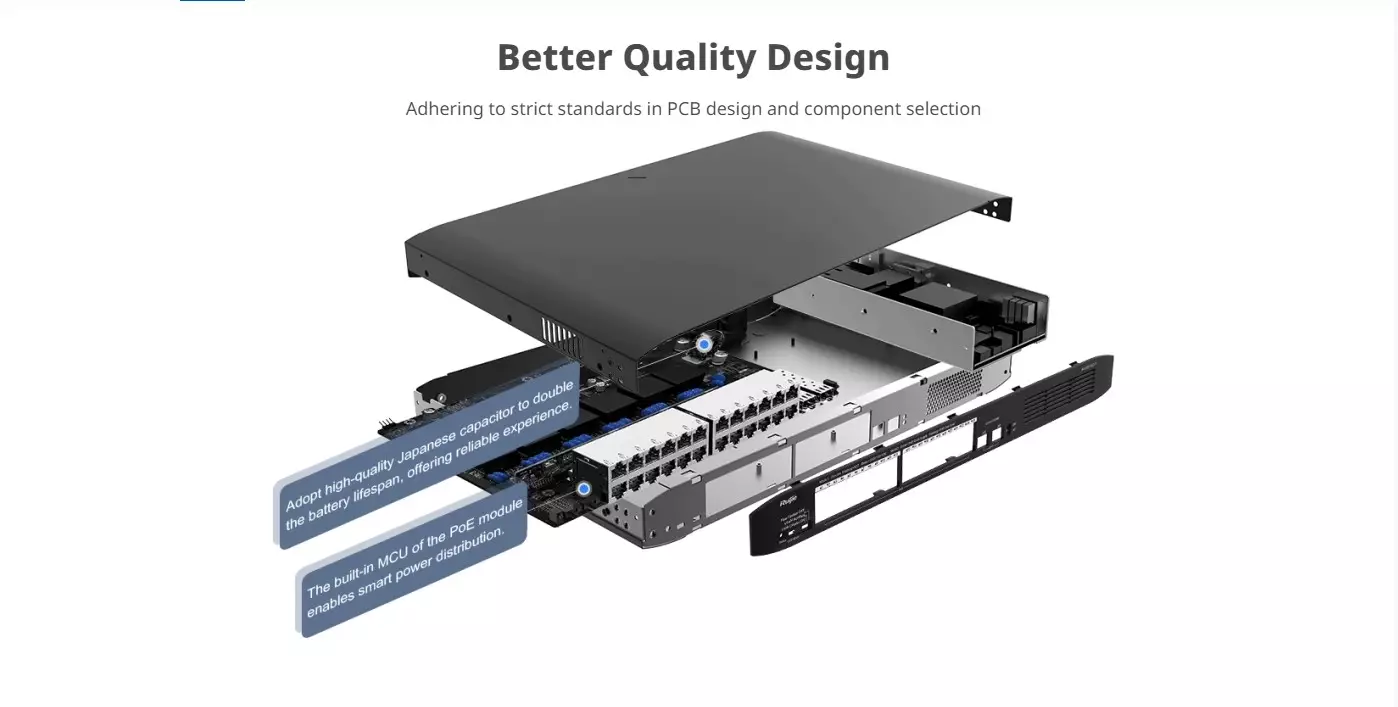

  • High-quality design
  • Applicable to various scenarios

product-desc-image



product-desc-image

product-desc-image

product-desc-imageproduct-desc-imageproduct-desc-image





Specifications:

Model RG-ES110GS-P-L
Ports
  •       Nine 1000 Mbps Ethernet ports with auto-negotiation. Ports 1-8 are PoE- capable.
  •       One 1O00M seTf-adaptive Ethernet SFP port.
Power Supply AC input:
  •       Rated voltage range: 11ß-240 V AC
  •       Maximum voltage range: 100-264 V AC e      Maximum input current: 3 A
  •       Frequency: 50/60 Hz
EEE Not supported
PoE
  •       Compliant with IEEE 802.af/at
  •       Ports 1-8 are PoE/PoE+ capable.

  •       Maximum PoE+ output power per port: 30 W
  •       Maximum PoIE/PoE+ output power per device: 120 W
PoE Power Cable
Pairs		 Mode A (1-2. 3-6 pairs)
WorLing Mode o      Default mode: All ports can communicate with each other.
Extend mode! The rate of ports 1 to 8 is reduced to 10 Mbps. Typically, the transmission distance is 200 m (6Mf.17 ft), which is up to 250 m (820.21 ft) in the laboratory environment with Cat5e cables or higher. In addition. factors such as cable quality, powered device performance. and ambient temperature may cause the transmission  distance to be less than 250 m (820.21 ft).
o     Isolation mode! Ports 1 to 8 cannot ammunicate with each other. but they can communicate with ports 9 and 10.
Maximum Power
Consumption		 0      120 W (full PoE laad)
0      10 W (no PoE load)
Temperature 0E   to 45a   [326 to 113 9)
Storage Temperature -40a to 7O& (-40T to 158T)
Operating Humidity 1O’A  to 90% RH (non-condensing)
Storage Humidity 5% to 95’A  RH (non-condensing)
LigHning  Protection
Fan Fanless design
Certification CE
Ground        Leakage
Current		 s 3.5 mA
Dimensions
(W x D x H)		 190 mm x 150 mm x 43mm (7.48 in. x 5.91 in. x 1.69 in.)
weight 1.6 kg (3.53 lbs.. with packaging materials)
