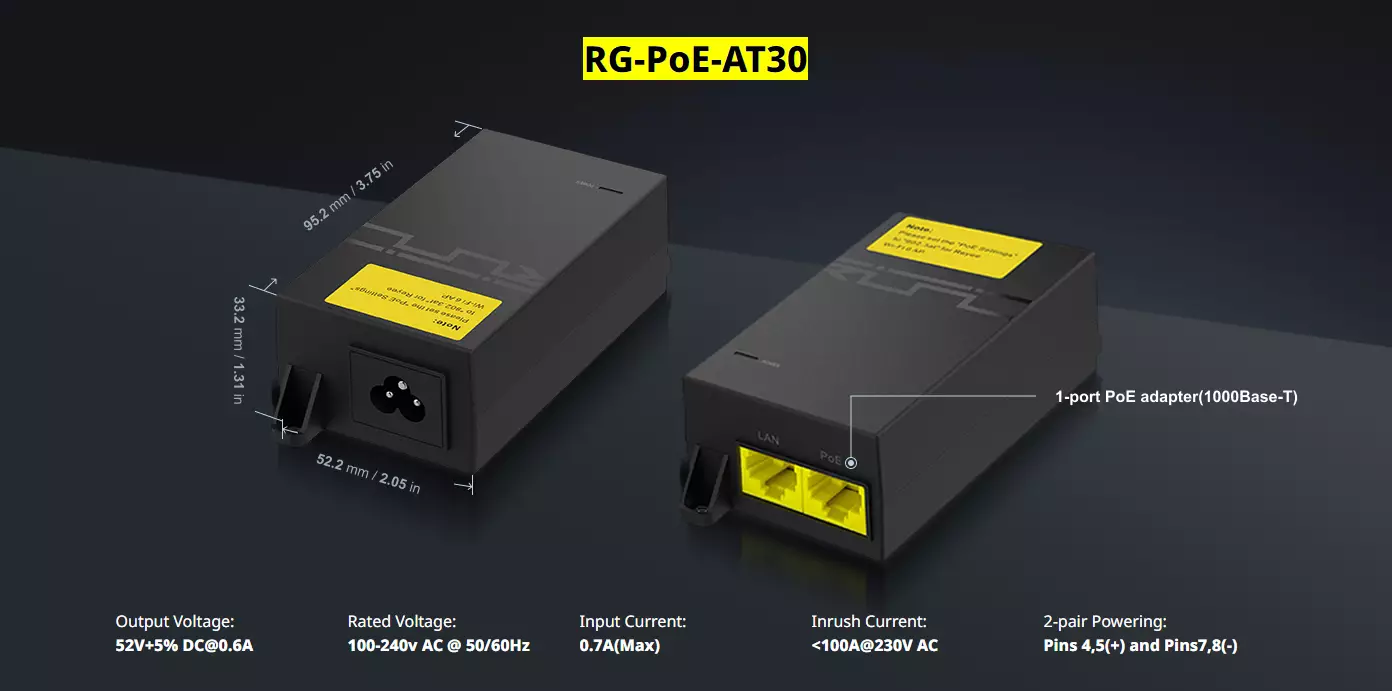

Dimensions | 95.2 mm x 52.2 mm x 33.2 mm ± 1 mm (3.75 in. x 2.05 in. x 1.31 in.) |
Weight | 145±5g (5.11 Oz) |
Output Voltage | 52V±5% @ 0.60A |
Gigabit LAN Port | 1G |
Remote Reset Capability | No |
Reset Button | No |
Rated Voltage | 100-240V AC @ 50/60Hz |
Input Current | 0.7A(Max) |
Inrush Current | <80A@230VAC |
Average active efficiency: | 89.36% |
Efficiency at low load (10%): |
84.34% |
No-load power consumption: |
0.085W |
Output Ripple | <1% |
Switching Frequency | 65KHz |
Line Regulation | ≤5% |
Load Regulation | ≤5% |
2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
4-Pair Powering | NA |
Operating Temperature | ﹣10℃ to 45℃(14 to 113° F) |
Storage Temperature | -40℃ to +70℃(-40 to 158° F) |
Operating Humidity | 5~95% RH, Non-condensing |
AC Connector | IEC-320 C6 |
Data IN / POE | RJ45 Shielded Socket |
Surge Protection | Difference and Common Mod |
Clamping Protection | NA |
Max. Surge Discharge | 2000A (8/20 µs) Power |
Peak Pulse Current | 36A (10/1000 µs) Data |
Shunt Capacitance | <5 pf data |
Response Time | <1 ns |
Certifications | CE, CB |
