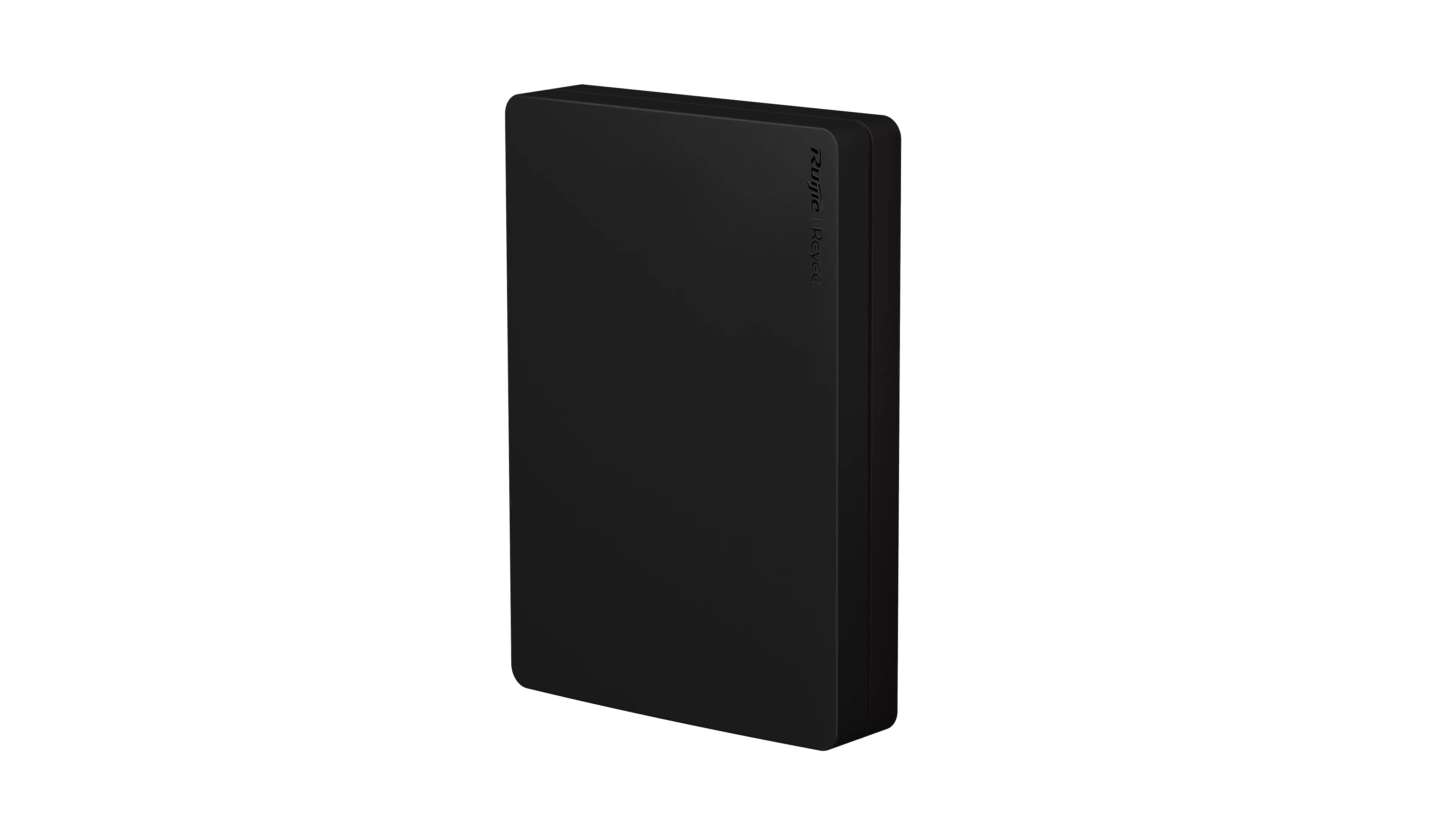

Ruijie Reyee Wi-Fi 6 AX3000 Dual-Band Wall Plate Access Point 10 Black Cover - 10*RG-RAP1260(Black Cover)
Ruijie Reyee Wi-Fi 6 AX3000 Dual-Band Wall Plate Access Point 10 Black Cover - 10*RG-RAP1260(Black Cover)

Ruijie Reyee Wi-Fi 6 AX3000 Dual-Band Wall Plate Access Point 10 Black Cover - 10*RG-RAP1260(Black Cover)

Chat with us now to check the stock.
Exc. GST
$67.98
Inc. GST
$74.78
Eligible Coupon

Ruijie Reyee Wi-Fi 6 AX3000 Dual-Band Wall Plate Access Point 10 Black Cover - 10*RG-RAP1260(Black Cover)



  • Dual-radio performance, gigabit wireless wall-mounted AP
  • Better experience with MU-MIMO under 802.11ax
  • Easy installation, worldwide compatible
  • Capable of Reyee Mesh and 802.11K/V/R
  • Powerful Standalone Portal via Ruijie Cloud



Specifications:

Basic Features
Wi-Fi Standards 802.11a/n/ac/ax 802.11b/g/n/ax

MIMO

2.4 GHz, 2x2, MU-MIMO 5 GHz, 2x2, MU-MIMO

 2.4 GHz, 2x2, MU-MIMO 5 GHz, 2x2, MU-MIMO
Max. Wi-Fi Speed 2.4 GHz: 574 Mbps  5 GHz: 2402 Mbps

Number of Antennas

 5
Antenna Type Built-in omnidirectional antennas
Antenna Gain                                                                          2.4 GHz: 3 dBi 5 GHz: 5 dBi
Transmit Power Frequency bands using and the max EIRP: Note: Country specific restrictions apply European Union & United Kingdom 2400-2483.5 MHz, EIRP£  20 dBm
5150-5350 MHz, EIRP£  23 dBm
5470-5725 MHz, EIRP£  30 dBm
United States:
2400-2483.5 MHz, max output power£30dBm & EIRP £ 36 dBm 5150-5250 MHz, max output power£30dBm & EIRP £ 36 dBm 5250-5350 MHz, max output power<24dBm & EIRP £ 30 dBm 5470-5725 MHz, max output power<24dBm & EIRP £ 30 dBm 5725-5825 MHz, max output power£30dBm & EIRP £ 36 dBm Myanmar :
2400-2483.5 MHz, EIRP £  23 dBm
5725-5825 MHz, EIRP £ 30 dBm
Thailand:
2400-2483.5 MHz, EIRP £ 20 dBm
5150-5350 MHz, EIRP £ 23 dBm
5470-5725 MHz, EIRP £ 30 dBm
5725-5825 MHz, EIRP £ 30 dBm
Indonesia:
2400-2483.5 MHz, EIRP £ 27 dBm
5150-5350 MHz, EIRP £ 23 dBm
5725-5825 MHz, EIRP £ 23 dBm
Egypt:
2400-2483.5 MHz, EIRP £ 20 dBm
5150-5350 MHz, EIRP £ 23 dBm
Fixed Ports 1 x 10/100/1000Base-T Ethernet uplink port 4 x 10/100/1000Base-T Ethernet downlink ports 1 x Reset hole
Max. Number of
Concurrent STAs		 512

Software Features
Recommended Number of
Concurrent STAs		 110
Max. Number of SSIDs 8
Supported Frequency Bands 802.11b/g/n/ax: 2.400 GHz to 2.483 GHz 802.11a/n/ac/ax: 5.150 GHz to 5.350
GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz
(country-specific restrictions apply)

WLAN Basic Features
Power Adjustment ✔️
Channel Bandwidth                     2.4 GHz: Auto/20 MHz/40 MHz 5 GHz: Auto/20 MHz/40 MHz/80 MHz/160 MHz
Roaming Layer 2 roaming Layer 3 roaming 802.11k/v/r roaming
OFDMA ✔️
Beamforming ✔️
Target Wake Time (TWT)* ✔️
Wi-Fi Multimedia (WMM)) ✔️
Radar Signal Detection and Frequency Hopping (DFS) ✔️

WLAN Security
Wi-Fi Password 16 characters
Security Mode                                                                 WAP-PSK,WAP2-PSK,WPA-WAP2-PSK
Blocklist and Allowlist

✔️

Enhanced User Experience
Wi-Fi Optimization ✔️
STA Limiting ✔️
Removing Low-RSSI STAs ✔️
Removing Low-RSSI STAs ✔️
Syslog Recording Why Users Lose Connection ✔️

System
Auto Channel and Power
Adjustment on Cloud		 ✔️
RSSI Threshold for STA Access
Load Balancing ✔️

Networks
Network Access Mode PPPoE Client DHCP Client Static IP
Avoidance of WAN IP Address Conflicts ✔️
VLAN Port-based VLAN VLAN over 802.1Q TV projection screen
DHCP Server ✔️
Cloud Management ✔️
App Management ✔️
App Upgrade ✔️
App Restart ✔️
Scheduled Restart ✔️
Default Access/Password 10.44.77.254 The factory status password: admin
Local Upgrade ✔️
Online Upgrade ✔️
Backup ✔️
Factory Reset ✔️
Language Chinese English
System Log ✔️
Diagnostics ✔️
Network Check ✔️

Hardware Features
LED 1 x System status LED
Reset Hole                                                                                          1 x Reset hole
Dimensions (W x D x H) 124 mm x 86 mm x 24 mm (4.88 in. x 3.89 in. x 0.94 in.)
Weight                                                                                              0.5 kg (1.10 lbs)
Installation Method In-wall mounting
Mounting Bracket
Dimensions (W x D x H)		 122 mm x 80 mm x 3.8 mm (4.80 in. x 3.15 in. x 0.15 in.)
Mounting Hole Pattern Hole pattern 83.5 mm x 60 mm (3.29 in. x 2.36 in.)
Mounting Hole Diameter                                                              2.25 mm (0.09 in.)
Pole Diameter N/A
Power Supply                                                                                IEEE 802.3af/at PoE
Max. Power Consumption 12 W
PoE Power Budget                                                                                     N/A

Environment
Operating Temperature 0°C to 40°C (32°F to 104°F )
Storage Temperature                                                        –40°C to +70°C (–40°F to +158°F )
Operating Humidity 5% to 95% RH (non-condensing)
Storage Humidity                                                               5% to 95% RH (non-condensing)
Ingress Protection Rating
(IP Rating)		 IP41
Surge Protection                                                                                      +/–4kV
MTBF 400,000 hours
