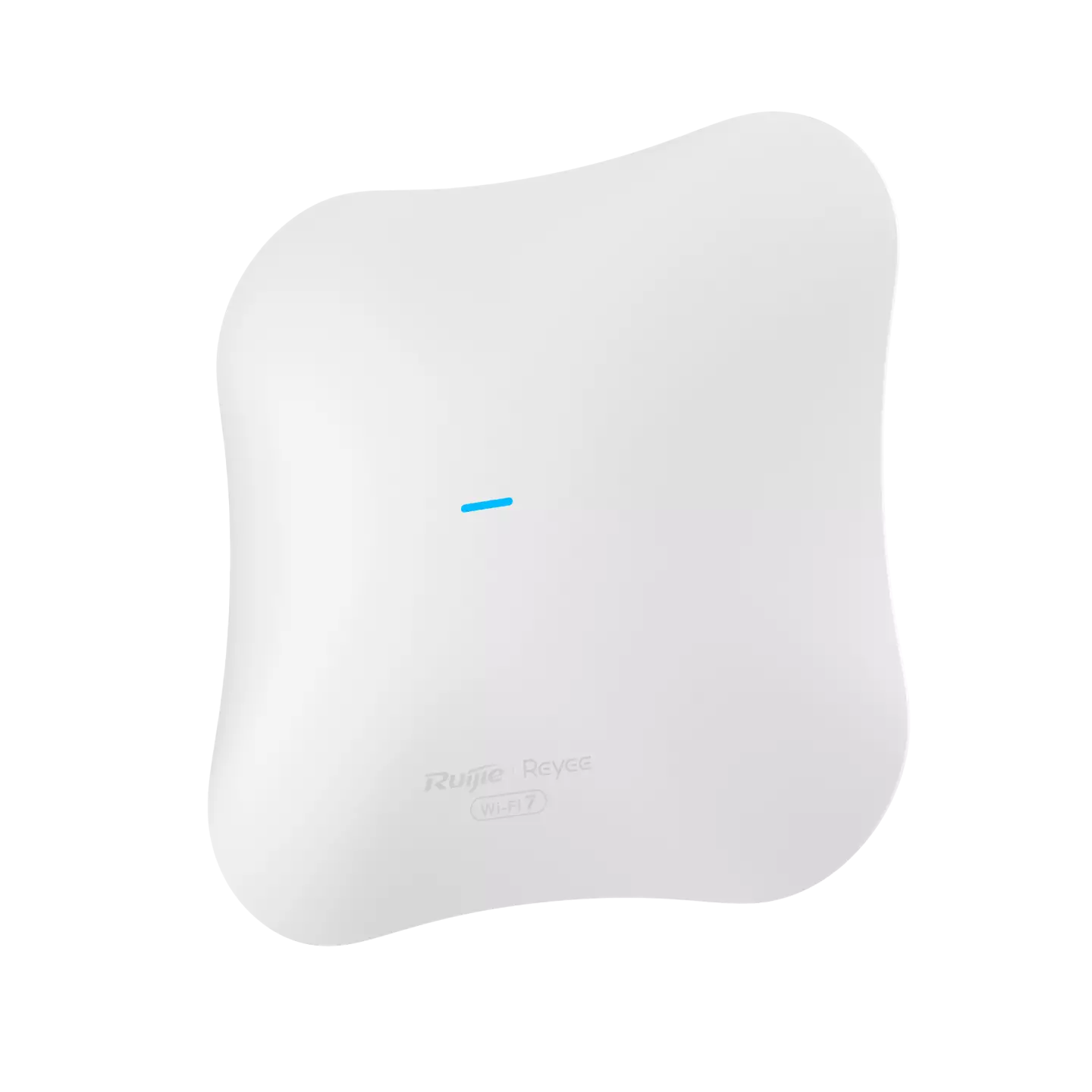

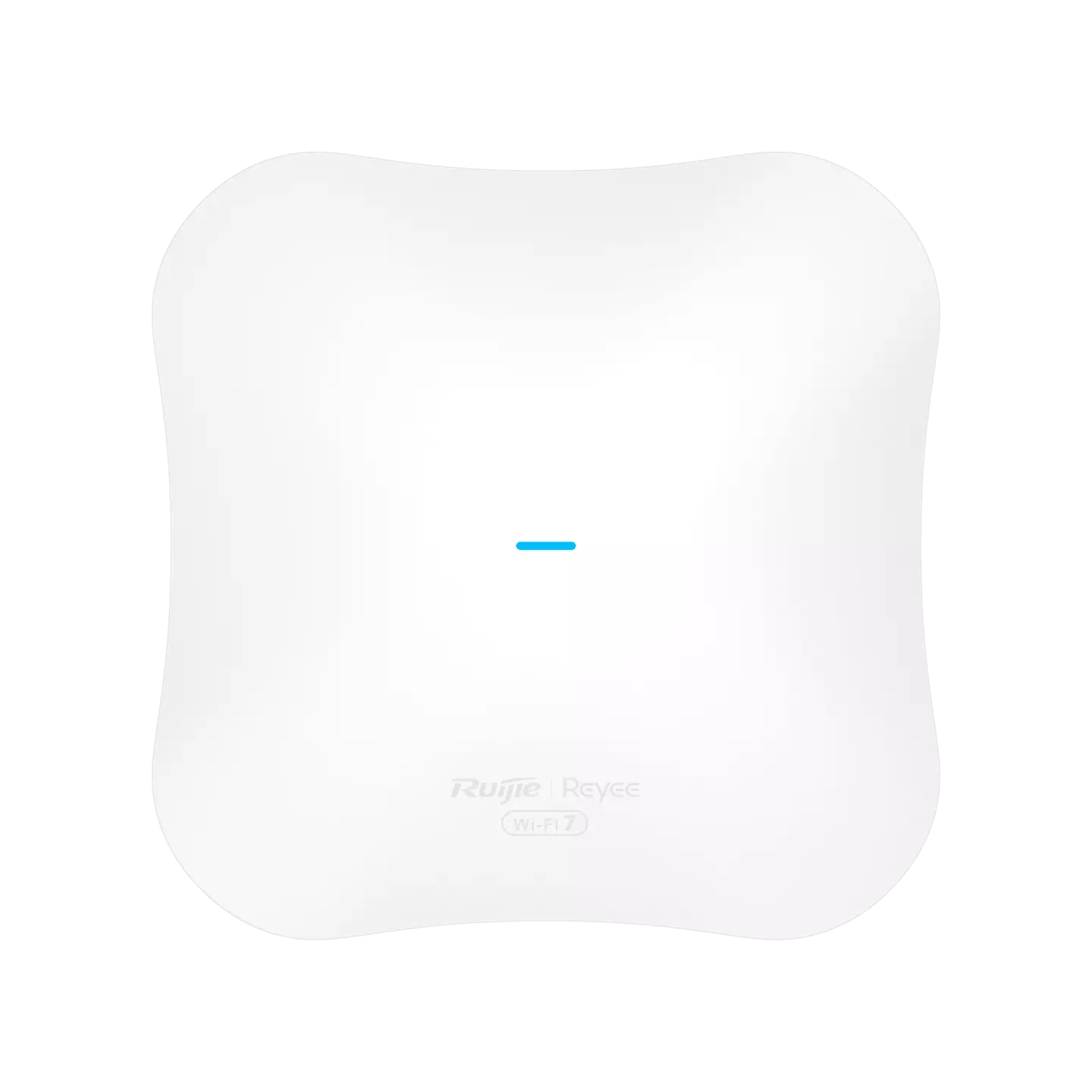

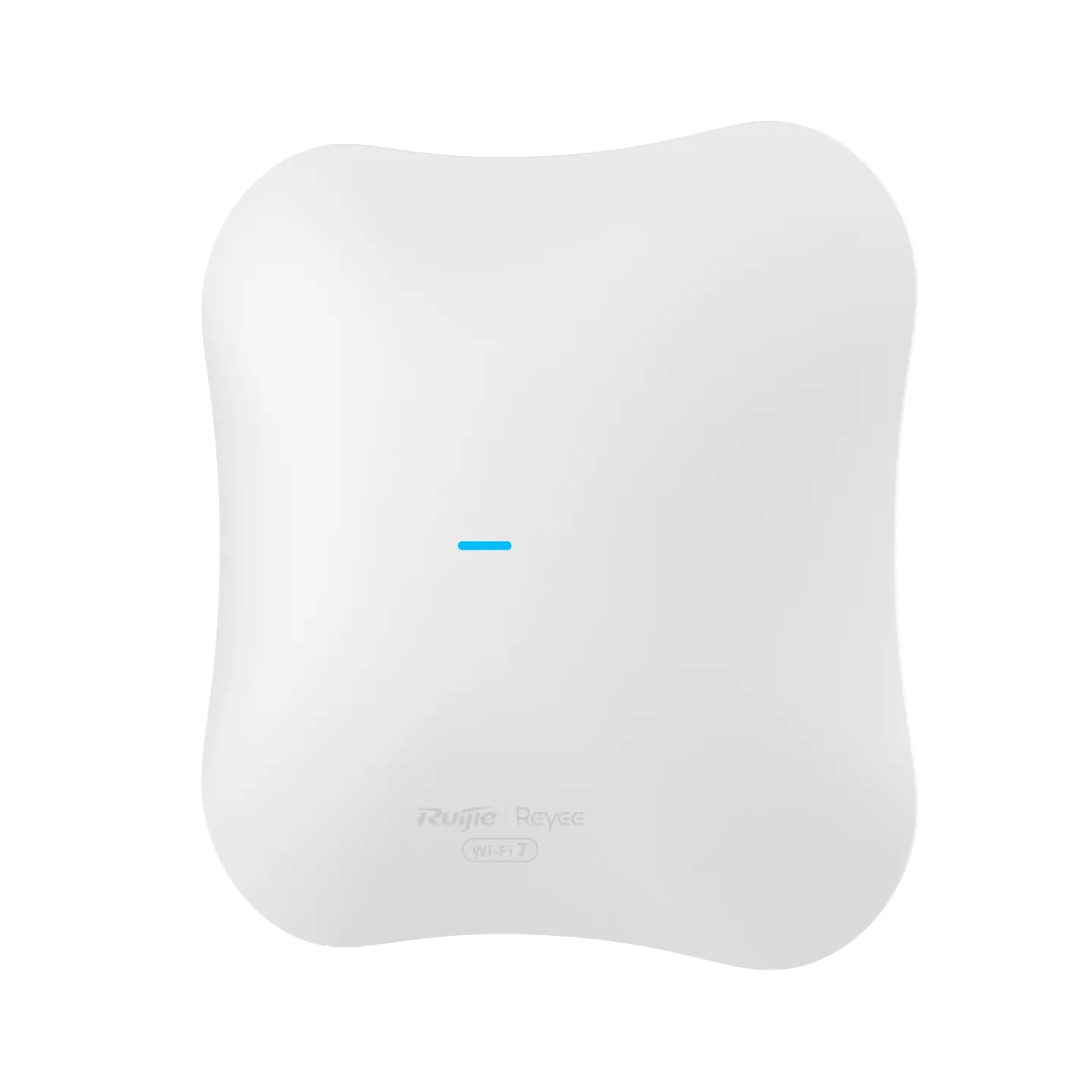

Ruijie Reyee Wi-Fi 7 BE5040 Dual-Band Ceiling Access Point RG-RAP72Pro
product-additional-image
product-additional-image
Ruijie Reyee Wi-Fi 7 BE5040 Dual-Band Ceiling Access Point RG-RAP72Pro
Ruijie Reyee Wi-Fi 7 BE5040 Dual-Band Ceiling Access Point RG-RAP72Pro
Ruijie Reyee Wi-Fi 7 BE5040 Dual-Band Ceiling Access Point RG-RAP72Pro

Ruijie Reyee Wi-Fi 7 BE5040 Dual-Band Ceiling Access Point RG-RAP72Pro

free-shipping Chat with us now to check the stock.
Exc. GST
$416.12
Inc. GST
$457.73
Eligible Coupon

Ruijie Reyee Wi-Fi 7 BE5040 Dual-Band Ceiling Access Point RG-RAP72Pro



  • Next-generation performance with Wi-Fi 7, delivering extra-high wireless speeds
  • Superior streaming with Wi-Fi 7's exclusive MLO feature
  • Compact design and easy installation
  • Enhanced data transmission with 4K-QAM for faster speeds
  • Ideal for integrating with enterprise switches to create a robust office network



Model RG-RAP72Pro

Hardware Specifications
Wi-Fi Protocols 5 GHz Wi-Fi4: IEEE 802.11a/n
Wi-Fi5: IEEE 802.11ac Wave2
Wi-Fi6: IEEE 802.11ax
Wi-Fi7: IEEE 802.11be
2.4 GHz Wi-Fi4: IEEE 802.11b/g/n
Wi-Fi6: IEEE 802.11ax
Wi-Fi7: IEEE 802.11be
Operating Frequency Bands (country-specific restrictions apply) 5 GHz 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz,
5.725 GHz to 5.850 GHz
2.4 GHz 2.400 GHz to 2.4835 GHz
Spatial Streams 5 GHz 3 spatial streams, 3x3 MIMO
2.4 GHz 2 spatial streams, 2x2 MIMO
Antenna Omni-
directional		 Yes
5 GHz Antenna
Gain		 2.0dBi
2.4 GHz
Antenna Gain		 3.0dBi
Channel Width 5 GHz Auto/20/40/80/160 MHz
2.4 GHz Auto/20/40 MHz
Data Rate Max
Throughput		 5011Mbps
5 GHz 4323Mbps
2.4 GHz 688Mbps
Max. Transmit Power 5 GHz 25dBm
2.4 GHz 24dBm
Wi-Fi Coverage Optimal Coverage N/A
Modulation Modulation OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-
QAM @ 24 Mbps, and 64-QAM @ 48/54 Mbps
DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps
MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256- QAM, 1024-QAM, and 4096-QAM
OFDMA
Receiver Sensitivity Receiver
Sensitivity		 11b: -91dBm(1Mbps)，-88dBm(5.5Mbps)，-
85dBm(11Mbps)
11a/g: -89dBm(6Mbps)，-80dBm(24Mbps)，- 76dBm(36Mbps)，-71dBm(54Mbps)
11n: -83dBm(MCS0)，-65dBm(MCS7)，-
83dBm(MCS8)，-65dBm(MCS15)
11ac: 20MHz: -83dBm(MCS0), -57dBm(MCS9)
11ac: 40MHz: -79dBm(MCS0), -57dBm(MCS9)
11ac: 80MHz: -76dBm(MCS0), -51dBm(MCS9)
11ac: 160MHz: -76dBm(MCS0), -50dBm(MCS9)
11ax: 20MHz: -85dBm(MCS0), -58dBm(MCS11)
11ax: 40MHz: -82dBm(MCS0), -54dBm(MCS11)
11ax: 80MHz: -79dBm(MCS0), -52dBm(MCS11)
11ax: 160MHz: -76dBm(MCS0), -49dBm(MCS11)
11be: 20MHz: –85dBm(MCS0), –52dBm(MCS13)
11be: 40MHz: –82dBm(MCS0), –49dBm(MCS13)
11be: 80MHz: –82dBm(MCS0), –46dBm(MCS13)
11be: 160MHz: –79dBm(MCS0), –44dBm(MCS13)
Dimensions (W x D x H) Dimensions
(excluding
mounting kits)		 208 mm x 208 mm x 40 mm
(8.19 in. x 8.19 in. x 1.57 in.)
Weight excluding
mounting kits		 ≤ 0.65 kg (1.43 lbs.)
Service Ports Number of
10/100/1000BA
SE-T Ports		 1
Number of
10/100/1000/25
00BASE-T Ports		 1
Number of
100/1000/2.5G/
5G/10GBASE-T
Ethernet Ports		 0
Power Supply DC(Local Power) Yes (12V/2.5A)
DC Port
Dimensions		 Outer Diameter: 5.5 mm Inner Diameter: 2.1 mm Length: 10 mm
802.3af Yes(1T1R)
802.3at Yes
802.3bt N/A
48 V passive
PoE		 N/A
PoE Out Max. PoE
Wattage by PSE		 No
Power Consumption Power
Consumption		 < 30W
Power Adapter Power Adapter No
Buttons Button 1 × Factory reset
LEDs LEDs 1 × System LED indicator(blue)
Environment Operating
Temperature		 0°C to +40°C (32°F to +104°F)
Storage
Temperature		 –40°C to +70°C (–40°F to +158°F)
Operating
Humidity		 5% to 95% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
Mounting Ceiling-mount Yes
Wall-mount Yes
Pole-mount No
Compliance Standards Health EN IEC 62311:2020
Spectrum EN 300 328 V2.2.2.2.2
EN 301 893 V2.1.1
EN 300 440 V2.2.1
Draft EN 303 687 V1.0.0
Weatherproof IP Rating IP41
Lightning
Protection/Surg e		 ±2 KV
Operating Mode (AP Mode and Router Mode) Router Mode Yes
AP Mode Yes
WLAN Recommended
Number of
Clients		 BW160 11BE/AX:16(2.4G)+94(5G)=110
BW80 11AX：16(2.4G)+84(5G)=100
11AC：16(2.4G)+64(5G)=80
Max. Number of SSIDs 8
Radio-based
STA Limit		 Yes
Layer 2 Client
Isolation		 Yes
OFDMA
Subcarrier		 Yes
OFDMA Yes
Target Wake
Time (TWT)		 No
Wi-Fi Multimedia (WMM) Yes
802.1Q VLAN Yes
Multi-Link Operation (MLO) Yes
4K-QAM Yes
Same SSID for Different VLANs Yes
Roaming 802.11k/v Yes
802.11r Yes
Layer 2
Roaming		 Yes
Layer 3
Roaming		 Yes
AI Roaming Yes
Security PSK
Authentication		 Yes
Static Blocklist
and Allowlist		 Yes
WPA (TKIP), WPA2 (AES), and WPA-PSK Yes
Security OWE (Enhanced
Open) WPA3-SAE WPA2-
PSK/WPA3-SAE		 Yes
802.1X Yes
ARP Check No
IP Source
Guard		 No
LLDP No
Static ARP
Binding		 Yes
Proxy ARP No
Ping Yes
Traceroute Yes
Routing NAT Yes
Static IP
Address		 Yes
DHCP Server Yes
PPPoE Client PPPoE Dial-up Yes
AP Mesh Mesh
Management		 Yes
Reyee Mesh Yes
Standalone Portal Captive Portal Yes
Bandwidth
Limit		 Yes
Data Quota No
Management and Maintenance Default
Access/Passwor d		 Yes
No. of APs on a Self-Organizing Network 300
Management and Maintenance Unified Networking for All Network
Equipment		 Yes
Local or
Remote
Management via Ruijie Reyee App		 Yes
Local
Management via the Web Interface		 Yes
Remote
Management
via Ruijie Cloud		 Yes
SNMP Yes
Platform Management Features Optimization of
Channel, Transmit Power, and
Management Frame Power Settings. Both Pre- and Pro- Optimization Settings are Displayed.		 Yes
Unified
Configuration
via Ruijie Cloud		 Yes
Unified Monitoring via Ruijie Cloud Yes
Flash Flash 256MB
Mem ory Memory 512MB
Color of AP Enclosure Color of AP
Enclosure		 Warm White
