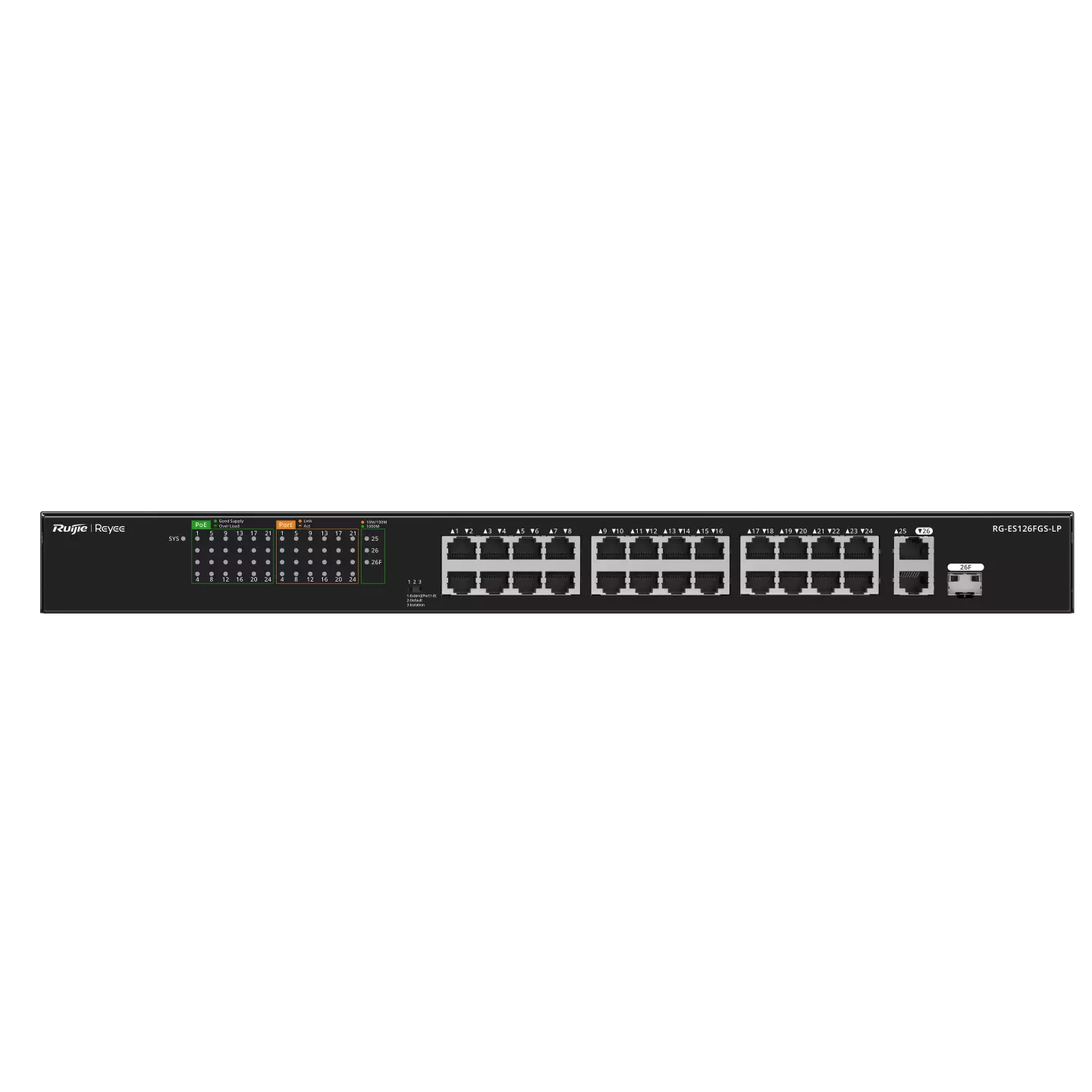

Ruijie 24-Port 10/100 Mbps with 2-Port Gigabit Unmanaged PoE Switch RG-ES126FGS-LP
Chat with us now to check the stock.
Exc. GST
$477.12
Inc. GST
$524.83
Eligible Coupon
- RG-ES126FGS-LP
- BRANDS, NETWORKING
Ruijie 24-Port 10/100 Mbps with 2-Port Gigabit Unmanaged PoE Switch RG-ES126FGS-LP
Features:
- 24-port 10/100 Mbps with 2-port Gigabit unmanaged PoE switch
- Unmanaged switch, which is visible on Ruijie Cloud
- Intelligent and secure CCTV network
- Intelligent PoE Management
- High-quality design
- Applicable to various scenarios
| Specifications | RG-ES126FGS-LP | |
| Hardware Specifications | ||
| Port | Total Number of RJ45 Ports | 26 |
| Total Number of Optical Ports | 1 | |
| Number of Combo Ports | 1 | |
| Number of 1GE SFP ports | 1 | |
| Number of 100M Ethernet RJ45 ports | 24 | |
| Number of 1GE RJ45 ports | 2 | |
| POE | Number of PoE in ports | 24 |
| Number of PoE/PoE+ out ports | 24 | |
| PoE budget | 180W | |
| PoE power pins | 1 2+, 3 6- | |
| System Specifications | Forwarding rate | 6.55Mpps |
| Switching capacity | 8.8Gbps | |
| Power | Power input | Rated voltage range: 100- 240V~ Maximum voltage range: 90- 264V~ Frequency: 50/60Hz Rated current: 3.5A |
| Maximum power consumption | Less than 20W with no PoE load Less than 200W with PoE full load | |
| Input power supply | Single fixed power supply | |
| FAN | Fan | 1 |
| Fan speed adjustment | N/A | |
| Heat dissipation | Less than 68.4 BTU/hr(220V/ 50Hz) with no PoE load Less than 13338 BTU/hr(220V/ 50Hz) with PoE full load |
|
| Acoustic noise | <40dB (when the device works normally) | |
| Button | DIP switch | Extend mode: The rate of Ports 1 to 8 is reduced to 10 Mbps, but the maximum transmission distance can be up to 200 meters (Cate5e cables required).Flo w Control On Default mode: All ports can communicate with each other.Flow Control On Isolation mode: Ports 1 to 24 cannot communicate with each other, but they can communicate with ports 25 and 26.Flow Control On |
| EMC | EMC | EN 55032:2015+ AC:2016 EN 61000-3- 2:2014 EN 61000-3- 3:2013 EN 55035:2017 ETSI EN 300 386 V2.1.1 (2016-07) |
| Safety Compliance | Safety compliance | EN 62638-1 |
| Certification | CE, FCC | CE |
| Mounting | Mounting | Rack installation |
| Casing | Casing | Metal |
| Cable Hot- Swappable | Hot swapping of cables | Supported by all ports |
| Mean Time Between Failure (MTBF) | MTBF | >200K |
| Warranty | Warranty Card | 3 |
| Environment and Reliability | Operating temperature | 0 to 45°C |
| Storage temperature | -40~70ºC | |
| Operating humidity | 10% to 90% RH(non- condensing) |
|
| Storage humidity | 5% to 95% RH(non- condensing) |
|
| Operating altitude | -500~5000M | |
| ESD protection | Air Discharge: 8kV Contact Discharge: 6kV |
|
| Surge protection | Common Mode 4kV | |
| Surge protection | Common Modeļ¼6kV |
|
| Differential mode 6kV | ||
| Package Contents | Dimensions (W x D x H) | 440mm*214. 9mm*44mm |
| Weight | 2.64kg | |
| Shipping weight | 3.2KG(packag es included) | |
| Rack-mount bracket | 2 | |
| Screw | M4 Screw*6 | |
| User Manual | 1 | |
| Rubber pad | N/A | |
| Input power supply | Single fixed power supply | |
| Warranty Card | 1 | |
| L2 | ||
| port | Port flow control | Yes |
| PoE watchdog | Yes | |
| Port isolation | Yes | |
| Ultra-long-haul transmission | Yes | |
