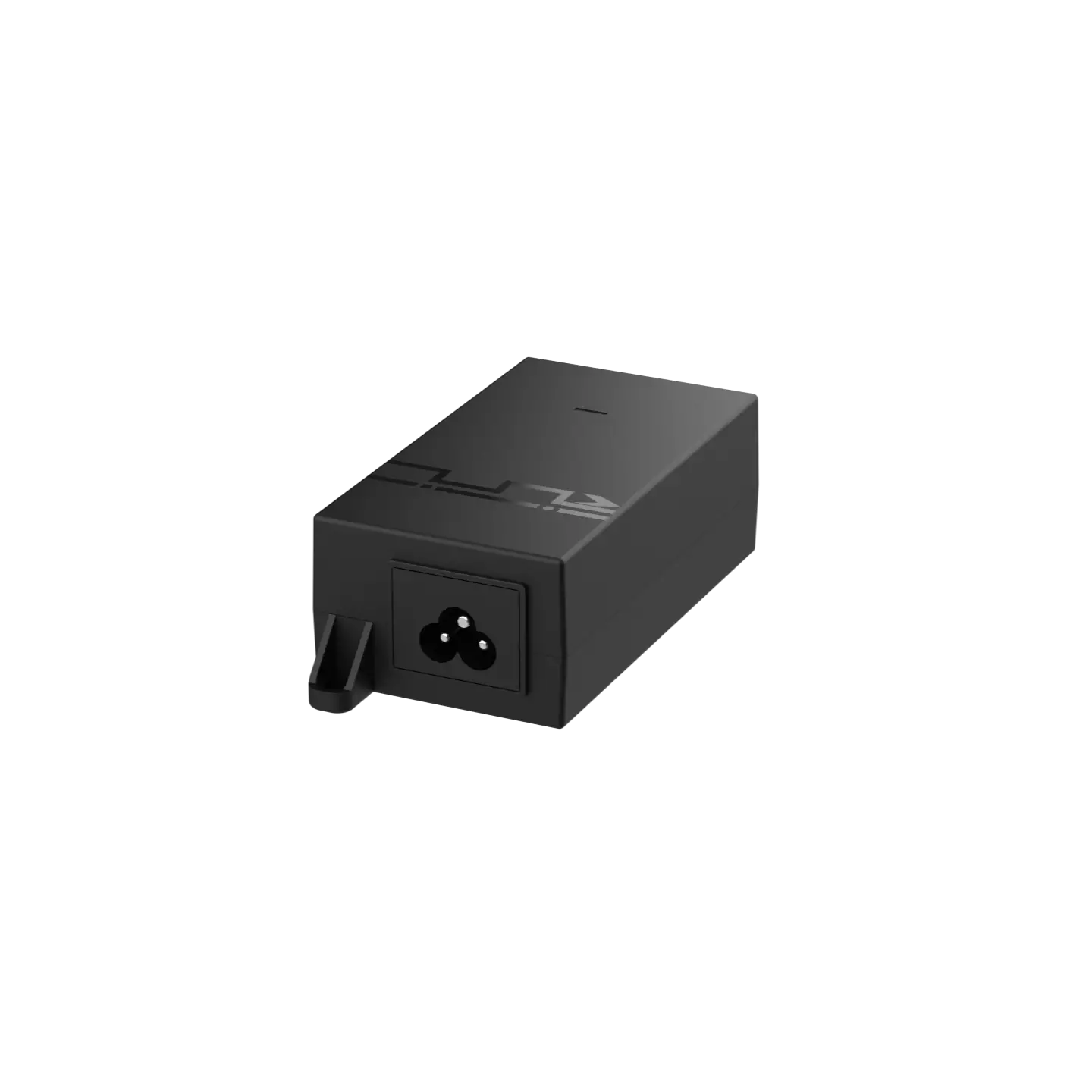

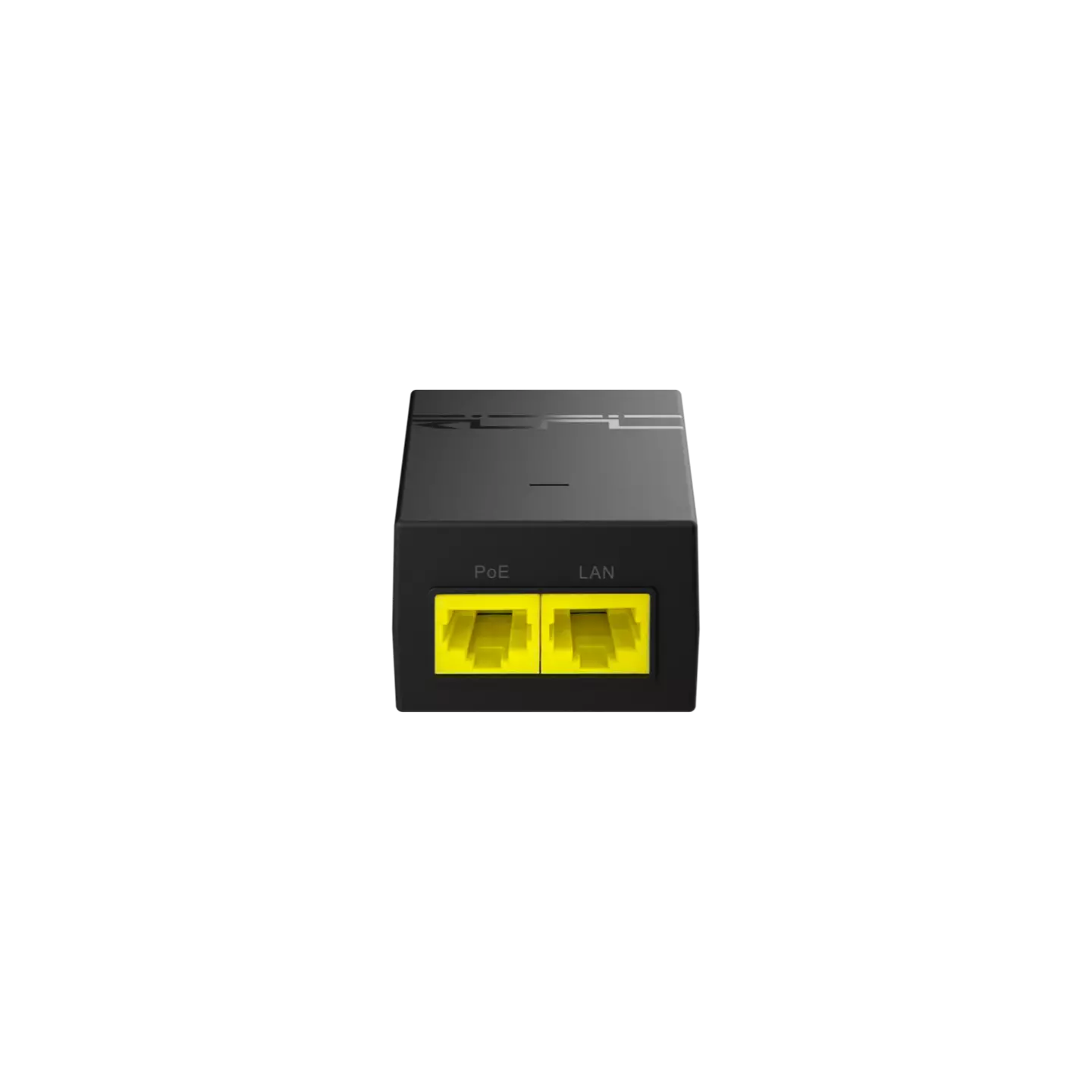

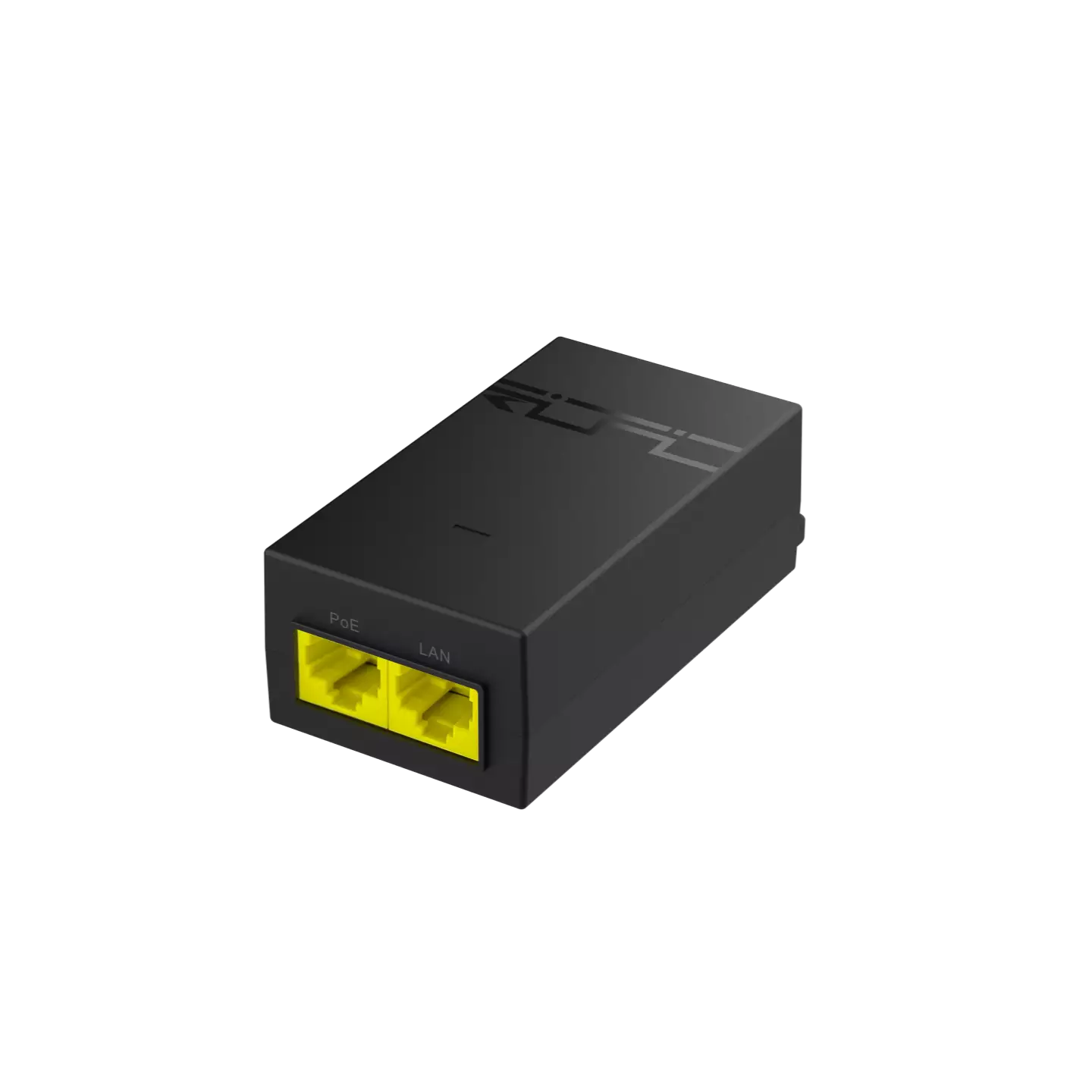

Ruijie 1-Port PoE Injector (1000Base-T, 52 V, 15.6 W) RG-POE-AF15
Exc. GST
$28.84
Inc. GST
$31.72
Eligible Coupon
- RG-POE-AF15
- BRANDS, NETWORKING
Ruijie 1-Port PoE Injector (1000Base-T, 52 V, 15.6 W) RG-POE-AF15
- Stable and high-performance power supply to the AP
- Wide operating temperature range from -10℃ to +45℃
- High surge protection rating
Specifications:
| Model |
RG-POE-AF15 |
| Dimensions | 92x46.5x29.5±1mm (3.622 x 1.83x 1.16) |
| Weight | 95±5g(3.35 Oz) |
| Output Voltage |
52V DC @ 0.3A |
| Gigabit LAN Port | 1G |
| Remote Reset Capability |
No |
| PoE Standard | Passive PoE, 52V, 15.6W |
| Rated Voltage |
100-240VAC @ 50/60Hz |
| Input Current | 0.5A(Max) |
| Inrush Current |
<80A@230Vac |
| Efficiency | 84.32% |
| Output Ripple |
≤200mVp-p |
| Switching Frequency | 65KHZ |
| Line Regulation |
≤5% |
| Load Regulation | ≤5% |
| 2-Pair Powering |
Pins 4, 5 (+) and Pins 7, 8 (-) |
| 4-Pair Powering | NA |
| Operating Temperature |
﹣10℃ TO 45℃(14 to 113° F) |
| Storage Temperature | ﹣40 to 70°C (﹣40 to 158° F) |
| Operating Humidity |
5~95% Noncondensing |
| AC Connector | IEC-320 C8 |
| Data IN / POE |
RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection |
NA |
| Max. Surge Discharge | 2000A (8/20 µs) Power |
| Peak Pulse Current | 36A (10/1000 µs) Data |
| Shunt Capacitance | <5 pf data |
| Response Time | <1 ns |
| Certifications | CE, CB |
