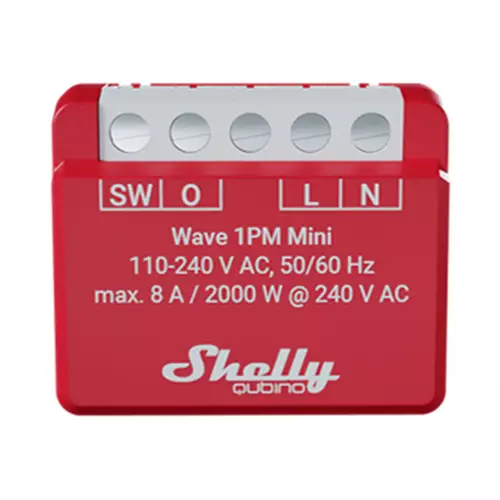

Shelly Wave 1PM Mini AU SH-SHELLYWAVE1PM-M

Power supply

110 - 240 V AC, 50/60 Hz

Power consumption

< 0,3W

Power measurement [W]

Yes

External protection

10 A, tripping characteristic B or C

6 kA interrupting rating

Energy limiting class 3

Max. switching voltage AC

240 V

Max. switching current AC

8 A

Max switching power AC:

2000 W

Max. switching voltage DC

N/A

Max. switching current DC

N/A

Overheating protection

Yes

Overcurrent protection

Yes

Overvoltage protection

Yes

Distance

Up to 40 m indoors (131 ft.) (depends on local condition)

Z-Wave® repeater:

Yes

CPU

Z-Wave® S800

Z-Wave® frequency bands:

919.8 MHz

Maximum radio frequency power transmitted in frequency band(s)

< 25 mW

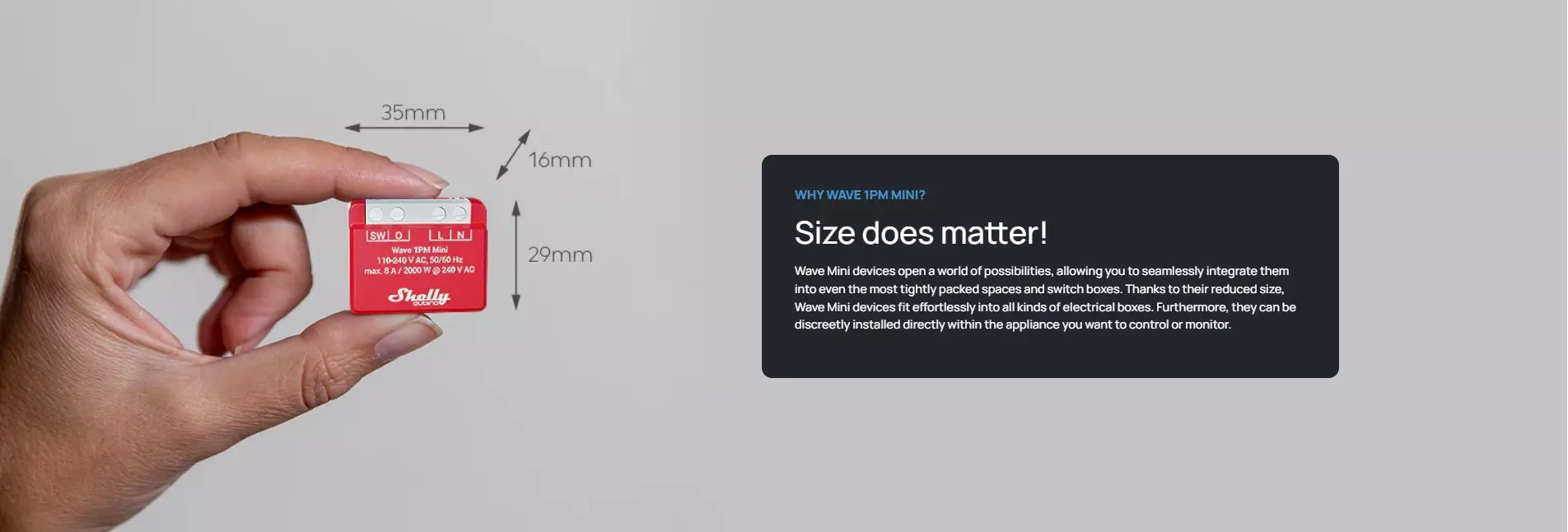

Size (H x W x D)

29x35x16 ± 0.5 mm / 1.11x1.35x0.63 ± 0.02 in

Weight

18 ± 1 g / 0.63 ± 0.04 oz

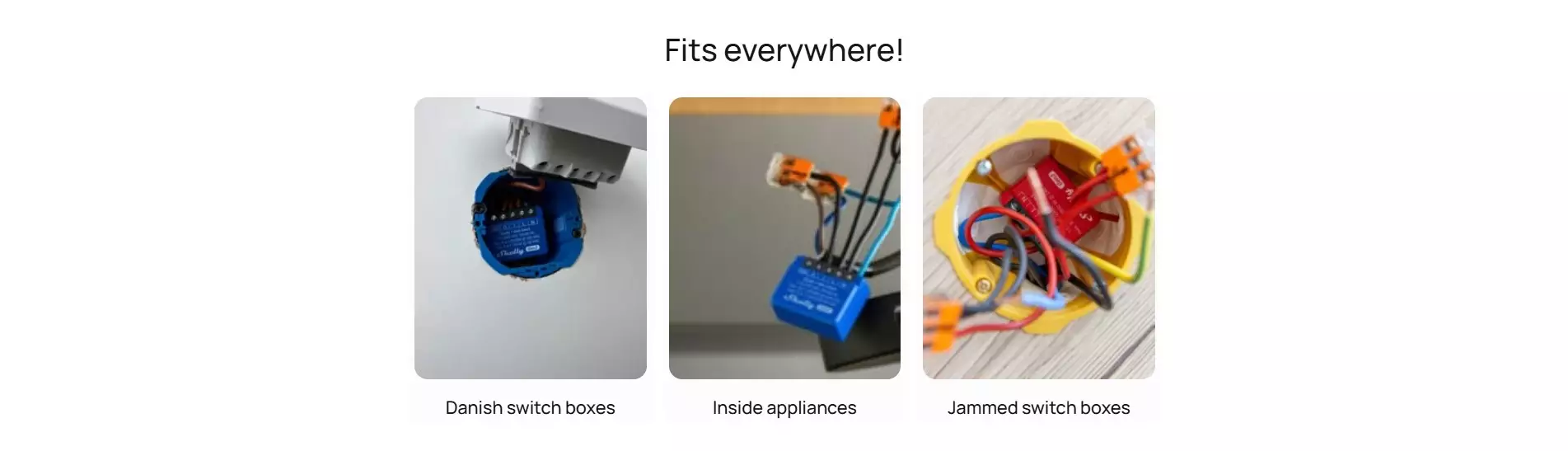

Mounting

In-wall box

Screw terminals max. torque

0.4 Nm / 3.54 lbin

Conductor cross section

0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)

Conductor stripped length

6 to 7 mm / 0.24 to 0.28 in

Shell material

Plastic

Color

Red

Ambient temperature

-20°C to 40°C / -5°F to 105°F

Humidity

30% to 70% RH

Max. altitude

2000 m / 6562 ft.
