Shelly Quibino Wave 1 SH-SHELLYWAVE1
- SH-SHELLYWAVE1
- BRANDS, SECURITY & AUTOMATION

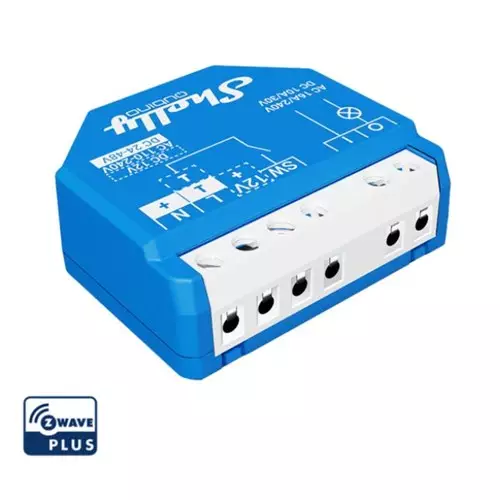

Shelly Quibino Wave 1 SH-SHELLYWAVE1
Z-Wave smart switch with dry contacts allows you to connect various power supply loads to the device, such as electrical locks, gates, garage doors, irrigation system, and lights.
Features
- Dry contacts
- Extremely low power consumption: 0.3 W.
- Latest technology: Z-Wave 800 Series
- Z-Wave frequency band: 868.4 MHz (CEPT countries)
- Automatic set-up with SmartStart
- Security 2 Authenticated for the highest level of security
- Supports over-the-air firmware updates (OTA)
- Works with Z-Wave certified gateways and over 4,000 Z-Wave devices
Specifications:
|
Power supply |
110-240 V AC / 24-48 V DC / |
|
Power consumption |
< 0.3 W |
|
Max. switching voltage AC |
240 V |
|
Max. switching current AC |
16 A |
|
Max. switching voltage DC |
30 V |
|
Max. switching current DC |
10 A |
|
Overheating protection |
Yes |
|
Distance |
Up to 40 m indoors (131 ft.) (depends on local condition) |
|
Z-Wave® repeater |
Yes |
|
CPU |
Z-Wave® S800 |
|
Z-Wave® frequency band |
868,4 MHz |
|
Maximum radio frequency |
< 25 mW |
|
Size (H x W x D) |
37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in |
|
Weight |
26 g / 0.92 oz. |
|
Mounting |
Wall console |
|
Screw terminals max. torque |
0.4 Nm / 3.5 lbin |
|
Conductor cross section |
0.5 to 1.5 mm² / 20 to 16 AWG |
|
Conductor stripped length |
5 to 6 mm / 0.20 to 0.24 in |
|
Shell material |
Plastic |
|
Color |
Blue |
|
Ambient temperature |
-20°C to 40°C / -5°F to 105°F |
|
Humidity |
30% to 70% RH |
|
Max. altitude |
2000 m / 6562 ft |
