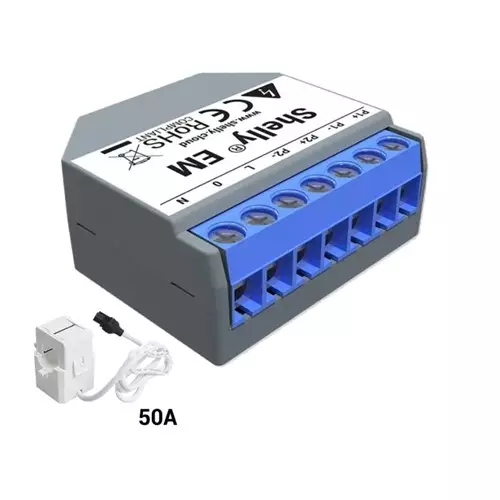

Shelly Single Phase Energy Meter Kit SHELLYEM-KIT
- SHELLYEM-KIT
- BRANDS, SECURITY & AUTOMATION
Shelly Single Phase Energy Meter Kit SHELLYEM-KIT
Wi-Fi-operated energy meter which allows you to simultaneously monitor the consumption of any home appliances, electric circuits and office equipment in 2 circuits on the same phase or individually.
Features:
- Power metering - two independent measurement channels
- Current metering up to 120 A per channel
- One contactor control (or load up to 2A)

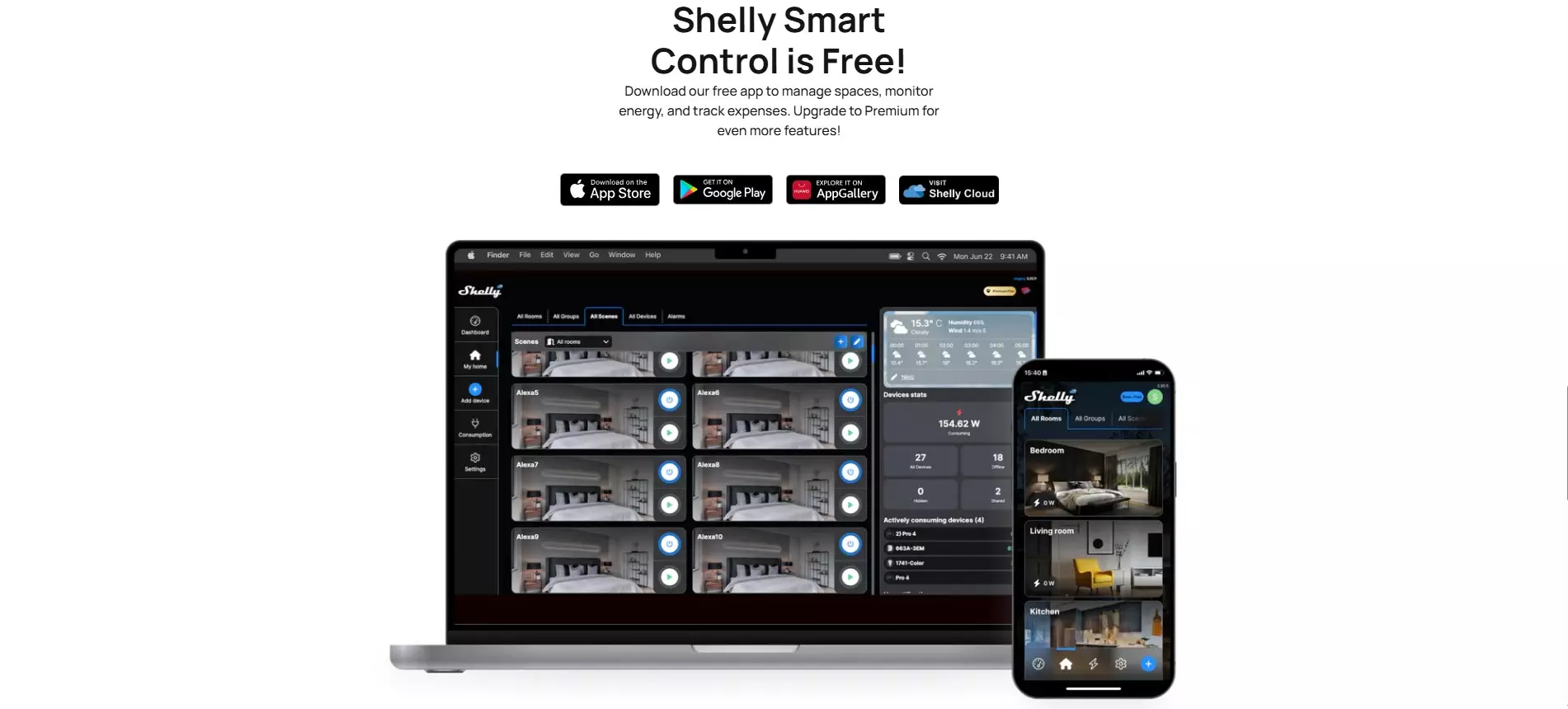

- Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
Specifications:
|
POWER |
|
|
Power supply AC |
110-240 V, 50/60Hz |
|
Power supply DC |
No |
|
SPECIAL FUNCTIONS |
|
|
Contactor Control |
Yes – max 2A |
|
Roller shutter mode |
No |
|
Device temperature protection |
Yes |
|
Overload protection |
No |
|
Power measurement |
Yes |
|
FEATURES |
|
|
Channels |
2 Channel (Single phase) |
|
Operational temperature |
-20 °C to 40 °C |
|
Device power consumption |
< 1 W |
|
Intelligent On/Off |
Yes |
|
Local and remote control |
Yes |
|
Sunrise/Sunset |
Yes |
|
Weekly Schedule |
Yes |
|
UL Listed option |
No |
|
CONNECTIVITY |
|
|
RF band: |
2401-2483 МHz |
|
Max. RF power: |
<20 dBm |
|
Wi-Fi protocol: |
802.11 b/g/n |
|
Wi-Fi Range: |
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
|
DIMENSIONS |
|
|
Size |
39mm x 36mm x 17 mm |
