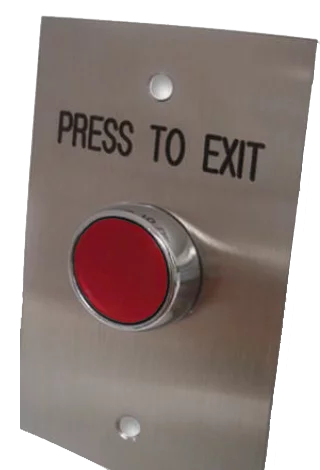

Smart Red Shrouded Button Flat Stainless Steel Plate SMART4355R

Chat with us now to check the stock.
Exc. GST
$103.03
Inc. GST
$113.33
  • * Please contact us about stock information
  • SMART4355R
  • ACCESS CONTROL, BRANDS

Overview:



Product Series: 800FP
Certifications: UR UL CSA CCC CE RoHS
Shipping Approvals: ABS (American Bureau of Shipping)
Component Type Pushbutton and Pilot Lights: Mushroom
Colour, Operator: Red, Green & Black
Diameter, Operator: 40 mm
Dielectric Strength: 2.5kV for 1 minute V AC
Operating Force: 3.6 N
Relative Humidity, Max: 95 %RH
Relative Humidity, Min: 50 %RH
IP Rating: IP65 IP66 IP69K
Material, Bezel: Glass-Filled Nylon / PA6 / PA66 (Polyamide 6)
Standards Compliance: NEMA ICS-5 UL 508 EN 60947-1 EN 60947-5-1 EN 60947-5-5 IEC 60947-1 ISO 13850
Material, Body / Housing: Plastic material
Material, Operator: Plastic material
Material, Spring: Stainless Steel
Mounting: 22.5mm Mounting
Operator Action: Momentory
Operator Type: Mushroom Head type
Mechanical Service Life: 300000 cycles
Shock Acceleration (Max.): 100 g
Shock Duration (Max.): 11 ms
Operating Temperature, Max: 70 °C max
Operating Temperature, Min: -25 °C min
Storage Temperature, Max: 85 °C max
Storage Temperature, Min: -40 °C min
Tightening Torque, Max: 0.9 Nm
Tightening Torque, Min: 0.7 Nm
Tightening Torque, Nominal: 1.7 Nm
Vibration Acceleration (Max.): 10 m/s²
Vibration Displacement (Peak to Peak Max.): 1.52 mm
Vibration Duration (Max.): 180 min
Vibration Frequency, Operational (Max.): 2000 Hz
Wire / Conductor Size (Min): 0.75 mm² min
CE Marked: Yes
Contact Block Included: No
Coupling Plate Included: No Y / N
Illuminated: No Y / N
Key: No Y / N
RoHS Approved: Yes
