Smart Vandal Resistant EM/HID Format Reader SMART9010
- SMART9010
- ACCESS CONTROL, BRANDS
Overview:
The proximity reader iPR-3 is intended to be applied in different access control systems, using RS232, Wiegand 26, Wiegand 37, Wiegand 42, or TouchMemory interface.
The interface type is to be changed by a special PC program. If you need to change the interface type please call your distributor.

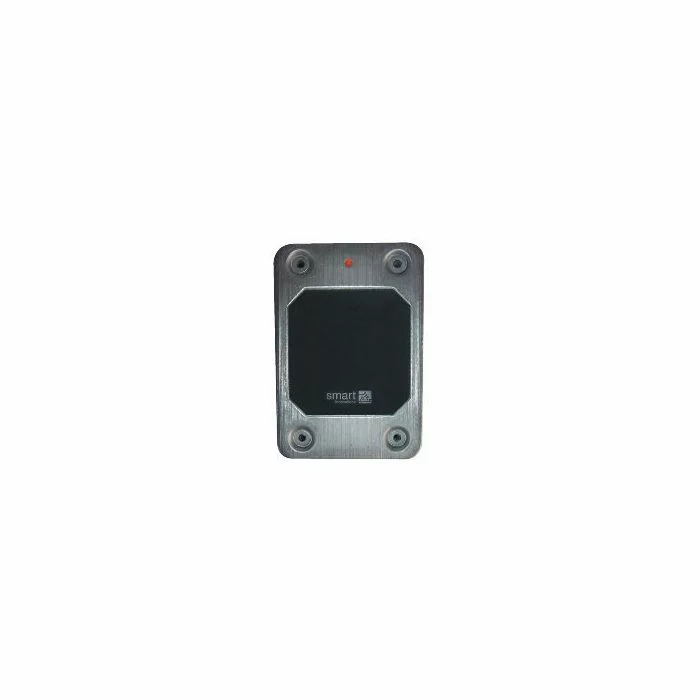

The reader is placed in a hermetic vandal-proof case made of polished stainless steel with an LED indicator on the front cover.
Types of cards:
Integrated Technical Vision Ltd manufactures readers operating with
amplitude modulation (ASK) proximity cards and tags.
Distance of reading
The typical reading distance is 35-40 mm and depends on the tag type used
with it. This parameter is valid for power supply voltage range from +13.5
VDC and ripple up to 150 mV
Specification:
| Case | |
| Material | 1.5mm thick stainless steel |
| Dimensions | 110 x 80 x 15 mm |
| Weight | 150 g |
| Ambient Conditions | |
| Oper. temp | -35 0C ... +60 0C; |
| Stor. temp | -30 0C … +80 0C; |
| Humidity | 100% rel. at +25 0C |
| Electrical | |
| Voltage | +9. . . +16 VDC |
| Current | up to 50 mA |
| Max Current | up to 80 mA |
| Voltage Ripple | up to 500 mVp-p |
