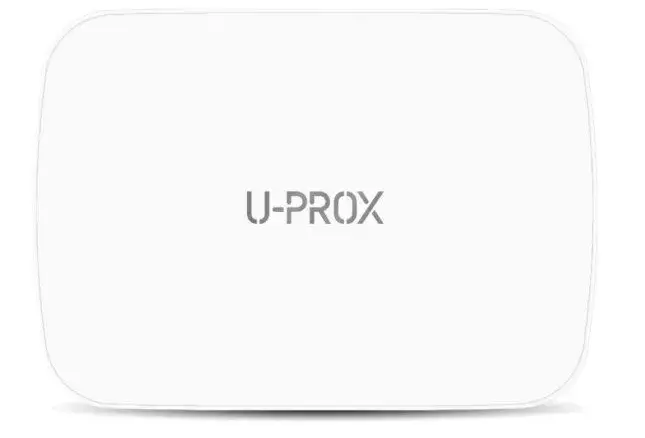

U-prox 8 Zone Expander

Inputs

8, EOL supervised (Zl ... Z8)

Output

1 relay (NO C)

LED

3V

Power output

2 outputs, AUX and SWA (switchable output), resettaöle fuse protected,

200 rnA@12"

Power supply

10.8 ...13.8VDC

Battery backup

Two 2500 mAh batteries, up to 10 hours (8 wired detectors, 15 mA each)

Radio frequency

ISM-band wireless interface with several channels, up to 4800m (in line of sight)

Parameters of radio

•    ITU region 1 (EU, UA): 868.0 to 868.6 MHz, bandwidth IDOkHz, 20 mW max., up to 4800m (in line of sight)

•    ITU region 3 (AU): 91 6.5 to 91 7 MHz, bandwidth I DOkHz, 20 rnw max., up to 4800m (in line of sight)

Communication

Secure two way communication, sabotage detection, key - 256 bits

Operating temperature range

0°C … +45°C

Dimensions

167 x 120 x 38 mm

Case colour

white

Weight

0,64 kg

Complete set

1. U-Prox Multiplexer:
2. Two 18650 batteries (pre-installed);
3. Quick start guide
