Uniview 16 Channel 2 SATA interfaces - NVR302-16E2-P16-IQ

free-shipping Chat with us now to check the stock. Canberra: Out of Stock | Sydney: Out of Stock | Brisbane: Out of Stock | Melbourne: Out of Stock | Perth: Out of Stock
Uniview 16 Channel Up to 12 Megapixels resolution recording with 2 SATA HDDs, Up to 10TB for each HDD
Login to See Better Price
* FIND A CHEAPER PRICE WE WILL BEAT IT BY 1% TO 5%
  • * Please contact us about stock information
  • NVR302-16E2-P16-IQ
  • 36
  • CCTV, BRANDS

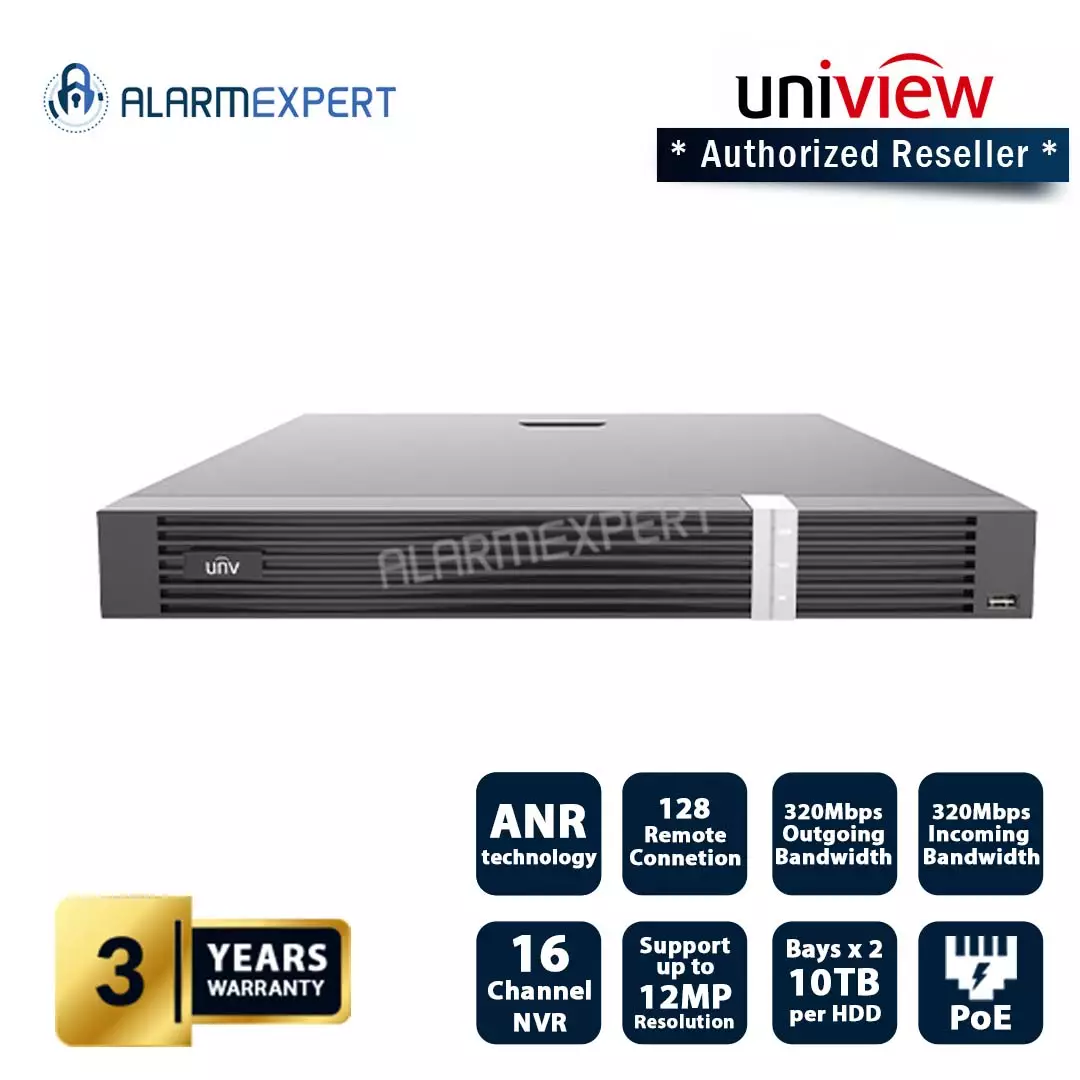

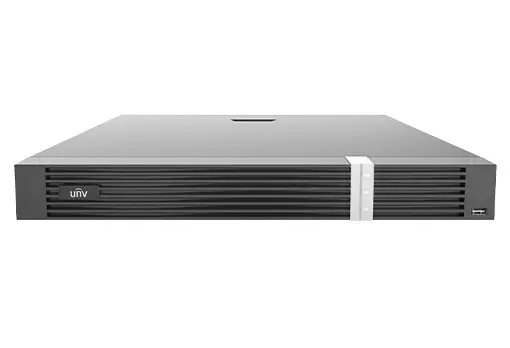

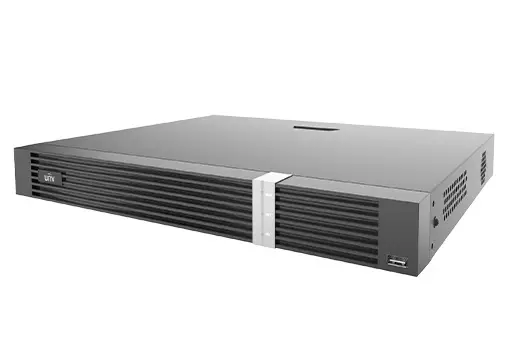

Uniview 16 Channel 2 SATA interfaces



Uniview

Features:



  • Support Ultra H.265/H.265/H.264 video formats
  • 8/16-channel input
  • Plug & Play with 8/16 independent PoE network interfaces
  • Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
  • Support HDMI and VGA simultaneous output
  • Up to 12 Megapixels resolution recording
  • 2 SATA HDDs, Up to 10TB for each HDD
  • Various fisheye dewarping modes for live view and playback for both web interface and GUI
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
  • The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.



Specifications:



Model NVR302-08E2-P8-IQ NVR302-16E2-P16-IQ
Video/Audio Input
IP Video Input 8-ch 16-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth Smart Off: 320Mbps
Smart On: 160Mbps
Outgoing Bandwidth Smart Off: 320Mbps
Smart On: 160Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS,DNS,DDNS,SNMP,SMTP,NFS
Browser IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows
Video/Audio Output
HDMI/VGA Output VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI:
4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Audio Compression G.711A, G.711U
Synchronous Playback 8-ch 16-ch
Live View Display 1/4/6/8/9 1/4/6/8/9/16
Corridor Mode Screen 3/4/5/7/9 3/4/5/7/9/10/12/16
Snapshot
FTP/Schedule/Event Snapshot 16-ch snapshot, up to 1080P resolution
Decoding
Decoding Format Ultra 265, H.265, H.264
Live View/Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability Smart Off: 1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 10 x 1080P@30, 22 x 720P@30, 32 x D1
Smart On: 1 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 18 x 720P@30, 32 x D1
Hard Disk
SATA 2 SATA interfaces
Capacity Up to 10TB for each disk
eSATA NA
Disk Group Support
Smart
VCA Detection by Camera Intrusion Detection, Cross Line Detection, Enter Area, Leave Area,  Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Ultra Motion Detection(UMD)
NVR Smart Smart Intrusion Prevention (SIP), UMD
VCA Search Behavior Search, Vehicle Search
People Counting People Flow Counting, Crowd Density Monitoring
SIP by NVR with normal cameras 4-ch
UMD by NVR 8-ch
SIP, Vehicle Detection, UMD by Camera Total 8-ch
General Alarm
General Alarm Motion, Tampering, Human Body Detection, Video Loss, Input Alarm, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB Interface Front panel: 1 x USB2.0,Rear panel: 1 x USB3.0
RS232 NA
RS485 1
Alarm In 8-ch
Alarm Out 2-ch
PoE
Interface 8 RJ-45 10M/100M self-adaptive Ethernet Interface 16 RJ-45 10M/100M self-adaptive Ethernet Interface
Max Power Max 30W for single port
Max 130W in total
Max 30W for single port
Max 240W in total
Supported Standard IEEE 802.3af/at
General
Power Supply 52V DC/2.5A
Power Consumption: ≤ 15W (without HDD)
52V DC/4.6A
Power Consumption: ≤ 20W (without HDD)
Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 380mm × 318mm × 53mm (15.0" × 12.5"× 2.1")
Weight (without HDD) ≤1.8Kg (3.97lb)
Certification
Certification CE, FCC, UL, RoHS, WEEE
CE EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCC Part15 Subpart B, ANSI C63.4
