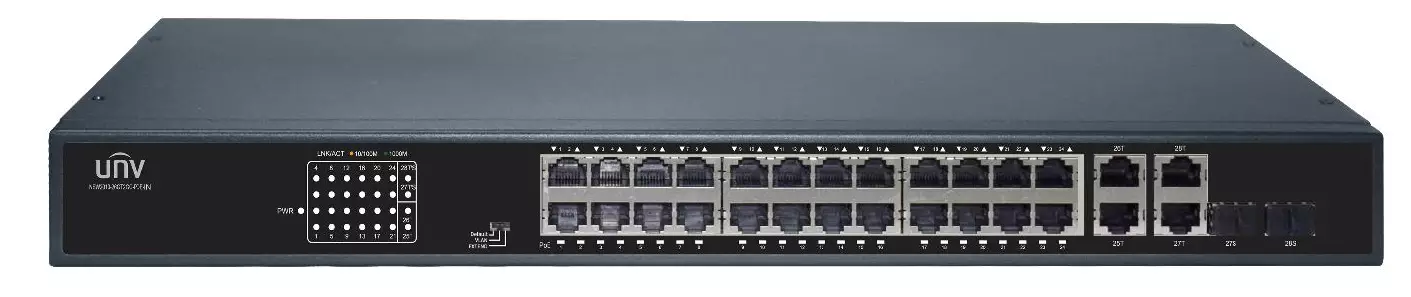

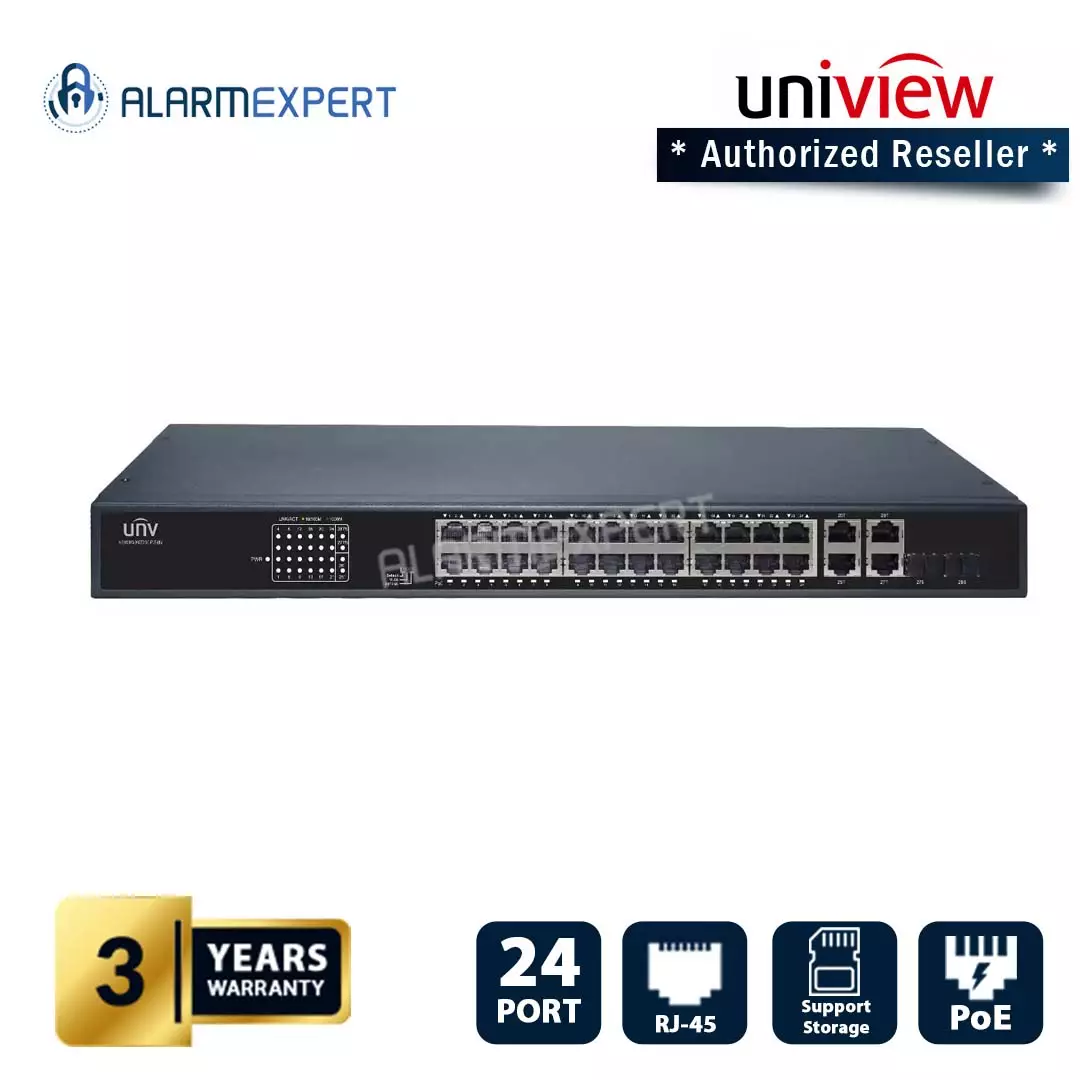

Uniview 24 Port Gigabit Ethernet Switch NSW2010-26GT2GC-POE-IN
Chat with us now to check the stock.
Canberra: Out of Stock
|
Sydney: Out of Stock
|
Brisbane: Out of Stock
|
Melbourne: Low Stock
|
Perth: Out of Stock
* FIND A CHEAPER PRICE WE WILL BEAT IT BY 1% TO 5%
Uniview 24 Port Gigabit Ethernet Switch NSW2010-26GT2GC-POE-IN
Overview:
Features:
- Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)
- Supports PoE Power up to 30W for each PoE port;
- Auto detect power device; will not burned non-standard PoE device or normal PoE switch;
- Supports port power supply prioritization, guarantee the continuous power supply of key nodes;
- Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
- Line-speed forwarding, intelligent identification
- Supports storage – and- forward for Data exchange;
Specifications:
| Model | NSW2010-26GT2GC- POE-IN | |||
| Ports | 24×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45)+2×1000Mbps ports（Combo） |
|||
| Standards | IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x,I EEE802.3af,IEEE802.3at,IEEE802.3az | |||
| Switching capacity | 56Gbps | |||
| Forwarding performance | 41.7Mpps | |||
| Packet Buffer | 4Mbit | |||
| MAC | 8K | |||
| Dimensions (W×D×H) | 440mm x 207mm x 44mm (17.3"×8.1"×1.7") |
|||
| Weight | <5kg | |||
| Input Voltage | AC: 100-240V, 50/60Hz | |||
| MAX. Power | 400W | |||
| PoE | 802.3at/af | |||
| Max. PoE Power | Max capacity: 370W Max capacity for single port: 30W |
|||
| Cooling Fans | 2 | |||
| Operating Temperature | 0°C ~ 40 °C | |||
| Storage Temperature | -40 °C ~ 70 °C | |||
| Operating Humidity | 10% ~ 90% non-condensing | |||
| Storage Humidity | 5% ~ 90% non-condensing | |||
| Indicator | PWR(Green), LNK/ACT(Green), PoE(Orange) | |||
| Working Mode | No | Default(Normal mode) : All ports can communicate with each other. VLAN(Secure mode): Downlink ports can communicate only with uplink ports. EXTEND(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports. |
||
