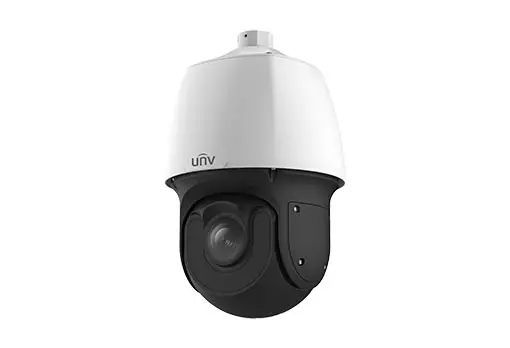

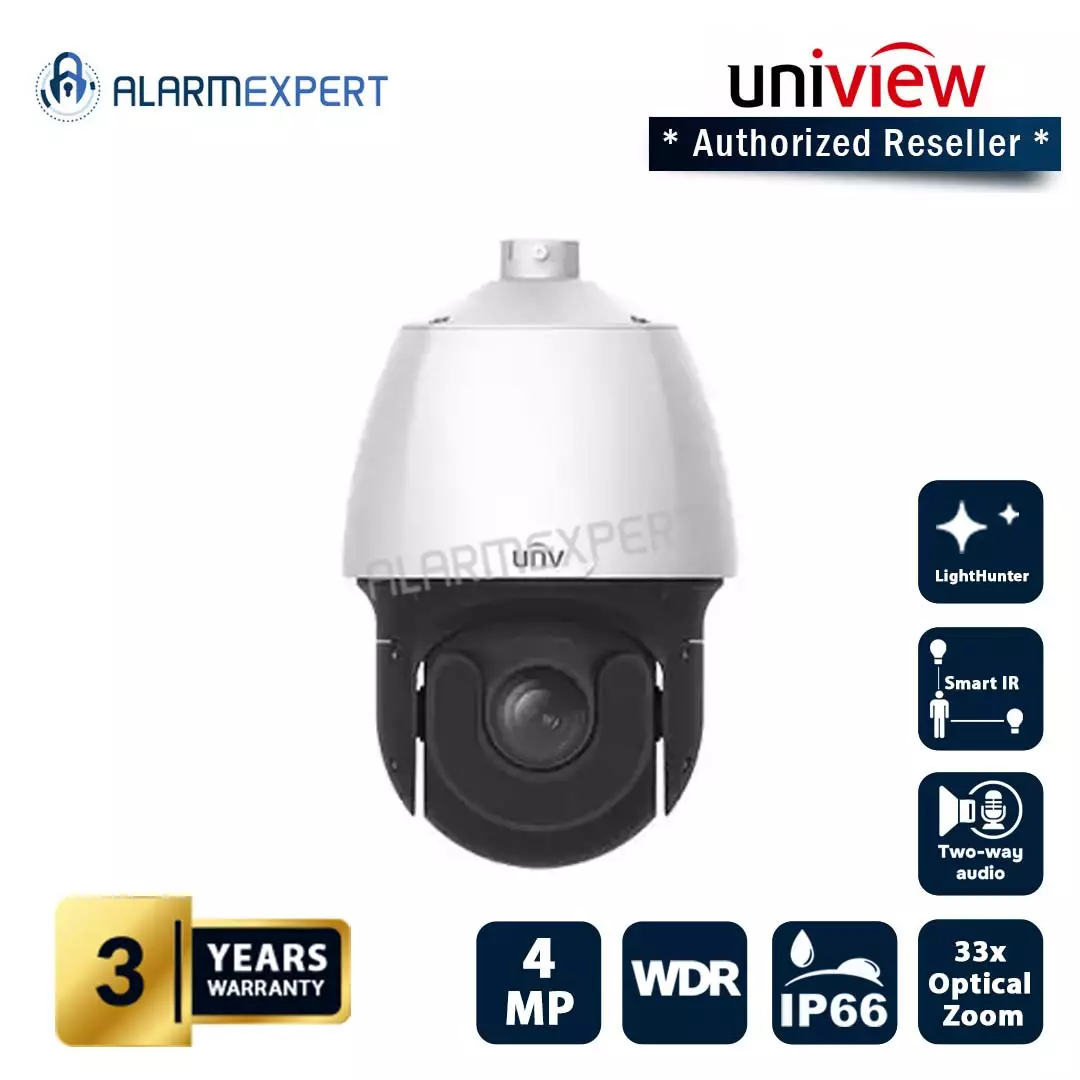

Uniview 4MP 33x Lighthunter Network PTZ Dome Camera IPC6254SR-X33DUP



Features:


Optics

  • Starlight illumination
  • 33x optical zoom
  • Accurate and fast focusing
  • Smart IR, up to 200m(656ft) IR distance
  • EIS (Electronic Image Stabilization)


Compression

  • 4 Megapixel image
  • Ultra 265, H.265, H.264, MJPEG
  • Triple streams
  • Customized OSD


Network

  • ONVIF Conformance

Structure

  • Innovative snow-removing functionality
  • Intelligent temperature control technology
  • 6KV surge protection designed for network interface
  • More effective heat dissipation system
  • IP66



Specifications:

  IPC6254SR-X33DUP
Camera
Sensor 1/2.8", 4.0 megapixel, progressive scan, CMOS
Lens 4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens
Digital Zoom 16
Optical Zoom 33
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
4.5 101.3(332.2ft) 40.5(132.9ft) 20.3(66.4ft) 10.1(33.2ft)
148.5 3341.3(10962.1ft) 1336.5(4384.8ft) 668.3(2192.4ft) 334.1(1096.2ft)
Angle of View (H) 52.4° ~ 2.2°
Angle of View (V) 40.5° ~ 1.7°
Angle of View (O) 64.4° ~ 2.6°
Shutter Auto/Manual; shutter time: 1 ~ 1/100000s
Minimum Illumination Colour: 0.003 lux (F1.5,AGC ON)
0 lux with IR
Iris Auto/Manual; F1.5 ~ F4.0
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR range Up to 200m(656ft)
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream: 4MP (2688*1520), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps
HLC Supported
BLC Supported
EIS Supported
OSD Up to 8 OSDs
Privacy Mask Up to 24 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Smart
General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711
Two-way audio Supported
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Pan & Tilt
Pan Range 360° (endless)
Pan Speed 0.1°/s ~ 240°/s
Preset speed:300°/s
Tilt Range -15° ~ 90° (auto reverse)
Tilt Speed 0.1° ~ 160°/s
Preset speed: 240°/s
Number of Presets 1024
Patrol Preset patrol, route patrol, recorded patrol
Home Position Supported
Interface
Audio I/O Audio cable
1 Input: impedance 35kΩ; amplitude 2V [p-p]
1 Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O 2/1
Serial Port 1 RS485
Network 1 RJ45 10M/100M Base-TX Ethernet
Video Output N/A
General
Power AC 24V±25%, DC 24V±25%, PoE (PSE required)
Power consumption: 54W Max
Dimensions (Ø x H) Ø227 x 359.4mm (Ø8.9” x 14.1”)
Weight 5.6Kg（12.3lb）
Working Environment -40°C ~ 65°C (-40°F ~ 149°F), Humidity: ≤95% RH (non-condensing)
Ingress Resistant IP66
Reset Button Supported
