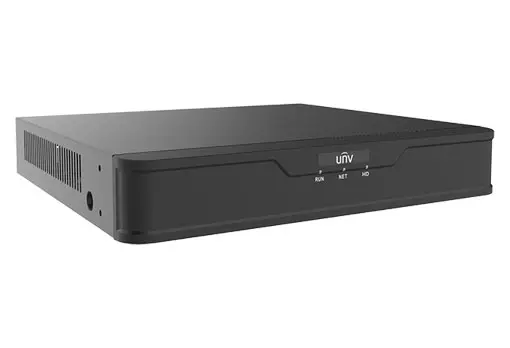

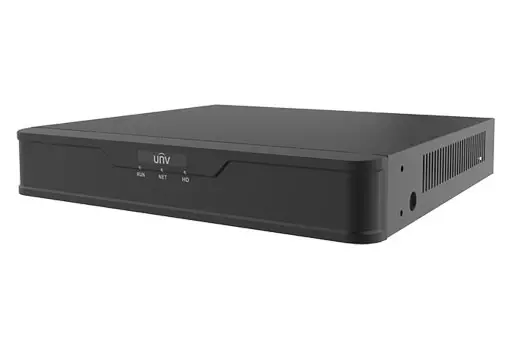

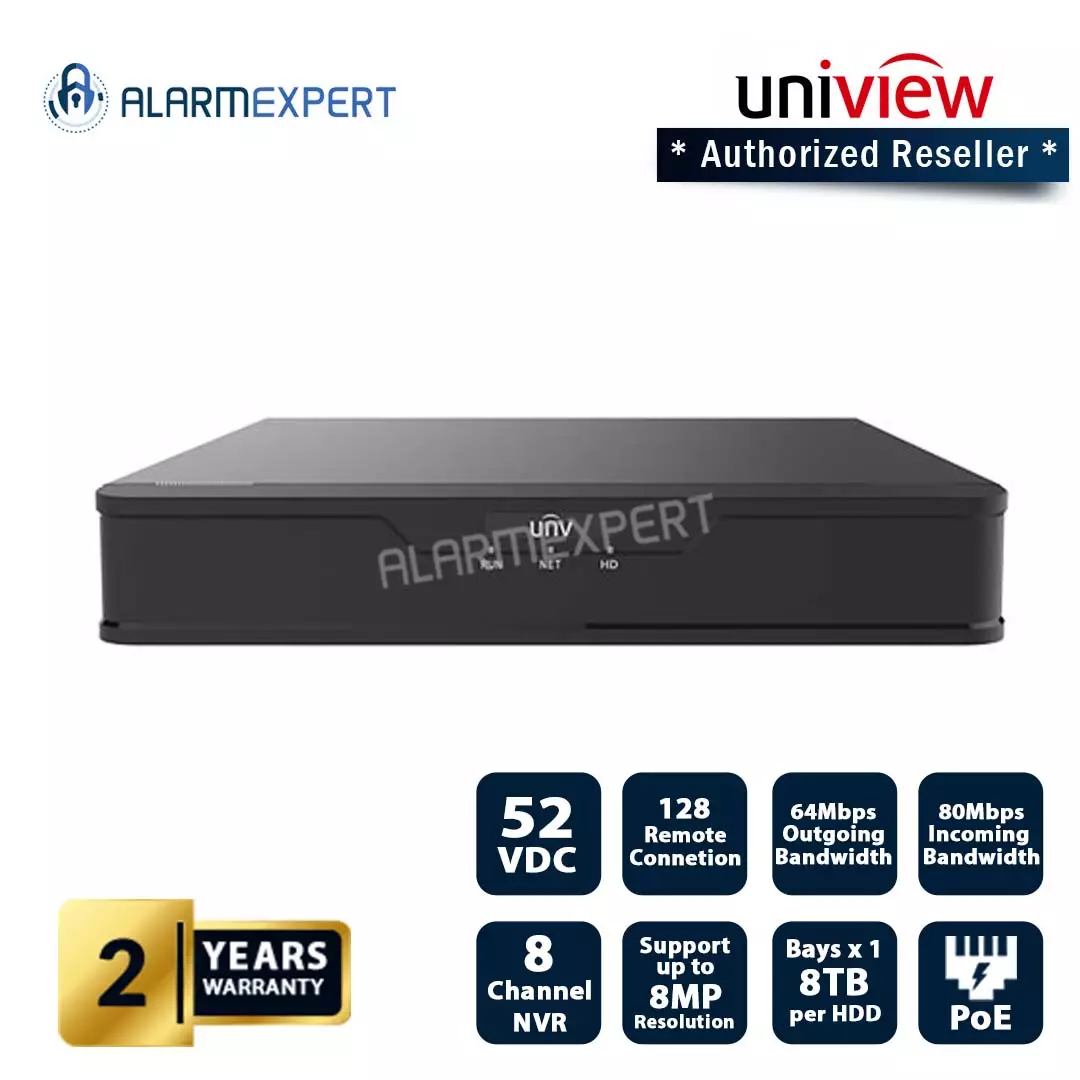

Uniview 8 Channel 1-SATA Ultra 265/H.265/H.264 NVR NVR301-08E2-P8
* FIND A CHEAPER PRICE WE WILL BEAT IT BY 1% TO 5%
- NVR301-08E2-P8
- CCTV, BRANDS
- Click Here
Uniview 8- Channel 1-SATA Ultra 265/H.265/H.264 NVR NVR301-08E2-P8
Features:
- Support Ultra 265/H.265/H.264 video formats
- 8-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
- HDMI and VGA simultaneous output
- Up to 8MP resolution recording
- 1 SATA HDD up to 8TB
- Support cloud upgrade
Specifications:
| Model | NVR301-08E2-P8 | |
| Video/Audio Input | ||
| IP Video Input | 8-ch | |
| Two-way Audio Input | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 80Mbps | |
| Outgoing Bandwidth | 64Mbps | |
| Remote Users | 128 | |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, SMTP, NTP, SNMP, RTSP, IPv4, IPv6, ONVIF | |
| Video/Audio Output | ||
| HDMI/VGA Output | HDMI: 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | 8-ch | |
| Corridor Mode Screen | 3/4/5/7/9 | |
| Decoding | ||
| Decoding format | Ultra 265/H.265/H.264 | |
| Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Capability | 1x 4K@30, 1x 5MP@30, 2x 4MP@30, 2 x 3MP@30, 4 x 1080p@30 | |
| Hard Disk | ||
| SATA | 1 SATA interface | |
| Capacity | up to 8TB for each disk (environment temperature should be below 30°C) | |
| Smart | ||
| VCA Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Object Left Behind, Object Removed | |
| VCA Search | Face search, Behavior search | |
| Statistical Analysis | People counting | |
| External Interface | ||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |
| USB Interface | Rear panel: 1 x USB2.0, 1 x USB3.0 | |
| PoE | ||
| Interface | 8 RJ45 self-adaptive Ethernet Interface | |
| Max Power | Max 30W for single port Max 75W in total | |
| Supported Standard | IEEE 802.3at, IEEE 802.3af | |
| General | ||
| Power Supply | 52V DC Power Consumption: ≤9 W (without HDD) |
|
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) | |
| Dimensions (W×D×H) | 260mm × 240mm × 47mm (10.2"×9.4"×1.9 ") | |
| Weight (without HDD) | 1kg (2.20 lb) | |
