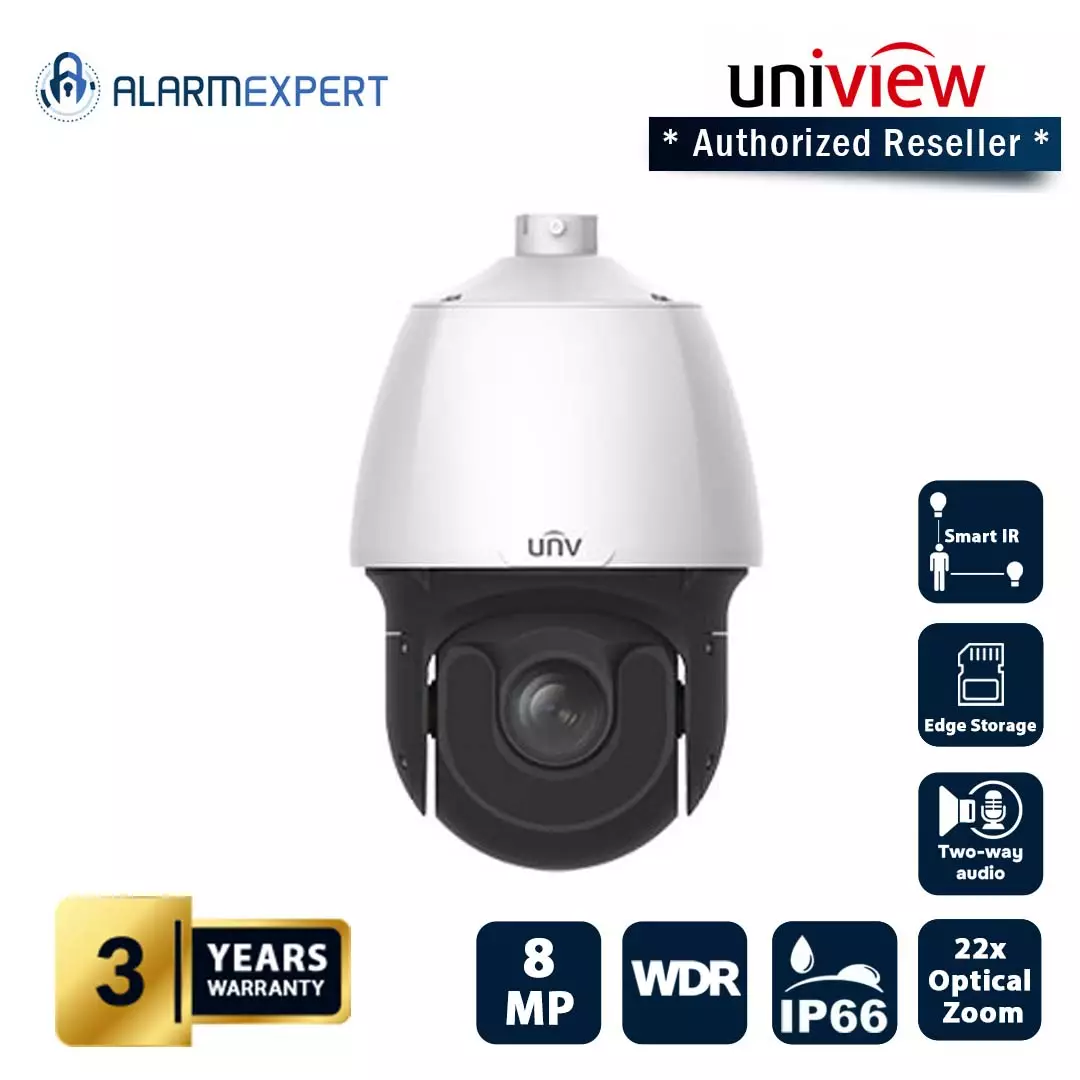

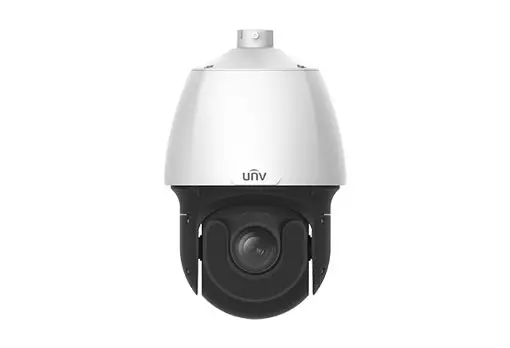

Uniview 8MP Network IR PTZ 22x Optical Zoom Dome Camera IPC6258SR-X22DUP
Out of stock
* FIND A CHEAPER PRICE WE WILL BEAT IT BY 1% TO 5%
Uniview 8MP Network IR PTZ 22x Optical Zoom Dome Camera IPC6258SR-X22DUP
Overview:
Optics
- 22X Optical Zoom
- Fifth-generation infrared technology, more than 200m (656ft) IR distance
- IR anti-reflection window to increase the infrared transmittance
- Optical glass window with higher light transmittance
- Smart IR
- EIS (Electronic Image Stabilization)
Compression
- 8 Megapixel image
- Ultra 265,H.265, H.264, MJPEG
- Triple streams
- Customized OSD
Network
- ONVIF Conformance
Structure
- Innovative snow-removing functionality
- Intelligent temperature control technology
- More effective heat dissipation system
- IP66
Specifications:
| Camera | IPC6258SR-X22DUP | ||||||
| Sensor | 1/1.8", progressive scan, 8megapixel, CMOS | ||||||
| Lens | 6.5~ 143 mm (22x optical zoom) , AF automatic focusing and motorized zoom lens | ||||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | ||
| 6.5mm | 146.3 | 58.5 | 29.3 | 14.6 | |||
| 143mm | 3217.5 | 1287 | 643.5 | 321.8 | |||
| Angle of View (H) | 58.9°~3.4° | ||||||
| Angle of View (V) | 35.2°~1.9° | ||||||
| Angle of View (O) | 72.5°~4.1° | ||||||
| Shutter | Auto/Manual, shutter time: 1 ~ 1/100000 s | ||||||
| Minimum Illumination | Colour: 0.003 lux (F1.5,AGC ON) 0 lux with IR |
||||||
| Iris | Auto, F1.5 ~ F3.4 | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| S/N | >56 dB | ||||||
| IR Range | UP to 200m (656ft) | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120dB | ||||||
| Video | |||||||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||||
| Frame Rate | Main Stream:8MP(3840 × 2160): Max.30fps, 2MP(1920×1080)@30fps； Sub Stream:2MP(1920×1080) : Max. 30fps； Third Stream: D1 (720×576): Max. 30fps |
||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| EIS | Supported | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 24 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Smart | |||||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||||
| Audio | |||||||
| Audio Compression | G.711 | ||||||
| Two-way Audio | Supported | ||||||
| Suppression | Supported | ||||||
| Sampling Rate | 8 KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 256 GB | ||||||
| Network Storage | ANR | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | ||||||
| Compatible Integration | ONVIF(Profile S, Profile G, Profile T),API | ||||||
| Pan & Tilt | |||||||
| Pan Range | 360° | ||||||
| Pan Speed | 0.1°/s ~ 200°/s | ||||||
| Preset speed: 300°/s | |||||||
| Tilt Range | –15° ~ +90° (auto reverse) | ||||||
| Tilt Speed | 0.1° ~200°/s | ||||||
| Preset speed: 240°/s | |||||||
| Number of Presets | 1024 | ||||||
| Patrol | Preset patrol, route patrol, recorded patrol | ||||||
| Home Position | Supported | ||||||
| Interface | |||||||
| Audio I/O | Audio cable | ||||||
| 1 Input: impedance 35 kΩ; amplitude 2 V *p-p] | |||||||
| 1 Output: impedance 600 Ω; amplitude 2 V *p-p] | |||||||
| Alarm I/O | 1 / 1 | ||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||
| General | |||||||
| Power | 24 V AC±25%, 24 V DC±25%, PoE(PSE Required) | ||||||
| Power consumption: 60W | |||||||
| Dimensions (Ø x H) | Ø227x359.4 mm (Ø8.9” x 14.2”) | ||||||
| Weight | 5.55 kg (12.24 lb) | ||||||
| Working Environment | –40°C ~ +70°C (-40°F ~ 158°F), Humidity: ≤95% RH(non-condensing) | ||||||
| Ingress Protection | IP66 | ||||||
| Reset Button | Supported | ||||||
