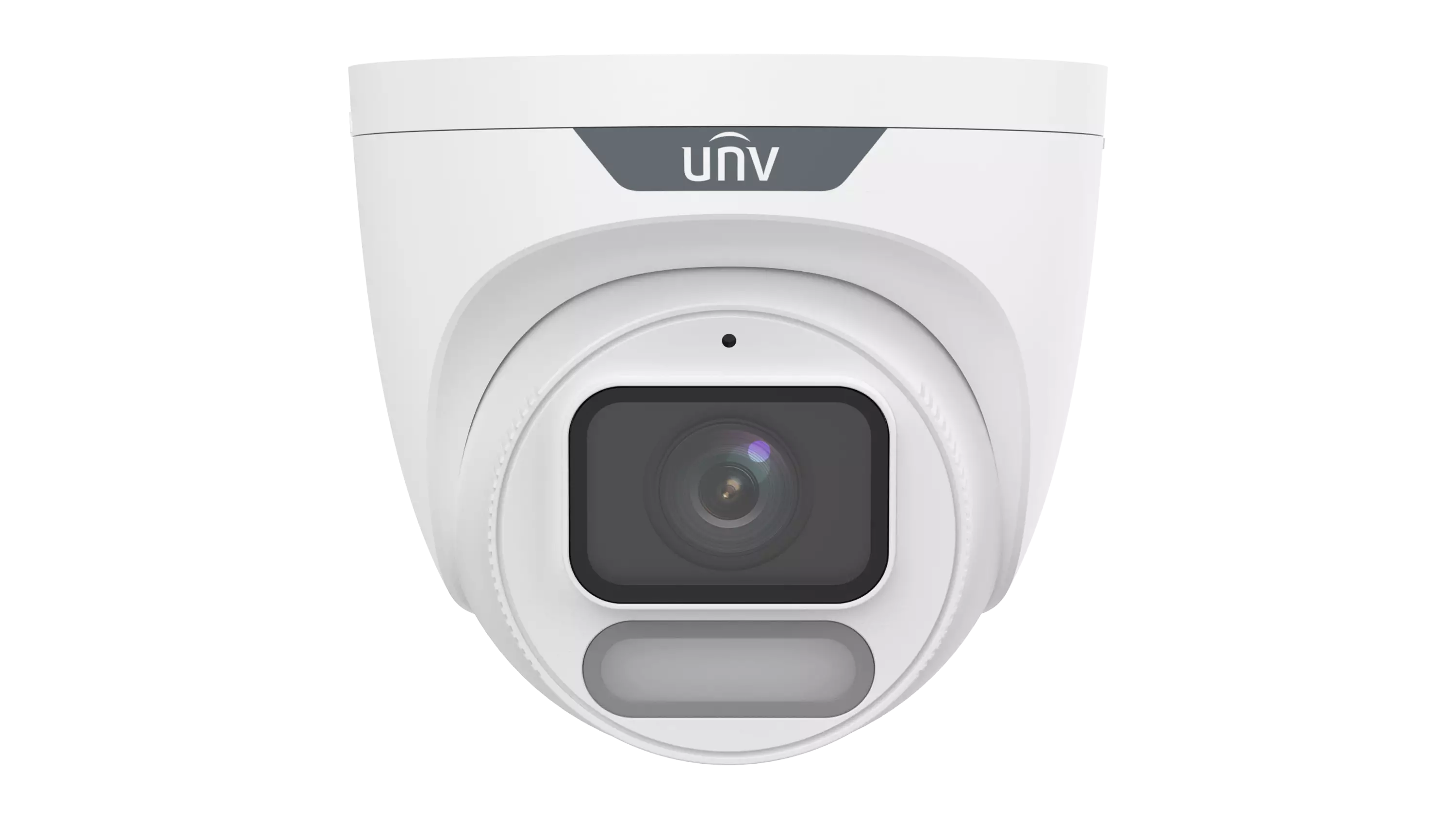

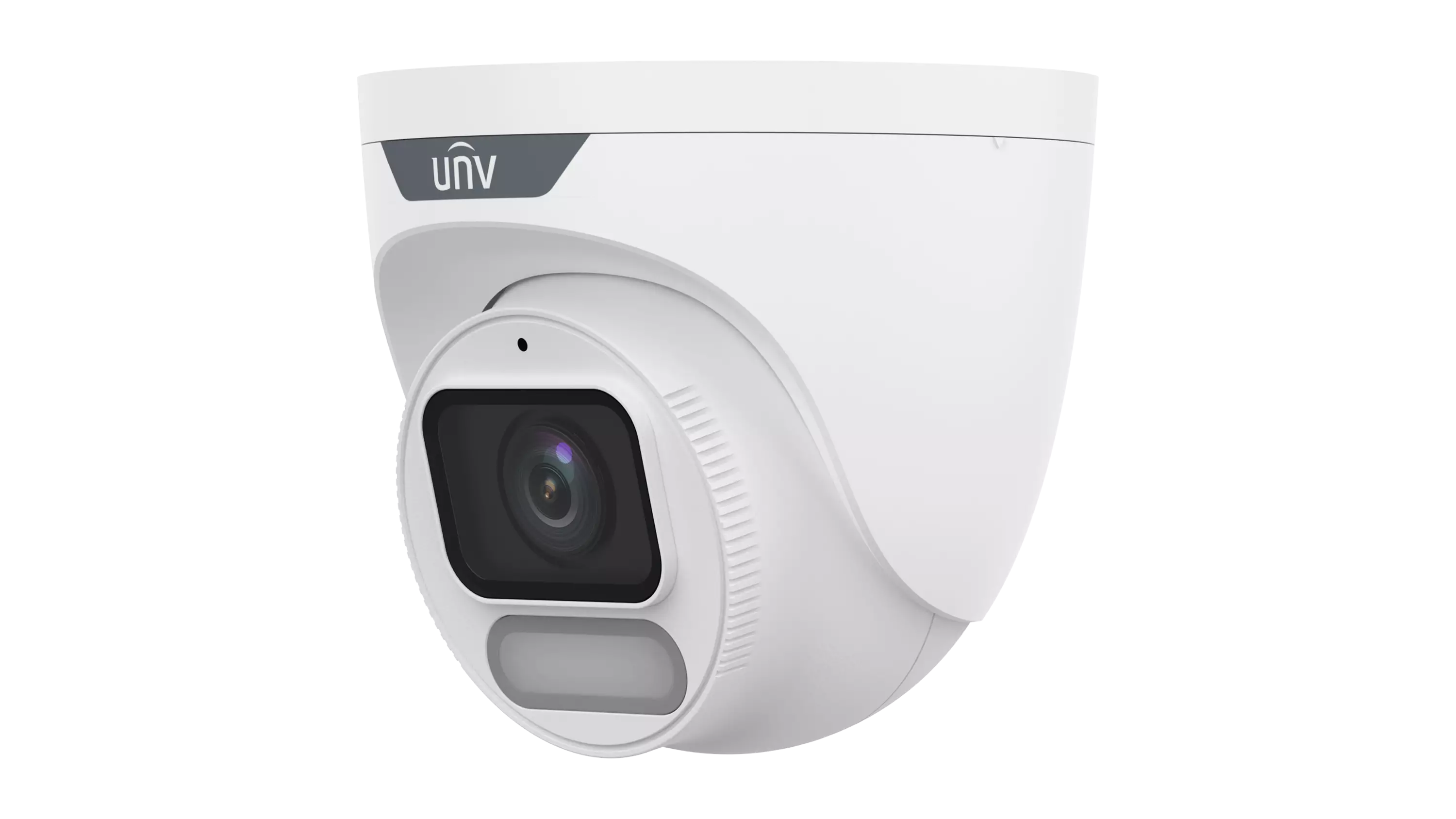

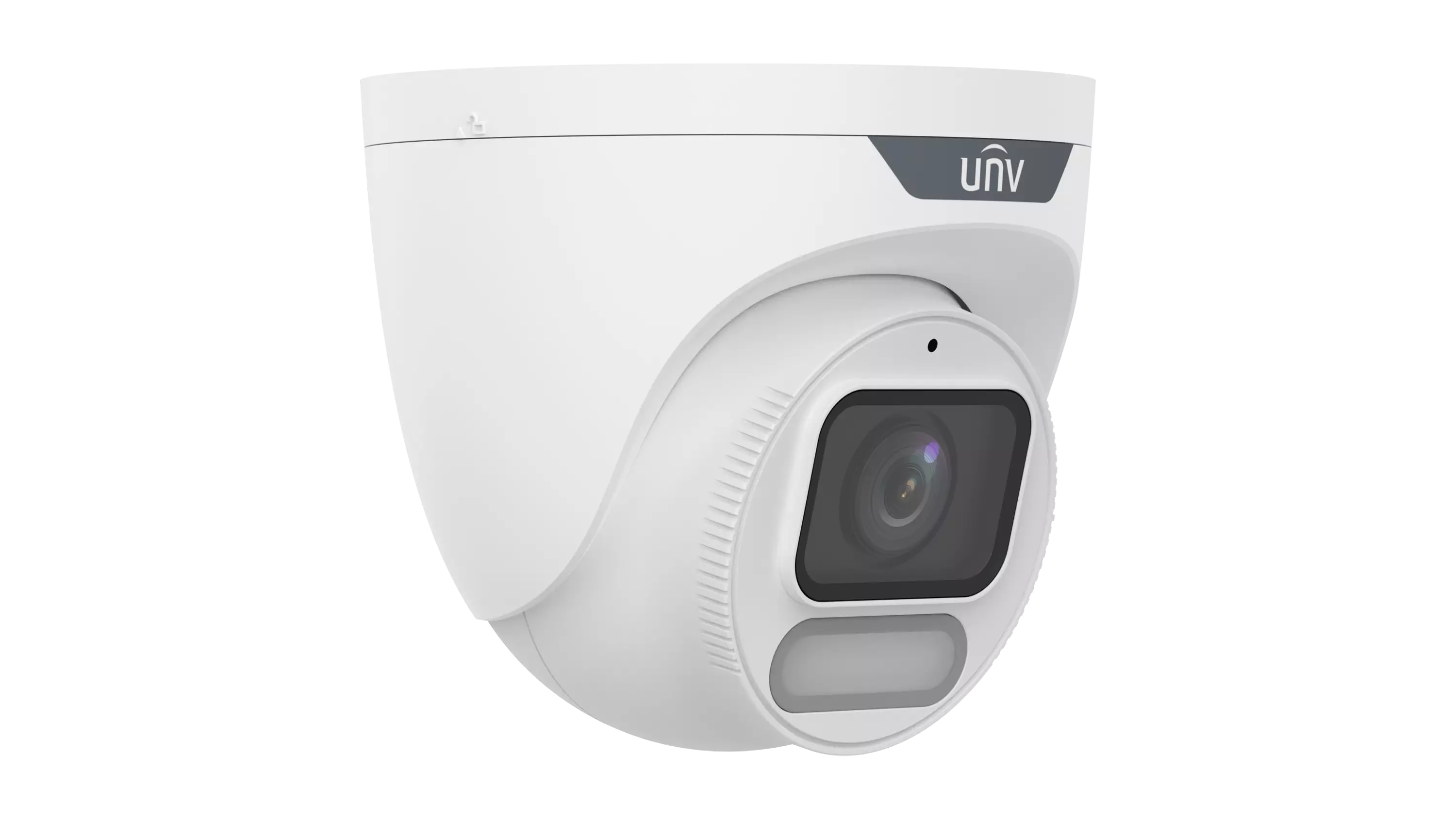

Uniview 4MP Owlview Series Turret Network Camera IPC3624LE-ADF28K-WP



Features:



  •  High quality image with 4MP, 1/1.8" CMOS sensor and F1.0 large aperture lens
  •  4MP (2688 × 1520)@25/20 fps; 4MP (2560 × 1440)@25/20 fps; 3MP (2304 × 1296)@30/25 fps; 2MP (1920 × 1080)@30/25 fps
  •  Ultra 265, H.265, H.264, MJPEG
  •  Support ColorHunter with Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely low-light scenes
  •  120 dB true WDR technology enables clear image in strong light scene
  •  Support 9:16 Corridor Mode
  •  Built-in Mic
  •  White Light, up to 30 m (98 ft) warm light distance
  •  Supports up to 512 GB Micro SD Card
  •  IP67 protection
  •  Support PoE power supply
  •  3-Axis



Specifications:

  IPC3624LE-ADF28K-WP
Camera
Max Resolution 4 MP
Sensor 1/1.8" CMOS
Min. Illumination Colour: 0.0003 lux (F1.0, AGC ON)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360°
S/N >52 dB
WDR 120 dB
Lens
Focal Length 2.8 mm
Iris Type Fixed
Iris F1.0
Field of View (H) 124.3°
Field of View (V) 61.4°
Field of View (D) 135°
DORI
DORI Distance (Lens) 2.8mm
DORI Distance (Detect) 43.4m(142.5.7ft)
DORI Distance (Observe) 17.4(57.0ft)
DORI Distance (Recognize) 8.7(28.5ft)
DORI Distance (Identify) 4.3(14.3ft)
Illuminator
Supplemental Light Warm light
Illumination Distance (Warm Light) 30 m (98.4 ft)
Light On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps
Video Bit Rate 128 Kbps to 6144 Kbps
U-code Support
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Support
Video Stream Dual streams
White Balance Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction 2D/3D DNR
Smart Illumination Support
Flip Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping N/A
HLC Support
BLC Support
Defog Digital defog
Events
Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Intelligent
Smart Intrusion Prevention (Lite) Intrusion, crossline detection (both detection are based on human body and vehicle detection)
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio N/A
Suppression Support
Sampling Rate 8 kHz
Storage
Edge Storage Micro SD, up to 512 GB
Network Storage ANR, NAS (NFS)
Network
Protocols IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T),
API, SDK
User/Host Up to 32 users, 2 user levels: administrator and common user
Security Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client UNV-Link, UNV-Link Pro, EZStation
Web Browser Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O N/A
Alarm I/O N/A
Serial Port N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI N/A
Network 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output N/A
Certification
EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
FCC (FCC 47 CFR part15 B)
Safety CE LVD (EN 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection IP67 (IEC 60529)
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption Max 2.8W
Power Interface Ø5.5 mm coaxial power plug
Dimensions Ø118 x 106mm (Ø4.6” x 4.2”) (Ø x H)
Weight 0.48kg(1.06lb)
Material Metal + Plastic
Working Environment -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection 4 KV
Reset Button Support
Web Client Language 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian
