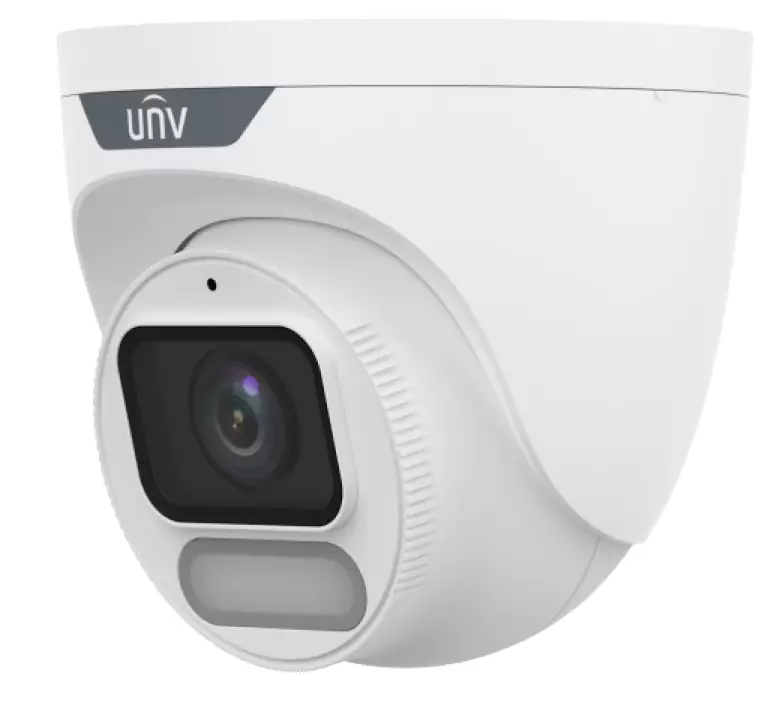

Model | IPC3628LE-ADF28K-WP | |
Camera | ||
Max Resolution | 8 MP | |
Sensor | 1/1.8" CMOS | |
Min. Illumination | Colour: 0.0003 lux (F1.0, AGC ON) | |
Shutter | Auto/Manual, 1 ~ 1/100000s | |
Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° | |
S/N | >52 dB | |
WDR | 120 dB | |
Lens | ||
Focal Length | 2.8 mm | |
Iris Type | Fixed | |
Iris | F1.0 | |
Field of View (H) | 111.0° | |
Field of View (V) | 63.0° | |
Field of View (D) | 131.0° | |
Lens Type | Fixed | |
DORI | ||
DORI Distance (Lens) |
2.8mm | |
DORI Distance (Detect) |
63.0 (206.7ft) | |
DORI Distance (Observe) |
25.2 (82.7ft) | |
DORI Distance (Recognize) |
12.6 (41.3ft) | |
DORI Distance (Identify) |
6.3 (20.7ft) | |
Illuminator | ||
Supplemental Light |
Warm light | |
Illumination Distance (Warm Light) |
30 m (98.4 ft) | |
Light On/Off Control |
Auto/Manual | |
Video | ||
Video Compression |
Ultra 265, H.265, H.264, MJPEG | |
H.264 Code Profile | Baseline profile, Main profile, High profile | |
Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; |
|
Video Bit Rate | 128 Kbps to 6144 Kbps | |
U-code | Support | |
OSD | Up to 4 OSDs | |
Privacy Mask | Up to 4 areas | |
ROI | Support | |
Video Stream | Dual Streams | |
Image | ||
White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |
Digital Noise Reduction |
2D/3D DNR | |
Smart Illumination | Support | |
Flip | Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | |
Dewarping | N/A | |
HLC | Support | |
BLC | Support | |
Defog | Digital Defog | |
Image Stabilization |
N/A | |
Events | ||
Basic Detection | Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection | |
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication |
|
Intelligent | ||
Smart Intrusion Prevention (Lite) |
Intrusion, Crossline Detection (Both detection are based on human body and vehicle detection) | |
Audio | ||
Audio Compression |
G.711U, G.711A | |
Audio Bitrate | 64 Kbps | |
Two-way Audio | N/A | |
Suppression | Support | |
Sampling Rate | 8 kHz | |
Storage | ||
Edge Storage | Micro SD, up to 512 GB | |
Network Storage | ANR, NAS (NFS) | |
Network | ||
Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
|
User/Host | Up to 32 users, 2 user levels: administrator and common user | |
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
|
Client | UNV-Link, UNV-Link Pro, EZStation | |
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
|
Interface | ||
Audio I/O | N/A | |
Alarm I/O | N/A | |
Serial Port | N/A | |
Built-in Mic | Support | |
Built-in Speaker | N/A | |
WIFI | N/A | |
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |
Video Output | N/A | |
Certification | ||
EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
|
Safety | CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
|
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); | |
Protection | IP67 (IEC 60529) | |
General | ||
Power | DC 12V±25%, PoE (IEEE 802.3af) | |
Power Consumption |
Max 3.9W | |
Power Interface | Ø5.5 mm coaxial power plug | |
Dimensions | Ø118 x 106mm (Ø4.6” x 4.2”) (Ø x H) | |
Weight | 0.48kg(1.06lb) | |
Material | Metal + Plastic | |
Working Environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |
Storage Environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |
Surge Protection | 4 KV | |
Reset Button | Support | |
Web Client Language |
13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian |
