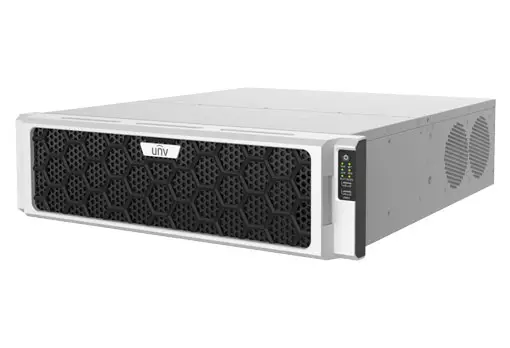

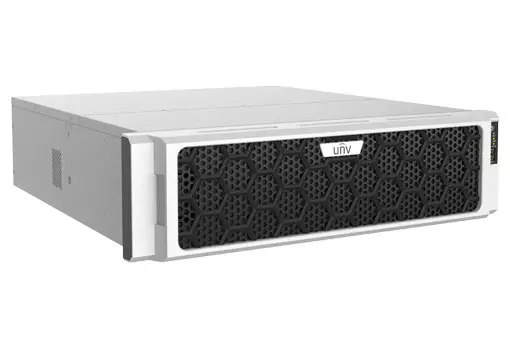

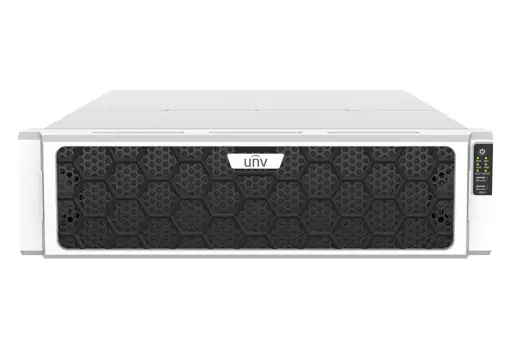

Uniview Pro 128CH Ai NVR Up to 12mp 512Mbps Input 16x SATA HDD Port Up To 16TB Each 240VAC

free-shipping Chat with us now to check the stock.
Login to See Better Price
* FIND A CHEAPER PRICE WE WILL BEAT IT BY 1% TO 5%
  • * Please contact us about stock information
  • NVR816-128-R-IM2-8G
  • CCTV, BRANDS

Uniview Pro 128CH Ai NVR Up to 12mp 512Mbps Input 16x SATA HDD Port Up To 16TB Each 240VAC



Features:

  • Support Ultra 265/H.265/H.264 video formats
  • 128-channel input
  • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
  • HDMI1, HDMI2 and VGA independent outputs provided
  • Up to 12 Megapixels resolution recording
  • Redundant power supply optional
  • Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
  • 16 SATA HDDs, up to 16TB for each HDD
  • Support 2 miniSAS Interfaces
  • Support 12V power output
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support Video Metadata
  • Support cloud upgrade
  • Support N+1 Hot spare



Specifications:

Decoding Description
Decoding Format Ultra 265, H.265, H.264
Decoding Capability 2 x 12MP@30, 4 x 4K@30, 5 x 6MP@30, 6 x 6MP@25, 7 x 5MP@25, 8 x 4MP@30, 10 x
3MP@30, 16 x 1080P@30, 36 x 720P@30, 64 x D1
Decoding Capability Description *. The resolution of each channel cannot exceed 4096 pixels in length or width.; *. For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page.
Audio Compression G.711A, G.711U
Network Description
Incoming Bandwidth 512Mbps
Outgoing Bandwidth 512Mbps
Remote Users 128
Protocols TCP/IP; P2P;    UPnP;    NTP;    DHCP;    PPPoE;    HTTP;    HTTPS;    DNS;    DDNS; SNMP; SMTP; NFS; 802.1x;    IPv6; IPv4
Browser(Plugin) Windows: IE (IE10/ 11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above)
Video/Audio Input Description
IP Video Input
NVR816-128-R-IM2-8G:128-ch
RCA Audio Input 1-ch
Video/Audio Output Description
Video Output Support 2-ch HDMI, 1-ch VGA, HDMI1 and HDMI2 and VGA independent output
HDMI Output 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz,
1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz,
1024x768/60Hz
RCA Audio Output 1-ch
Liveview Display VGA: 1/4/6/8/9/16/25/36; HDMI: 1/4/6/8/9/16/25/36/64
Corridor Mode Screen 3/4/5/7/9/10/12/16/32
Two-way Audio Description
Two-way Audio 1-ch, RCA (Using the audio input and output)
Snapshot Description
FTP/Schedule/Event Snapshot
NVR816-128-R-IM2-8G:128-ch snapshot, up to 4K resolution
Recording Description
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local 16-ch
Smart Description
VCA Detection by IPC Face Detection; face detection; Vehicle Detection; SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area); Ultra Motion Detection (UMD); Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection); People Counting (People Flow Counting, Crowd Density Monitoring); Video Metadata;  Traffic Monitoring
Smart by NVR Face Detection; face detection; Smart Intrusion Prevention (SIP); Video Metadata;    (At same channel, only one smart function by NVR can be enabled simultaneously)
VCA Search Motor Vehicle Search; Non-Motor Vehicle Search; Human Body Search; General Search; People Counting Report
Smart by IPC All channels (up to 64 images/s in total) Face Detection, face detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
Search by Image Support
Vehicle Picture Library Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
SIP by NVR
NVR816-128-R-IM2-8G:96-ch
Video Metadata by NVR
NVR816-128-R-IM2-8G:96-ch
Video Metadata Type by NVR Motor Vehicle: Vehicle Color, Vehicle Type, Vehicle Brand, Direction.; Non-Motor Vehicle: Non-Motor Vehicle Type, Direction, Gender, Age, Upper Garment Length.; Human Body: Gender, Age, Mask, , Bag Style, Direction, Upper Garment Length, Lower Garment Length.
Alarm Description
General Alarm Defocus Detection; Scene Change Detection; Object Left Behind; Object Removed; Auto Tracking; Motion Detection; Tampering; Human Body Detection; Video Loss; Audio Detection; Alarm Input
Alert Alarm IP Conflict; Network Disconnected; Disk Offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal; High CPU Temperature; High Motherboard Temperature; Array Damaged; Array Degraded
GUI Language Description
GUI Language 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk Description
SATA 16 SATA Interfaces
Capacity Up to 16TB for each HDD (The maximum HDD capacity varies with environment temperature)
Disk Group Support
Redundant Storage Support
Disk Array Type RAID 0, 1, 5, 6, 10, 50, 60
Hot Swap Support
External Interface Description
Network Interface 4 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
USB Front panel: 2 x USB2.0; Rear panel: 2 x USB3.0
RS485 1
RS232 1
Alarm In 24-ch
Alarm Out 8-ch
eSATA 1
miniSAS 2
Extension Board 2
Power Output 12V
Power Supply AC 100  ~ 240 V
Power Switch Support
Redundant Power Supply Support
Working Environment Description
Working Temperature -10 °C ~ 50 °C (14 °F ~ 122 °F)
Working Humidity ≤ 90% RH (non-condensing)
Power Consumption (without HD D) ≤200W
Dimensions Description
Weight (without HDD) 12KG
Height 3U
Dimensions 482mm × 559mm × 131mm (19.0" × 22.0" × 5.1" )
Certification Description
Certification CE; FCC; UL; RoHS; WEEE
CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC Part15 Subpart B
