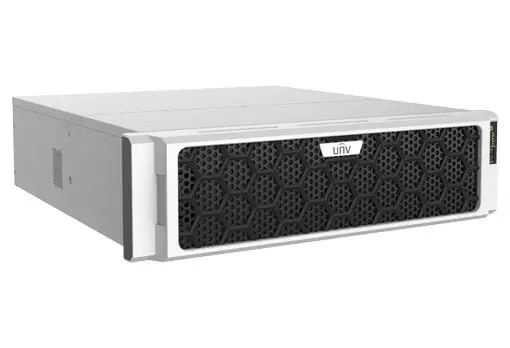

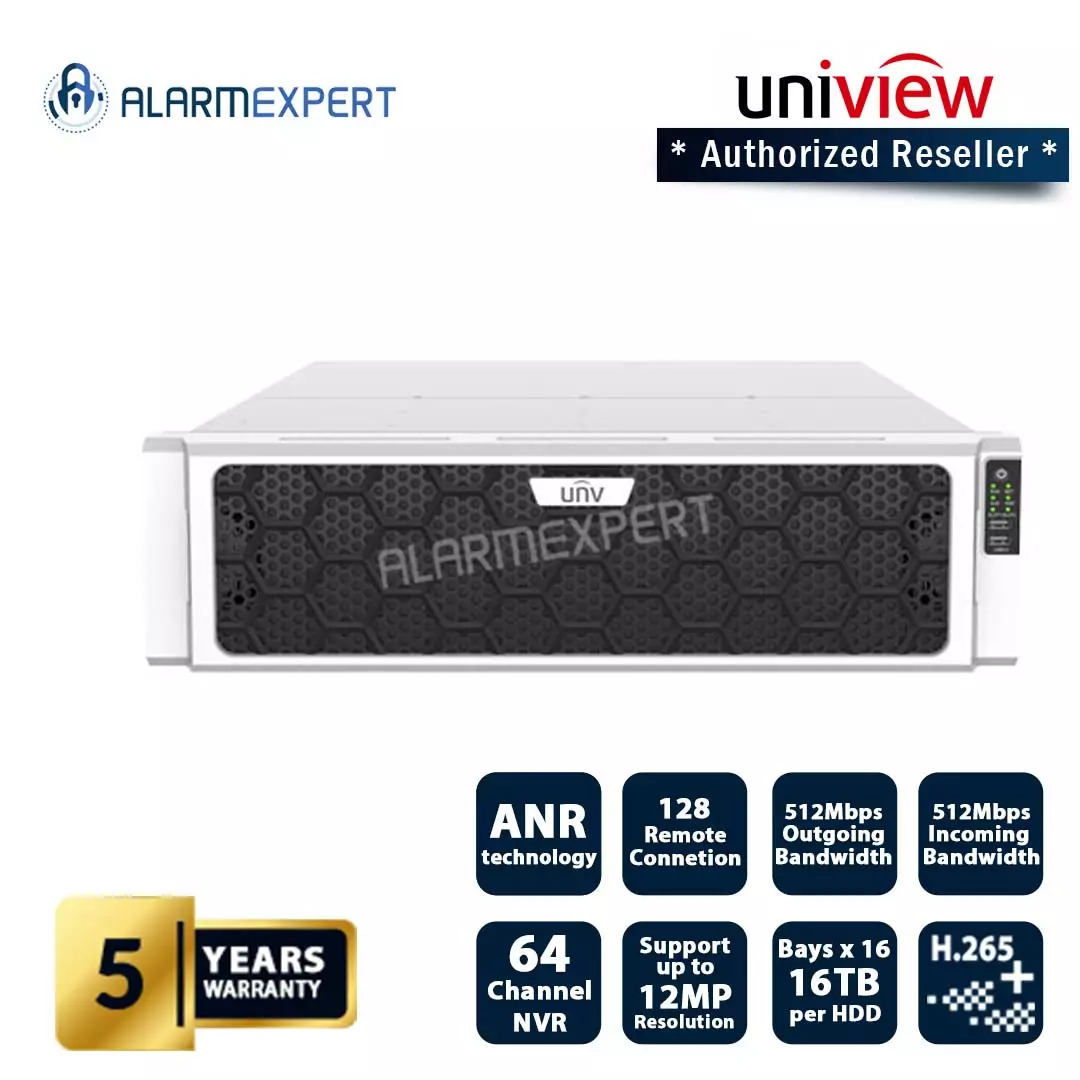

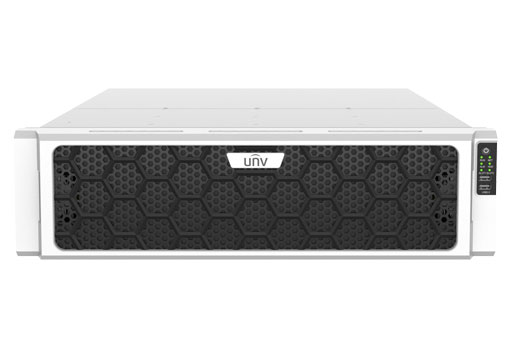

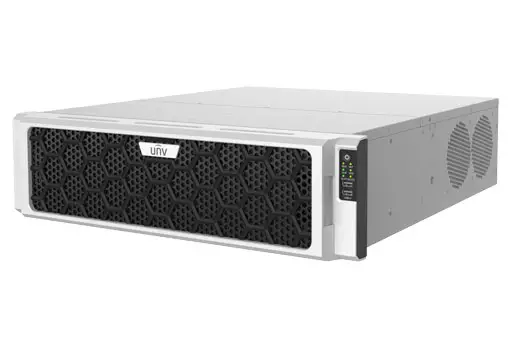

Uniview Pro Series 64 Channel UP TO 12MP - NVR816-64
Chat with us now to check the stock.
Canberra: Out of Stock
|
Sydney: Out of Stock
|
Brisbane: Out of Stock
|
Melbourne: Out of Stock
|
Perth: Out of Stock
Uniview 64 Channel up to 12MP resolution recording 16 SATA HDDs, up to 16TB for each HDD
* FIND A CHEAPER PRICE WE WILL BEAT IT BY 1% TO 5%
- * Please contact us about stock information
- NVR816-64
- 60
- CCTV, BRANDS
- Click Here
Uniview Pro Series 64 Channel UP TO 12MP
Features:
- Support Ultra 265/H.265/H.264 video formats
- 64/128-channel input
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
- HDMI1, HDMI2 and VGA independent outputs provided
- Up to 12 Megapixels resolution recording
- Redundant power supply optional
- Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
- 16 SATA HDDs, up to 16TB for each HDD
- Support 2 miniSAS Interfaces
- Support 12V power output
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
- Support N+1 Hot spare
Specification:
| Model | NVR816-64 | NVR816-128 |
| Video/Audio Input | ||
| IP Video Input | 64-ch | 128-ch |
| Two-way Audio Input | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 512Mbps | |
| Outgoing Bandwidth | 512Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS | |
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
|
| Video/Audio Output | ||
| HDMI/VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Audio Output | 1-ch, RCA | |
| Audio Compression | G.711A, G.711U | |
| Synchronous Playback | 16-ch | |
| Live View Display | VGA: 1/4/6/8/9/16/25/36 HDMI1, HDMI2: 1/4/6/8/9/16/25/36/64 |
|
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 | |
| Snapshot | ||
| FTP/Schedule/Event Snapshot | 64-ch snapshot, up to 4Kresolution | 128-ch snapshot, up to 4K resolution |
| Decoding | ||
| Decoding Format | Ultra 265, H.265, H.264 | |
| Live View/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Capability | 3 x 12MP@25, 4 x 4K@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1 | |
| Hard Disk | ||
| SATA | 16 SATA interfaces | |
| Capacity | up to 16TB for each HDD (The maximum HDD capacity varies with environment temperature) |
|
| Extension board | 2 | |
| miniSAS | 2 miniSAS ports | |
| eSATA | 1 eSATA interface | |
| Disk Group | Support | |
| Disk Array Type | RAID 0, 1, 5, 6, 10, 50, 60 | |
| Smart | ||
| VCA Detection by IPC | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Vehicle Control, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), Ultra Motion Detection(UMD), Video Metadata, Traffic Monitoring | |
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, Search by Image, People Counting Report |
|
| People Counting | People Flow Counting, Crowd Density Monitoring | |
| Smart Intrusion Prevention (SIP), Vehicle Detection, Temperature Detection, UMD, Video Metadata, Traffic Monitoring by Camera | Total 64-ch | |
| Face Picture Library | Up to 128 face picture libraries, with up to 500,000 face pictures in total | |
| External Interface | ||
| Network Interface | 4 RJ-45 10M/100M/1000M adaptive Ethernet Interface | |
| USB Interface | Front panel: 2 x USB2.0, Rear panel: 2 x USB3.0 | |
| RS232 | 1 | |
| RS485 | 1 | |
| Alarm In | 24-ch | |
| Alarm Out | 8-ch | |
| Power Output | 12V | |
| General | ||
| Power Supply | 100 ~ 240V AC Power Consumption: ≤ 65 W (without HDD) |
|
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) | |
| Dimensions | 533mm × 482mm × 131.0mm (21.0" × 19.0" × 5.1") | |
| Weight (without HDD) | ≤ 12.5 Kg (27.56 lb) | |
| Certification | ||
| Certification | CE, FCC, UL, RoHS, WEEE | |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | |
| FCC | Part15 Subpart B | |
