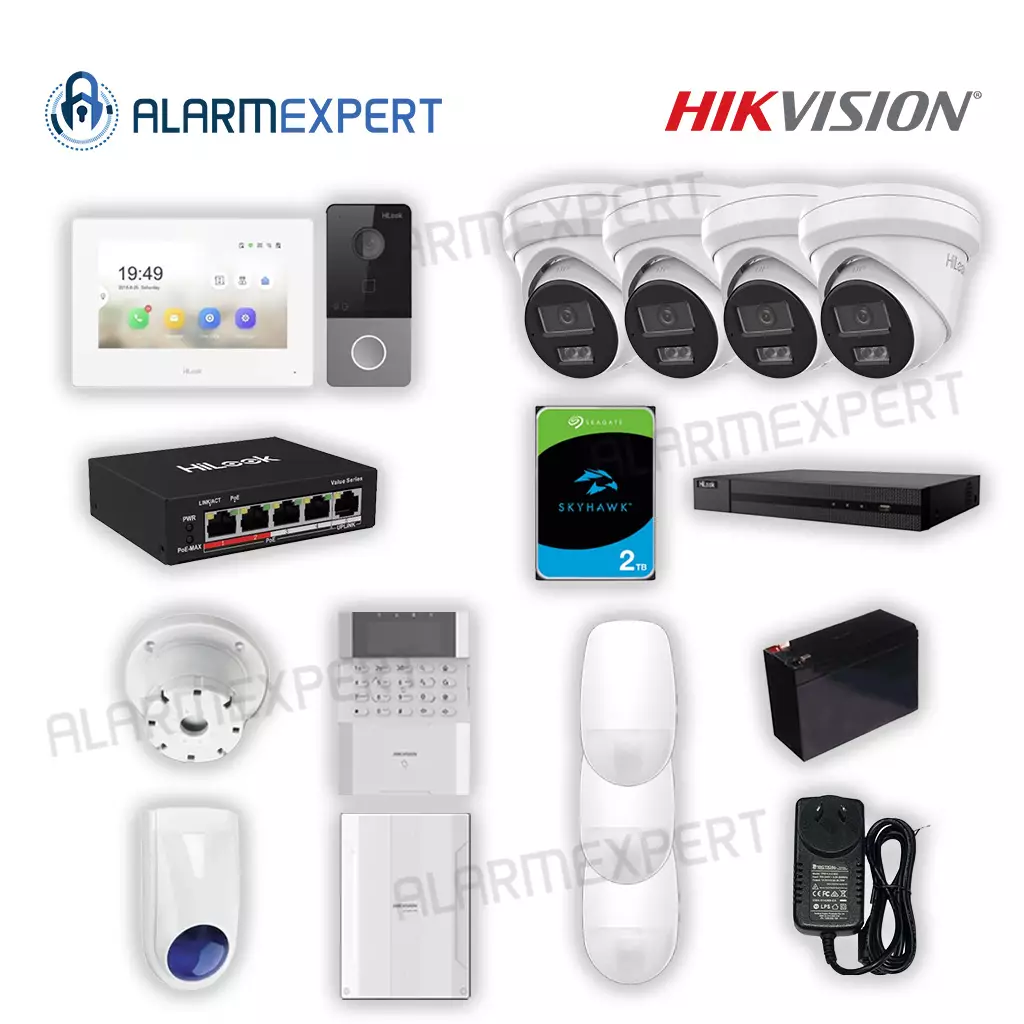

HiLook 3 in 1 Kit With CCTV 4x 6MP, IP Intercom and Alarm Hybrid Pro with 3 PIR

CCTV KIT

4x IPC-T262H-MU HiLook 6 MP Intelligent Dual IR Fixed Turret Network Camera

Features:

•  High quality imaging with 6 MP resolution
•  Support Human and Vehicle Intelligent Detection
•  Dual IR lights to enhance night vision
•  Built-in microphone for real-time audio security
•  Water and dust resistant (IP67)
•  Efficient H.265+ compression technology

Features:

• Up to 4-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
• Up to 40 Mbps incoming bandwidth

1x Seagate Surveillance HDD 2TB 3.5″ Sata

IP Intercom Kit

1x HiLook IP Video Intercom Kit HA-KIT-IP2

Features:

• Convenient Hik-Connect APP Mobile Control
• One call button for easier calls
• Standard PoE power supply
• Including: Door station x1, Indoor station x1, PSU × 2, 32GB TF card x1
• Power adapter included in the package

1x NS-0105P-35 Hilook 4 Port Fast Ethernet Unmanaged POE Switch

Features:

• 4 × 100 Mbps PoE ports, and 1 × 100 Mbps Ethernet port.
• IEEE 802.3at/af standard.
• IEEE 802.3, IEEE 802.3u and IEEE 802.3x standard.
• High priority ports.
• 8-core power supply.
• Up to 250 m transmission distance.
• 6 KV surge protection for PoE ports.
• PoE power management.
• 100 Mbps network access.
• Wire-speed forwarding and non-blocking design.
• Store-and-forward switching.
• Solid high-strength metal shell.
• Reliable fan-free design.

Hikvision Hybrid Pro Kit

1X Hikvision AX Hybrid PRO Control Panel DS-PHA64-LP/NP - 64 Zones

Features:

• • • Hybrid system: 8 on-board zones and 56 wired/wireless zones expandable；4 on-board outputs（2 relay outputs & 2 I/O outputs） and 60 wired/wireless outputs expandable
    • Dual-path communication of alarm events and other signals over LAN, PSTN, Wi-Fi, GPRS, or 3G/4G utilizing a main and backup channel with configurable priority
    • 4-ch onboard IP Camera video verification, supports video recording (5s pre-alarm + 2s post-alarm, or 2s pre-alarm + 5s post-alarm) for verification to the alarm receiving email or mobile client
    • Supports arming/disarming via keypad, keyfob, mobile client, iVMS-4200, SMS, and tag
    • Pushes alarm notification via messages and Hik-Connect
    • Supports ISAPI, Cloud P2P, ISUP, CSV-IP and DC-09 protocol
    • Supports 1 Speed-X BUS.

1XHikvision Wired LCD Keypad DS-PK1-LRT-HWB

Features:

• • • LCD screen display
    • Supports one-touch arm（Arming without password）
    • Supports Fire/Panic/Medical alarm key
    • Supports company name, phone number, time display
    • Supports 2 on-board alarm inputs and 1 onboard alarm output
    • Supports a maximum of 64 keyfobs.

1X POWER SUPPLY TP-TP14.3-2.5APP

Features:

• • • The TP-TP14.3-2.5DC is a wall mounted, light weight and compact power supply with a 100V-240V AC input voltage range.

1X Battery 12V 7Ah CJ12-7

Features:

• • • CJ series is a general-purpose battery with five years of design life in float service.
    • It meets IEC and JIS standards.
    • With updated AGM valve-regulated technology and high-purity raw materials,
    • the CJ series battery has a reliable standby service life. It suits UPS/EPS, medical equipment, emergency lights, and security systems applications.
    • CJ12-7 (12V7Ah).

1x Combo Bell box 12v Siren and Strobe

Features:

• • • Siren tone selectable for different applications
    • Sound volume adjustable: low dB for testing and high dB for normal operation
    • Loud: up to 110dB
    • Bright: new LED strobe design
    • Independent siren and strobe operation
    • High-quality UV-treated case
    • Weatherproof
    • Front and back tampers
    • EOLRs built-in, suitable for most major alarm panels
    • Dimensions 200 x 110 x 70mm.

1X Top Hat Piezo (WP08)

Features:

• • • Surface Mount
    • SPL: 105dB/m
    • Current: 110mA
    • Voltage: 12VDC.

3X Hikvision Wired internal 18m PIR detector DS-PDP18-EG2

 Features:

• • • Modern design - Delivers a small and sleek detection solution; providing a modern yet unobtrusive finish to complement any room.
    • Detection range - Up to 18m volumetric detection coverage, the Ellipse is the ideal solution for any small to large indoor rooms and spaces.
    • Digital temperature compensation – Digitally adjusts its sensitivity to maintain its specified range when the background temperature is close to body temperature.
    • Automatic sensitivity - self-adapts to changing environmental conditions to maintain stability and intruder catch performance.
    • 3D optics - Improves the detection of moving targets; ensuring more precise signals can be received from the PIR by enabling the perfect focusing of the infra-red signal onto the pyro-electric sensor.
    • Creep-zone protection - covers the blind spot area directly below it, where an intruder may have otherwise avoided detection.
    • Selectable EOL resistors - incorporates selectable alarm resistor values of 1K, 2K2, 4K7, 5K6, and 8K2, as well as tamper resistance values of 1K, 2K2, 4K7, and 5K6; catering for most control panels on the market.
    • Wall and ceiling mount options - can be fitted at a mounting height of 1.8m to 2.4m. There is also a ceiling mount option available if required.
    • Anti-insect interference - Protects the detector from possible insect infestation, as well as shields air movement in front of its pyro-electric sensor and protects against adverse reflections from inside the detector housing.
    • Wide voltage - 9 to 16 V wide voltage adaptation with polarity reverse connection protection
    • IFT technology - automatically adjusts the upper and lower alarm trip thresholds when exposed to electromagnetic or electrical interference and shifts the thresholds before the detector goes into a false alarm.
